Front hub/brake для мотоциклов Kawasaki F6 (1973)

Москва и регионы России

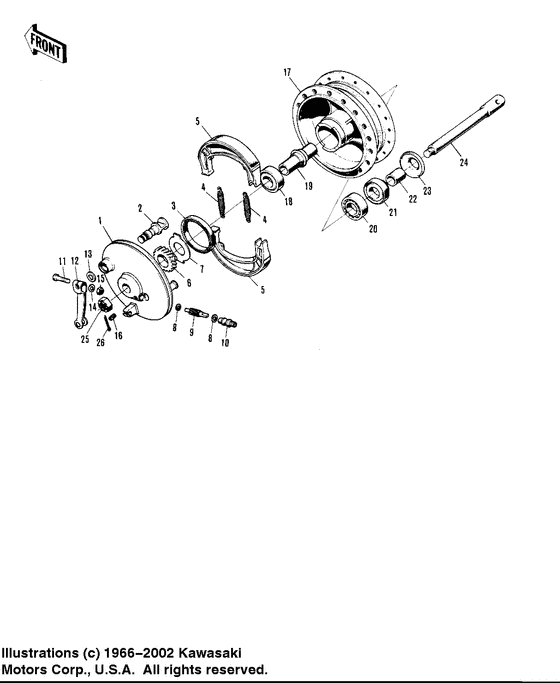

Front hub/brake

Kawasaki F6

Front hub/brake

Front hub/brake

2

3

4

4

5

5

6

7

8

8

9

10

11

12

13

14

15

16

18

19

20

21

22

23

24

25

26

#

oem код

название

цена

2

Вал

Вал

Cam shaft-front brake;

3

Oil seal-f brk panel

Oil seal-f brk panel

Oil seal f brk panel;

4

Spring,brake shoe

Spring,brake shoe

Spring,brake shoe;

5

Shoe-brake

Shoe-brake

замена

superceded

superceded

Shoe,brake;

6

Gear-speedometer

Gear-speedometer

7

Reciever-speed gear

Reciever-speed gear

8

Washer-thrst spd pini

Washer-thrst spd pini

Washer thrst spd pini;

9

Pinion,speedometer

Pinion,speedometer

Pinion speedometer;

10

Bush speedmeter cable

Bush speedmeter cable

11

ボルト(アプセツト)，6x30

ボルト(アプセツト)，6x30

замена

Болт

Болт

12

Lever-front brake cam

Lever-front brake cam

Lever front brake cam;

13

Washer brake cam sht

Washer brake cam sht

14

Шайба

Шайба

замена

Шайба обыкновенная,6MM

Шайба обыкновенная,6MM

Washer plain 6mm;

15

ロツカクナツト，6mm

ロツカクナツト，6mm

замена

Гайка,6MM

Гайка,6MM

Nut 6mm;

16

Screw-bushing net

Screw-bushing net

18

Ball bearing,#6301zc3

Ball bearing,#6301zc3

19

Spacer-fr hub bearing

Spacer-fr hub bearing

Spacer fr hub bearing;

20

Ball bearing,#6301c3

Ball bearing,#6301c3

21

Oil seal-fr brk drum

Oil seal-fr brk drum

Oil seal fr brk drum;

22

Collar front hub r.h

Collar front hub r.h

23

Dust shield fr brake

Dust shield fr brake

24

Axle-front

Axle-front

25

Nut,castle,12mm

Nut,castle,12mm

замена

NUT CASTLE 12MM

NUT CASTLE 12MM

26

ワリピン，3.0x25

ワリピン，3.0x25

замена

Шпонка,3.0X25

Шпонка,3.0X25

Pin cotter 3.0x25;
