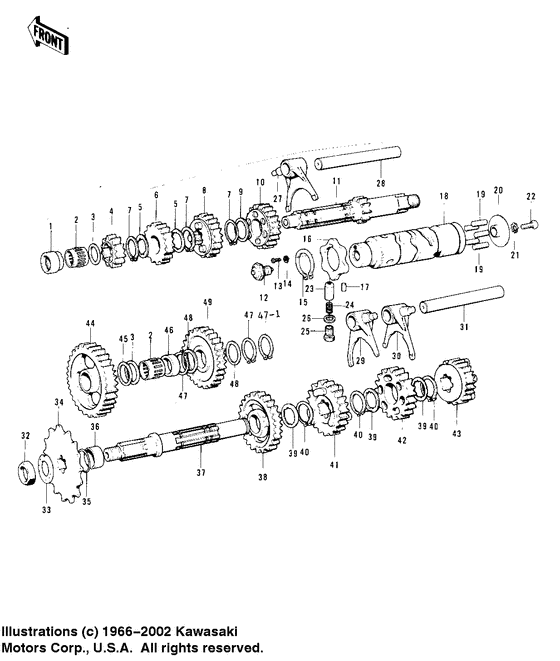

Transmission/change drum

Kawasaki F11

Kawasaki
Transmission/change drum
#oem кодцена
1
92028-109
Втулка
2
92046-1184
Подшипник
3
92022-075
Washer 17mm
4
13130-029
2nd gear-drive shaft
5
92024-039
Шайба блокирующая
6
13136-039
Top gear-drive shaft
7
92033-025
Circlip,25mm
8
13132-031
3rd gear-drive shaft
9
92022-198
Washer-plain
10
13134-014
4th gear-drive shaft
11
13127-037
Торсионный вал
12
13151-018
Switch,neutral
13
92009-006
Screw,pan head,4x6
14
461DA0400
Шайба пружины
замена
461F0400
Washer-spring,4mm
15
480J3000
Circlip,30mm
16
13145-1058
Вал
17
610A0406
Pin-dowel,4x6
18
13239-012
Drum assy-gear change
19
13239-012
Drum assy-gear change
19
92042-014
Pin-gear change drum
20
13239-012
Drum assy-gear change
20
13142-008
Plate change drum pin
21
13239-012
Drum assy-gear change
21
464H0600
Washer lock 6mm
22
13239-012
Drum assy-gear change
22
214B0612
Screw-pan+-
22
220AA0612
ナベコネジ(+ジアナ)，6x12
замена
220B0612
Screw-pan head,6x12
23
92043-076
Штырь
24
92081-112
Пружина
25
92001-106
Болт
26
92065-090
Прокладка
27
13140-044
Fork-selector,4th&top
28
13209-008
Rod-shift,short
29
13140-043
Fork-selector,2nd&3rd
30
13140-042
Fork-selector,low
31
13209-007
Rod-shift,long
32
92015-019
Гайка,18MM
33
92024-067
Washer,lock,18mm
34
13144-043
Eng sprocket 13t (opt
35
92055-035
Кольцо
36
92027-163
Collar-eng sproket
37
13128-033
Shaft-output
38
13131-035
2nd gear-output shaft
39
92024-038
Шайба блокирующая
40
92033-026
Пружинное стопорное кольцо
41
13137-023
Top gear-output shaft
42
13133-028
3rd gear-output shaft
43
13135-018
4th gear-output shaft
44
13129-041
Low gear-output shaft
45
92026-021
Шайба опорная
46
92028-110
Втулка
47
480J1600
Circlip,16mm
48
92022-197
Шайба - опора
49
13073-008
Idle gear-kickstarter
