Crankshaft/piston/rotary valve для мотоциклов Kawasaki F7 Dual Sport (1974)

Москва и регионы России

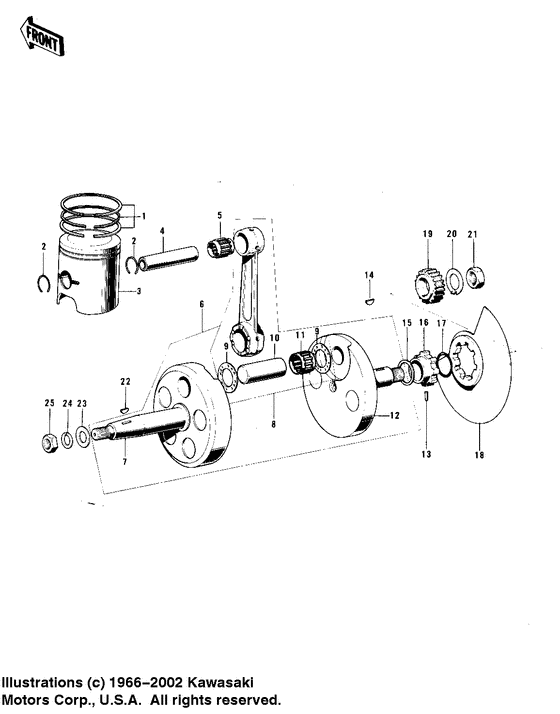

Crankshaft/piston/rotary valve

Kawasaki F7 Dual Sport

Crankshaft/piston/rotary valve

Crankshaft/piston/rotary valve

1

2

2

3

4

5

6

7

8

9

9

10

11

12

14

15

16

17

18

19

19

20

21

22

23

24

25

#

oem код

название

цена

1

Ring set,std

Ring set,std

Ring set,std;

2

Circlip-piston pin

Circlip-piston pin

Circlip piston pin;

3

Piston,std

Piston,std

Piston,std;

4

Палец поршня

Палец поршня

5

Bearing,small end

Bearing,small end

Bearing,small end; Ktv141822

6

Вал коленчатый

Вал коленчатый

7

Crankshaft,l.h

Crankshaft,l.h

Crankshaft,l.h;

8

Connecting rod set

Connecting rod set

9

Washer-side

Washer-side

Washer side;

10

Crank pin

Crank pin

11

Bearing,big end

Bearing,big end

Bearing,big end; Pk222914,9x

12

Crank - conrod assy

Crank - conrod assy

замена

Crankshaft,r.h

Crankshaft,r.h

Crankshaft,r.h;

13

Дюбель

Дюбель

Pin dowel 4x12;

14

Ключ

Ключ

Woodruff key pry pini;

15

Collar-crankshaft

Collar-crankshaft

16

Collar-r.h crnk sht

Collar-r.h crnk sht

17

"0" ring,22mm

"0" ring,22mm

"0" ring,22mm;

18

Valve-rotary disc

Valve-rotary disc

19

Pinion,primary

Pinion,primary

Pinion,primary;

20

Washer,lock,18mm

Washer,lock,18mm

Washer,lock,18mm;

21

Гайка,18MM

Гайка,18MM

Nut 18mm;

22

Ключ

Ключ

Woodruff key;

23

Washer-plain,14mm

Washer-plain,14mm

Washer-plain,14mm;

24

Washer-spring,14mm

Washer-spring,14mm

25

Гайка 14MM

Гайка 14MM
