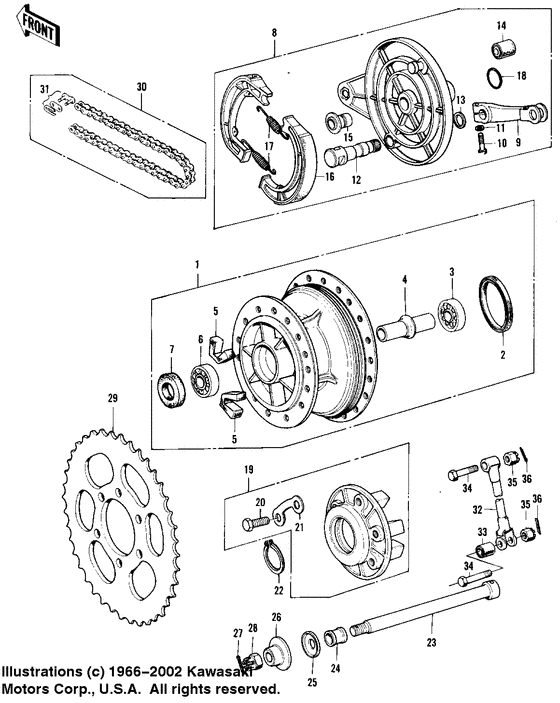

Rear hub/brake/chain

Kawasaki F11

Rear hub/brake/chain

Rear hub/brake/chain

1

2

3

4

5

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

34

35

35

36

36

#

oem код

название

цена

1

Drum asy-rr br,buff

Drum asy-rr br,buff

Drum asy-rr br,buff; Buff finish

2

Oil seal,#50656

Oil seal,#50656

.oil seal,#50656;

3

Ball bearing,#6203zc3

Ball bearing,#6203zc3

.ball bearing,#6203zc;

4

Spacer,rr brake drum

Spacer,rr brake drum

.spacer,rr brake drum;

5

Damper-rear hub shock

Damper-rear hub shock

6

Ball bearing,#6203c3

Ball bearing,#6203c3

.bearing ball #6203;

7

Oil seal-coupling

Oil seal-coupling

.oil seal-coupling;

8

Panel-asy,rr brk,blk

Panel-asy,rr brk,blk

Panel-asy,rr brk,blk; Flat black

9

Lever-brake cam

Lever-brake cam

10

ボルト(アプセツト)，6x25

ボルト(アプセツト)，6x25

замена

Болт

Болт

.bolt-upset;

11

Шайба

Шайба

замена

Шайба обыкновенная,6MM

Шайба обыкновенная,6MM

.washer plain 6mm;

12

Camshaft,rear brake

Camshaft,rear brake

.camshaft,rear brake;

13

Dust shield-brake cam

Dust shield-brake cam

.dust shield brake ca;

14

Bush-rr brk pedal rub

Bush-rr brk pedal rub

15

Collar-rear hub

Collar-rear hub

16

Shoe-brake

Shoe-brake

замена

Superceded

Superceded

.shoe,brake;

17

Пружина

Пружина

.spring-brake shoe;

18

"o" ring,34mm

"o" ring,34mm

."0" ring,34mm;

19

Coupling assy,rr-blk

Coupling assy,rr-blk

Coupling assy,rr-blk;

20

Bolt-rear sprocket

Bolt-rear sprocket

21

Washer lock

Washer lock

.washer lock;

22

Circlip,52mm

Circlip,52mm

.circlip,52mm;

23

Axle-rear

Axle-rear

24

Collar-rear axle,r.h

Collar-rear axle,r.h

Collar-rear axle,r.h;

25

Dust-shield-cam shaft

Dust-shield-cam shaft

26

Collar-rear axle,l.h

Collar-rear axle,l.h

Collar-rear axle,l.h;

27

ワリピン，4.0x35

ワリピン，4.0x35

замена

Шпонка,4.0X35

Шпонка,4.0X35

Pin-cotter,4.0x35;

28

Гайка,16MM

Гайка,16MM

замена

Гайка,16MM

Гайка,16MM

Nut castle,16mm;

29

Rear sprocket 44t

Rear sprocket 44t

Std, option, option

30

Dr chain 525x100

Dr chain 525x100

замена

New Genuine Part

New Genuine Part

No. 525 sh, 100l

31

Chain joint 525

Chain joint 525

.chain joint 525; No. 525

32

Torque link-rear brk

Torque link-rear brk

33

Bush-rr brk pedal rub

Bush-rr brk pedal rub

Bush-rr brk pedal ru;

34

Bolt-hex head,10x42

Bolt-hex head,10x42

Bolt-hex head,10x42;

35

Nut-castle,10mm

Nut-castle,10mm

замена

Nut castle 10mm

Nut castle 10mm

36

ワリピン，2.5x20

ワリピン，2.5x20

замена

Pin-cotter,2.5x20

Pin-cotter,2.5x20

Pin cotter 2.5x20;
