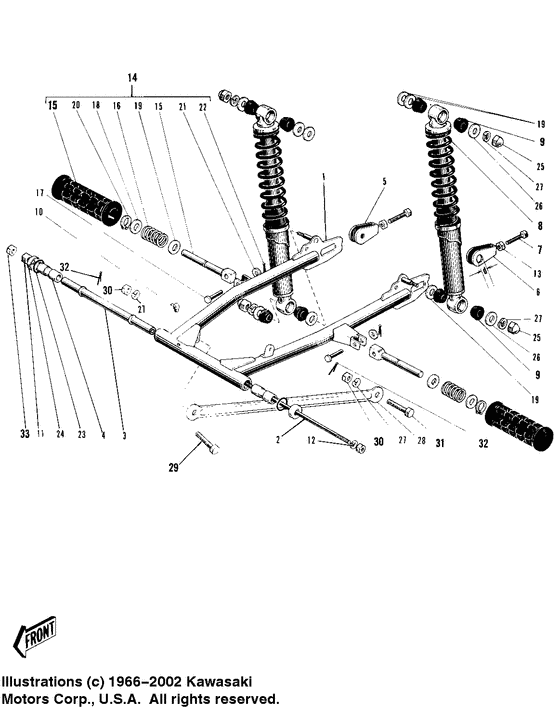

Swing arm/shock absorbers

Kawasaki F4 Sidewinder

Swing arm/shock absorbers

Swing arm/shock absorbers

1

2

3

4

5

5

7

8

9

9

10

11

12

13

14

15

15

16

17

18

19

19

19

20

21

22

23

24

25

25

26

26

27

27

27

27

28

29

30

30

31

32

32

33

#

oem код

название

цена

1

Arm swinging

Arm swinging

2

Shaft swing arm pivot

Shaft swing arm pivot

3

Collar swing arm

Collar swing arm

4

Sleeve swing arm

Sleeve swing arm

5

Adjuster chain r.h

Adjuster chain r.h

6 mm thread, 8 mm thread

6

Adjuster chain l.h

Adjuster chain l.h

6 mm thread, 8 mm thread

7

Bolt chain adjust

Bolt chain adjust

Use for 33040-023,024, use for 33040-030,031

8

Shock absbr rr

Shock absbr rr

9

Bush rubb rr shck abs

Bush rubb rr shck abs

10

Масленка

Масленка

11

Гайка

Гайка

замена

Гайка,12MM

Гайка,12MM

Nut,12mm; I.s.o.

12

バネザガネ，12mm

バネザガネ，12mm

замена

Washer-spring,12mm

Washer-spring,12mm

Washer spring 12mm;

13

Гайка диагональная

Гайка диагональная

замена

Гайка,6MM

Гайка,6MM

Nut 6mm; Use for 92001-009, use for 92001-038

14

Footrest assy rear

Footrest assy rear

15

Rubber rear footrest

Rubber rear footrest

16

Spring footrest fold

Spring footrest fold

17

Pin footrest fit

Pin footrest fit

18

Washer folding peg

Washer folding peg

19

ヒラザガネ(コガタマル)，14mm

ヒラザガネ(コガタマル)，14mm

замена

Washer-plain,14mm

Washer-plain,14mm

Washer plain 14mm; I.d.=15 mm

20

Circlip,14mm

Circlip,14mm

Circlip 14mm;

21

ヒラザガネ(コガタマル)，8mm

ヒラザガネ(コガタマル)，8mm

замена

Washer-plain,8mm

Washer-plain,8mm

Washer plain 8mm;

22

Pin cotter 2.5x16

Pin cotter 2.5x16

23

Bush shock absorber

Bush shock absorber

24

Holder dust shield

Holder dust shield

25

Nut-shock absorber

Nut-shock absorber

Nut shock absorber;

26

Washer-plain,25mm

Washer-plain,25mm

Washer-pl-10.5x26x2.3;

27

バネザガネ，10mm

バネザガネ，10mm

замена

Washer-spring,10mm

Washer-spring,10mm

Washer spring 10mm;

28

Torque link rear brk

Torque link rear brk

29

Bolt,10x25

Bolt,10x25

замена

Bolt-trq link 10x25

Bolt-trq link 10x25

Bolt torque link fit; L=25 mm

30

ロツカクナツト(コガタホソメ)，10mm

ロツカクナツト(コガタホソメ)，10mm

замена

Гайка,10MM

Гайка,10MM

Nut,10mm;

31

Bolt, 10 x 32

Bolt, 10 x 32

замена

Bolt-hex head,10x32

Bolt-hex head,10x32

Bolt hex head 10x25; L=30 mm

32

ワリピン，2.0x15

ワリピン，2.0x15

замена

Pin-cotter|pin-cotter,2.0x15

Pin-cotter|pin-cotter,2.0x15

Pin cotter 2.0x15;

33

Гайка

Гайка

замена

Гайка

Гайка

Nut-hex-fine,12mm; I.s.o.
