Transmission/change drum для мотоциклов Kawasaki F9 Bighorn (1974)

Москва и регионы России

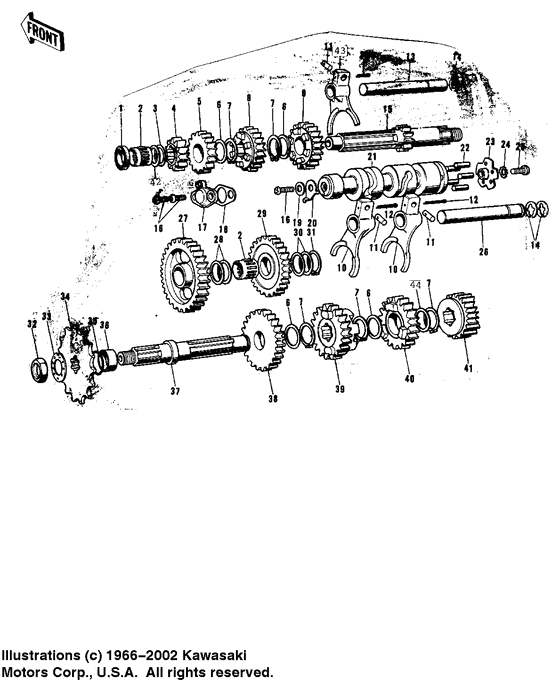

Transmission/change drum

Kawasaki F9 Bighorn

Transmission/change drum

Transmission/change drum

1

2

2

3

4

5

6

6

6

6

7

7

7

7

7

8

9

10

10

11

11

12

12

13

14

14

15

16

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

#

oem код

название

цена

1

Oil seal-clth psh rod

Oil seal-clth psh rod

Oil seal-clth psh ro;

2

Подшипник игольчатый

Подшипник игольчатый

3

Шайба опорная

Шайба опорная

4

2nd gear-drive shaft

2nd gear-drive shaft

2nd gear-drive shaft; 14t, 14t

5

4th gear-drive shaft

4th gear-drive shaft

20t, 20t

6

Washer-thrust,25mm

Washer-thrust,25mm

Washer plain;

7

Пружинное стопорное кольцо

Пружинное стопорное кольцо

Circlip;

8

3rd gear-drive shaft

3rd gear-drive shaft

18t, 18t

9

Top gear,drive shaft

Top gear,drive shaft

Top gear,drive shaft; 28t, 28t

10

Fork,selector

Fork,selector

Fork,selector;

11

Pin select fork guide

Pin select fork guide

Pin select fork guid;

12

Pin cotter 3.0x18

Pin cotter 3.0x18

Pin cotter 3.0x18;

13

Переключатель

Переключатель

L=113 m/m, l=113 m/m

14

Circlip,10mm

Circlip,10mm

Circlip 10mm;

15

Торсионный вал

Торсионный вал

16

ナベコネジ(+ジアナ)，6x16

ナベコネジ(+ジアナ)，6x16

замена

Screw-pan head,6x16

Screw-pan head,6x16

Screw pan head 6x16;

17

Переключатель нейтральный

Переключатель нейтральный

Switch,neutral;

18

Gasket-neutral switch

Gasket-neutral switch

Gasket neutral switch;

19

Шайба

Шайба

замена

Шайба обыкновенная,6MM

Шайба обыкновенная,6MM

Washer plain 6mm;

20

Rotor, top & neutral

Rotor, top & neutral

Rotor,neutral indict;

21

Drum assy-gear change

Drum assy-gear change

22

Pin-gear change drum

Pin-gear change drum

Pin-change drum;

23

Plate-change drum pin

Plate-change drum pin

Plate-change drum pi;

24

Washer lock 6mm

Washer lock 6mm

25

サラコネジ(+ジアナ)，6x20

サラコネジ(+ジアナ)，6x20

замена

Screw-cntsnk hd,6x20

Screw-cntsnk hd,6x20

Screw cntsnk hd 6x20;

26

Переключатель

Переключатель

L=119 m/m, l=119 m/m

27

Low gear-output shaft

Low gear-output shaft

27t, 27t

28

Шайба - опора

Шайба - опора

Washer thrust;

29

Idle gear-kickstarter

Idle gear-kickstarter

Idle gear-kickstarte;

30

Шайба - опора

Шайба - опора

Washer thrust; 1.0t, 0.5t, 0.5t, 1.0t

31

Circlip,19mm

Circlip,19mm

Circlip,19mm;

32

Гайка,18MM

Гайка,18MM

Nut 18mm;

33

Washer,lock,18mm

Washer,lock,18mm

Washer,lock,18mm; F9c, f9c

34

Engine sprocket 14t

Engine sprocket 14t

Std, option, std, option, option, option

35

Кольцо

Кольцо

"o" ring;

36

Collar-eng sproket

Collar-eng sproket

F9c, f9c

37

Shaft-output

Shaft-output

38

2nd gear-output shaft

2nd gear-output shaft

2nd gear-output shaf; 24t, 24t

39

4th gear-output shaft

4th gear-output shaft

4th gear-output shaf; 18t, 18t

40

3rd gear-output shaft

3rd gear-output shaft

3rd gear-output shaf; 21t, 21t

41

Top gear-output shaft

Top gear-output shaft

Top gear-output shaf; 20t, 20t

42

Шайба упорная

Шайба упорная

Washer,thrust;

43

Fork-selector

Fork-selector

44

Шайба блокирующая

Шайба блокирующая

Washer,lock;
