Swing arm/shock absorbers для мотоциклов Kawasaki F9 Bighorn (1974)

Москва и регионы России

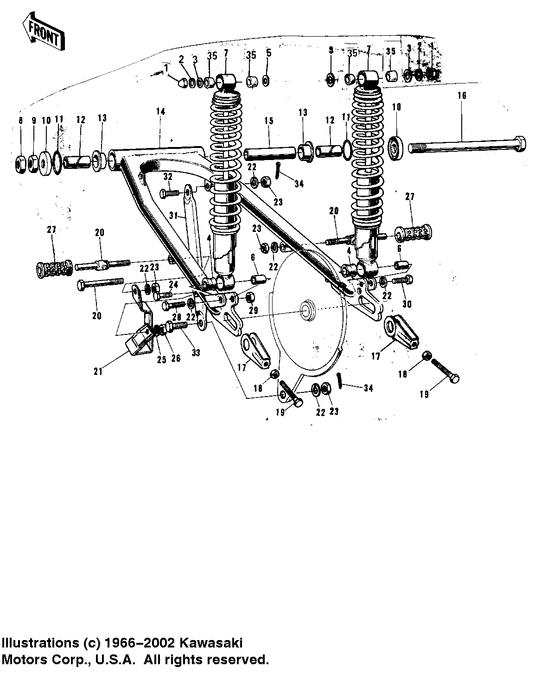

Swing arm/shock absorbers

Kawasaki F9 Bighorn

Swing arm/shock absorbers

Swing arm/shock absorbers

1

1

2

2

3

3

4

4

4

4

5

6

6

6

6

7

7

8

9

9

10

10

11

11

12

12

13

13

14

15

16

17

17

18

18

19

19

20

20

21

22

22

22

22

22

22

23

23

23

23

24

25

26

27

27

28

28

29

30

31

32

33

34

34

35

35

35

35

35

35

35

35

#

oem код

название

цена

1

Nut-shock absorber

Nut-shock absorber

Nut shock absorber;

2

バネザガネ，10mm

バネザガネ，10mm

замена

Washer-spring,10mm

Washer-spring,10mm

Washer spring 10mm;

3

Washer-plain,25mm

Washer-plain,25mm

Washer-pl-10.5x26x2.; I.d=10.50, i.d=10.50

4

Shockabsorber,rr

Shockabsorber,rr

замена

Shockabsorber,rr

Shockabsorber,rr

4

Bushing, rubber

Bushing, rubber

замена

Superceded

Superceded

5

ヒラザガネ(コガタマル)，14mm

ヒラザガネ(コガタマル)，14mm

замена

Washer-plain,14mm

Washer-plain,14mm

Washer plain 14mm; I.d=12.50, i.d=12.50

6

Shockabsorber,rr

Shockabsorber,rr

замена

Shockabsorber,rr

Shockabsorber,rr

6

Bushing,shck absorber

Bushing,shck absorber

замена

Bush-shck abs pvt sft

Bush-shck abs pvt sft

Bush shck abs pvt sf;

7

Shockabsorber,rr

Shockabsorber,rr

замена

Shockabsorber,rr

Shockabsorber,rr

8

Гайка,14MM

Гайка,14MM

замена

Гайка,14MM

Гайка,14MM

Nut 14mm;

9

Гайка,14MM

Гайка,14MM

замена

Гайка,14MM

Гайка,14MM

Nut,14mm;

10

Cap-swing arm

Cap-swing arm

11

`o` ring,30mm

`o` ring,30mm

"0" ring,30mm;

12

Sleeve-swing arm,shrt

Sleeve-swing arm,shrt

Sleeve-swing arm,shr; L=43 m/m, l=43 m/m

13

Втулка

Втулка

14

Arm-swing

Arm-swing

15

Sleeve-swing arm,long

Sleeve-swing arm,long

Sleeve-swing arm,lon; L=117.5 m/m, l=117.5 m/m

16

Shaft-swing arm pivot

Shaft-swing arm pivot

Shaft-swing arm pivo;

17

Регулятор

Регулятор

замена

Регулятор

Регулятор

18

Гайка диагональная, маленькая

Гайка диагональная, маленькая

замена

Гайка,8MM

Гайка,8MM

19

Болт 8X50

Болт 8X50

замена

superceded

superceded

Bolt,8x50;

20

Болт,10X50

Болт,10X50

замена

superceded

superceded

Bolt,hex head,10x50; Not required for 34027-013, option, not required for 34027-013, option

21

Guard-chain

Guard-chain

22

バネザガネ，10mm

バネザガネ，10mm

замена

Washer-spring,10mm

Washer-spring,10mm

Washer spring 10mm; *lea not, *lea not

23

ロツカクナツト(コガタホソメ)，10mm

ロツカクナツト(コガタホソメ)，10mm

замена

Гайка,10MM

Гайка,10MM

Nut,10mm; Required for 34027-013, required for 34027-013

24

Bolt, 8x32

Bolt, 8x32

замена

BOLT-SMALL-UPSET

BOLT-SMALL-UPSET

25

バネザガネ，8mm

バネザガネ，8mm

замена

Шайба пружины,8MM

Шайба пружины,8MM

Washer spring 8mm;

26

ロツカクナツト(コガタ)，8mm

ロツカクナツト(コガタ)，8mm

замена

Гайка,8MM

Гайка,8MM

Nut,8mm;

27

Rubber rear footrest

Rubber rear footrest

Option, option

28

Bolt hex head 10x45

Bolt hex head 10x45

29

ロツカクナツト(コガタホソメ)，10mm

ロツカクナツト(コガタホソメ)，10mm

замена

Гайка,10MM

Гайка,10MM

Nut 10mm;

30

Болт

Болт

замена

Superceded

Superceded

31

Torque link rear brk

Torque link rear brk

32

Bolt,10x25

Bolt,10x25

замена

Bolt-trq link 10x25

Bolt-trq link 10x25

Bolt torque link fit;

33

Bolt, 10 x 32

Bolt, 10 x 32

замена

Bolt-hex head,10x32

Bolt-hex head,10x32

Bolt hex head 10x25;

34

ワリピン，2.0x15

ワリピン，2.0x15

замена

Pin-cotter|pin-cotter,2.0x15

Pin-cotter|pin-cotter,2.0x15

Pin cotter 2.0x15;

35

Shockabsorber,rr

Shockabsorber,rr

замена

Shockabsorber,rr

Shockabsorber,rr

35

Bushing,shck abs rub

Bushing,shck abs rub

замена

Bush shck abs rubber

Bush shck abs rubber

F9c, f9c
