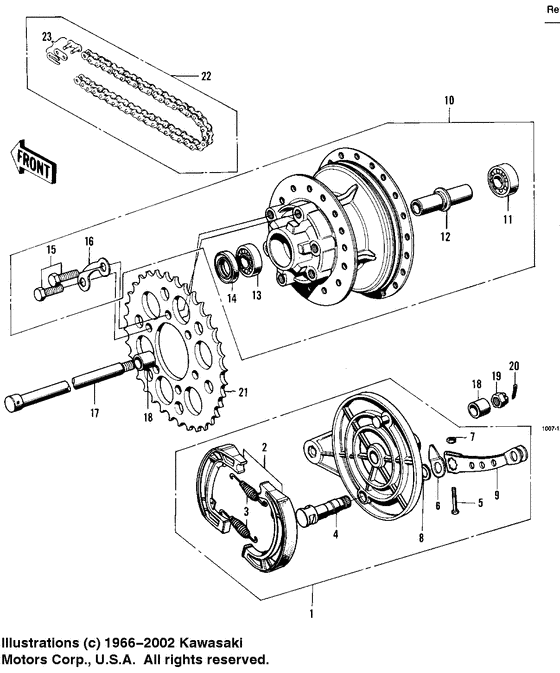

Rear hub/brake/chain для мотоциклов Kawasaki F9 Bighorn (1975)

oem код

название

цена

42006-042-80

Panel-asy,rr brk,buff

Panel-asy,rr brk,buf;

41048-1107

Shoe-brake

замена

42019-011

Superceded

.shoe,brake; F9-b, f9-c, f9-c, f9-b

42020-004

Пружина

.spring-brake shoe;

42026-016

Cam shaft,rr brk pnl

.cam shaft,rr brk pnl;

112G0640

Болт ,6X40

.bolt-upset,6x40;

41085-006

Indicator,rr brk pnl

Indicator,rr brk pnl;

41072007

Гайка,6MM

.nut,6mm;

41051001

Dust shield-brake cam

.dust shield brake ca;

42029-037

Lever,rear brake cam

.lever,rear brake cam;

42005-039-80

Drum assy,rr brk,buff

Drum assy,rr brk,buf;

601B6303Z

ボ-ルベアリング，#6303zc3

42010-015

Spacer-rr hub bearing

.spacer-rr hub bearin; L=116 mm, l=116 mm

601B6303

Ball bearing,#6303c3

.bearing ball #6303;

654A254708

Oil seal front axle

92001-087

Bolt-hex head,10x25

.bolt-hex head,10x25;

92088-007

Washer lock

.washer lock;

42031-036

Axle-rear

42032-031

Collar-rear axle

92015-1947

Гайка

замена

42045014

Nut castle, 16m/m

Nut castle 16m/m;

550AA4035

ワリピン，4.0x35

замена

550D4035

Шпонка,4.0X35

Pin-cotter,4.0x35;

42041-111

Rear sprocket,41t

Rear sprocket,41t; Std, option, option, option, option, std, option, option

695X5292

Dr chain 525x92h

Special grease, special grease

92058-006

Chain joint 525
