Front hub/brake для мотоциклов Kawasaki MC1 (1975)

Москва и регионы России

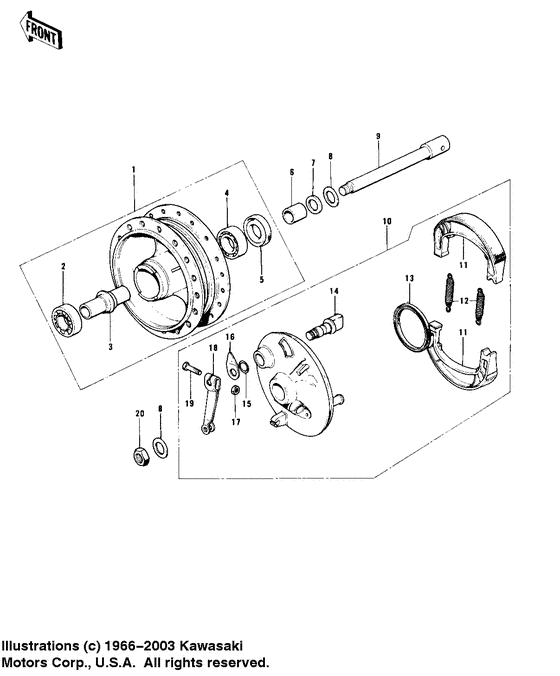

Front hub/brake

Kawasaki MC1

Front hub/brake

Front hub/brake

1

2

3

4

5

6

7

8

8

9

10

11

11

12

13

14

15

16

17

18

19

20

#

oem код

название

цена

1

Drum-assy,fr brk

Drum-assy,fr brk

Drum-assy,fr brk; Buff finish

2

Bearing ball #6300z

Bearing ball #6300z

3

Spacer-front hub

Spacer-front hub

Spacer front hub;

4

Bearing ball #6200

Bearing ball #6200

5

Oil seal,tc17317

Oil seal,tc17317

Oil seal,tc17317;

6

Collar,front axle

Collar,front axle

Collar,front axle;

7

Dust shield frnt drum

Dust shield frnt drum

8

ヒラザガネ(ミガキマル)，10mm

ヒラザガネ(ミガキマル)，10mm

замена

Washer-plain,10mm

Washer-plain,10mm

Washer plain 10mm;

9

Ось передняя

Ось передняя

замена

Axle-front

Axle-front

Axle-front;

10

Panel asy,fr bk,buff

Panel asy,fr bk,buff

Panel asy,fr bk,buff; Buff finish

11

Башмак

Башмак

12

Spring,brake shoe

Spring,brake shoe

Spring,brake shoe;

13

Oil seal-brake panel

Oil seal-brake panel

Oil seal brake panel;

14

Вал

Вал

Cam shaft-front brake;

15

Кольцо

Кольцо

"0" ring,11mm;

16

Indicator,bk shoe

Indicator,bk shoe

Indicator,bk shoe;

17

Гайка,6MM

Гайка,6MM

Nut,6mm;

18

Lever-front brake cam

Lever-front brake cam

Lever front brake cam;

19

ボルト(アプセツト)，6x30

ボルト(アプセツト)，6x30

замена

Болт

Болт

20

Гайка,10MM

Гайка,10MM

Nut 10mm;
