Rear hub/chain для мотоциклов Kawasaki KZ750 (1979)

Москва и регионы России

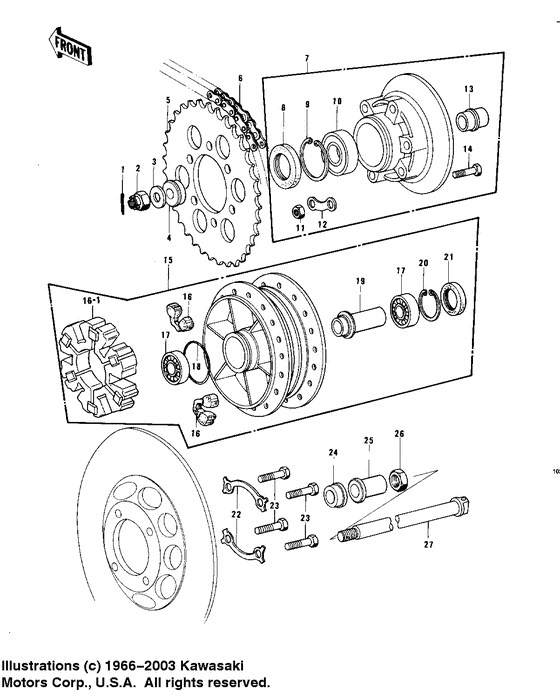

Rear hub/chain

Kawasaki KZ750

Rear hub/chain

Rear hub/chain

1

2

3

4

5

6

7

8

9

11

12

13

14

15

16

16

17

17

18

18

19

20

21

22

23

23

24

25

26

27

#

oem код

название

цена

1

Pin-cotter,4.0x30

Pin-cotter,4.0x30

замена

Pin-cotter,4.0x30

Pin-cotter,4.0x30

Pin cotter 4.0x30;

2

Гайка,18MM

Гайка,18MM

Nut castle,18mm;

3

Washer,plain,20mm

Washer,plain,20mm

Washer,plain,20mm;

4

Collar,rear axle

Collar,rear axle

Collar,rear axle;

5

Sprocket,rear,38t

Sprocket,rear,38t

Sprocket,rear,38t;

6

Chain,530x106 sh-d

Chain,530x106 sh-d

Chain,530x106 sh-d; Ek530sh

7

Coupling assy,rr hub

Coupling assy,rr hub

Coupling assy,rr hub;

8

Сальник

Сальник

Oil seal;

9

Circlip 62 m/m

Circlip 62 m/m

Circlip,62m/m;

10

Ball bearing,#6206

Ball bearing,#6206

Ball bearing,#6206;

11

Гайка,10MM

Гайка,10MM

Nut 10mm;

12

Washer lock

Washer lock

13

Втулка

Втулка

14

Bolt,10x41

Bolt,10x41

15

Drum assy,rear brake

Drum assy,rear brake

Drum assy,rear brake;

16

Shock damper

Shock damper

17

Ball bearing,#6304c3

Ball bearing,#6304c3

18

`o` ring,60mm

`o` ring,60mm

"0" ring,60mm;

19

Collar,brg

Collar,brg

Collar,brg;

20

Ring,snap,56.2m/m

Ring,snap,56.2m/m

Ring,snap,56.2m/m;

21

Сальник

Сальник

замена

Сальник

Сальник

Oil seal wtc35527;

22

Шайба блокирующая

Шайба блокирующая

Washer,lock; Kz750-b1, kz750-b2/b3/b4

23

Болт

Болт

24

Collar,rear axle

Collar,rear axle

Collar,rear axle;

25

Втулка

Втулка

26

Гайка

Гайка

27

Axle,rear

Axle,rear

Axle,rear;
