Вилка передней оси для мотоциклов Kawasaki KZ650 (1979)

Москва и регионы России

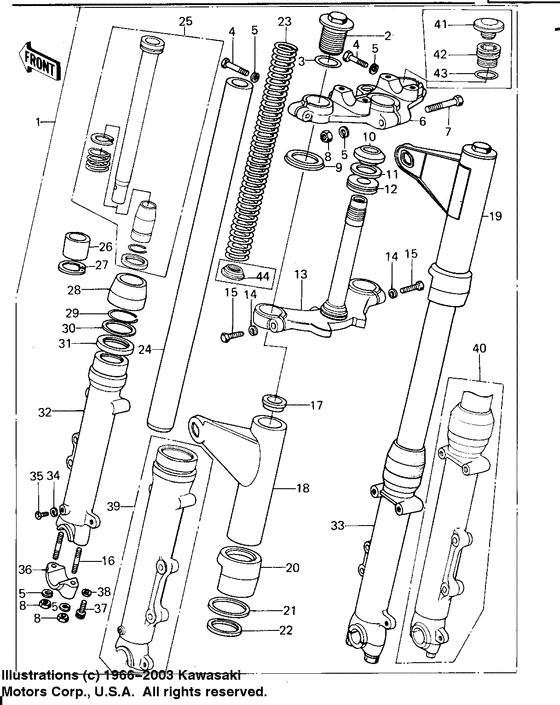

Вилка передней оси

Kawasaki KZ650

Вилка передней оси

Вилка передней оси

1

2

3

4

4

5

5

5

5

5

6

7

8

8

8

9

10

11

12

13

14

14

15

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

#

oem код

название

цена

1

Fork-front

Fork-front

замена

Front fork assy

Front fork assy

Kz650-b1, kz650-b2~

2

Bolt,fork top

Bolt,fork top

Bolt,fork top; Kz650-b1

3

'o' ring fork top

'o' ring fork top

Kz650-b1

4

Bolt-hex head.8m/m

Bolt-hex head.8m/m

5

バネザガネ，8mm

バネザガネ，8mm

замена

Шайба пружины,8MM

Шайба пружины,8MM

Washer spring 8mm;

6

Head,steering stem

Head,steering stem

Head,steering stem;

7

Bolt-steering stem hd

Bolt-steering stem hd

8

Гайка блокирующая,8MM

Гайка блокирующая,8MM

Nut,lock,8mm;

9

Washer,fork cover

Washer,fork cover

Washer,fork cover;

10

Подшипник

Подшипник

Cone,steering stem;

11

Шайба

Шайба

Washer,plain;

12

Сальник

Сальник

Oil seal,steering stm;

13

Stem,steering

Stem,steering

замена

Superceded

Superceded

Stem,steering;

14

バネザガネ，12mm

バネザガネ，12mm

замена

Washer-spring,12mm

Washer-spring,12mm

Washer spring 12mm;

15

Bolt-hex head,12x36

Bolt-hex head,12x36

Bolt-hex head,12x36;

16

Stud, 8x35

Stud, 8x35

Stud,8x35;

17

Guide,fork spring

Guide,fork spring

Guide,fork spring; Kz650-b1

18

Cover,l.h.-fork

Cover,l.h.-fork

Cover,l.h.-fork;

19

Cover,r.h,fork

Cover,r.h,fork

Cover,r.h,fork;

20

Guide,fork cover

Guide,fork cover

Guide,fork cover;

21

Washer,fork cou guid

Washer,fork cou guid

Washer,fork cou guid;

22

Gasket-fork cover

Gasket-fork cover

Gasket,fork cover;

23

Spring,fork

Spring,fork

Spring,fork; Kz650-b1, kz650-b2~

24

Tube,fork inner

Tube,fork inner

Tube,fork inner; Kz650-b1, kz650-b2~

25

Цилиндр вилки

Цилиндр вилки

Kz650-b1, kz650-b2~

26

Piston,fork

Piston,fork

Piston,fork; Kz650-b1

27

Circlip,fork piston

Circlip,fork piston

Circlip,fork piston; Kz650-b1

28

Dust sheild,fork

Dust sheild,fork

Dust sheild,fork;

29

Circlip-oil seal fit

Circlip-oil seal fit

30

Washer-oil seal fit

Washer-oil seal fit

31

Seal-oil,fork outer p

Seal-oil,fork outer p

Seal-oil,fork outer p;

32

Tube,lh,fork outer

Tube,lh,fork outer

Tube,lh,fork outer; Kz650-b1

33

Tube,rh,fork outer

Tube,rh,fork outer

Tube,rh,fork outer; Kz650-b1

34

Прокладка

Прокладка

Gasket fork drain plg;

35

ナベコネジ(+ジアナ)，4x8

ナベコネジ(+ジアナ)，4x8

замена

Винт

Винт

Screw pan head 4x8;

36

Holder,front axle

Holder,front axle

Holder,front axle;

37

Bolt-fork cylinder

Bolt-fork cylinder

Bolt-fork cylinder;

38

Прокладка

Прокладка

Gasket,fork cylinder;

39

Tube,lh,fork outer

Tube,lh,fork outer

Tube,lh,fork outer; Kz650-b2~

40

Tube,rh,fork outer

Tube,rh,fork outer

Tube,rh,fork outer; Kz650-b2~

41

キヤツプ，ラバ-

キヤツプ，ラバ-

Cap,rubber; Kz650-b2~

42

Сидение пружины

Сидение пружины

Kz650-b2~

43

O ring,fork top

O ring,fork top

"o" ring,fork top; Kz650-b2~

44

Guide,fork spring

Guide,fork spring

Guide,fork spring; Kz650-b2~
