Frame comp для мотоциклов Kawasaki KZ1300 (1980)

Москва и регионы России

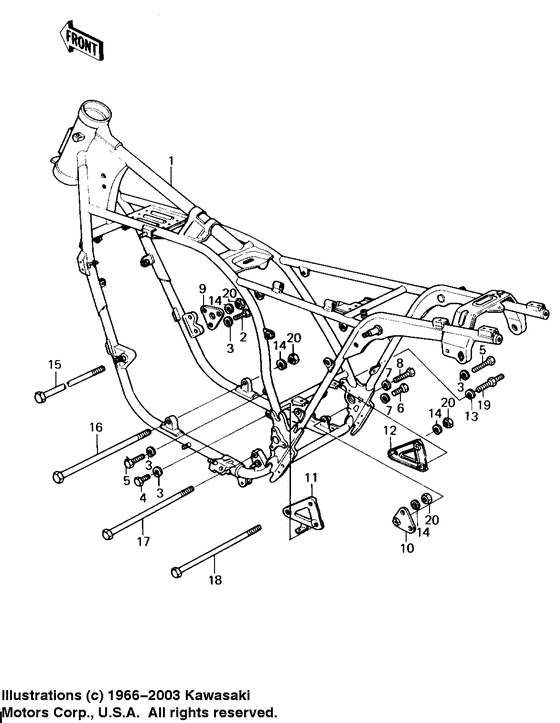

Frame comp

Kawasaki KZ1300

Frame comp

Frame comp

1

2

3

3

3

3

4

5

5

6

7

7

8

9

10

11

12

13

14

14

14

14

15

16

17

18

19

20

20

20

20

#

oem код

название

цена

1

Рама

Рама

Kz1300a1 a2, kz1300 a3

2

Болт 8X22

Болт 8X22

Bolt,8x22;

3

バネザガネ，8mm

バネザガネ，8mm

замена

Шайба пружины,8MM

Шайба пружины,8MM

Washer spring 8mm;

4

ボルト(コガタアプセツト)，8x25

ボルト(コガタアプセツト)，8x25

замена

Болт

Болт

Bolt-small-upset 8x25;

5

Болт малый

Болт малый

замена

Bolt,8x40

Bolt,8x40

Bolt,8x40;

6

Bolt,hex head,10x16

Bolt,hex head,10x16

Bolt,hex head,10x16;

7

バネザガネ，10mm

バネザガネ，10mm

замена

Washer-spring,10mm

Washer-spring,10mm

Washer spring 10mm;

8

Bolt,hex head 10x40

Bolt,hex head 10x40

Bolt,hex head 10x40;

9

Bracket,engine,front

Bracket,engine,front

Bracket,engine,front; R.h.

10

Bracket,engine,rear

Bracket,engine,rear

Bracket,engine,rear; R.h.

11

Bracket,engine,rear

Bracket,engine,rear

Bracket,engine,rear; L.h.

12

Bracket,engine,rear

Bracket,engine,rear

Bracket,engine,rear; R.h.

13

バネザガネ，8mm

バネザガネ，8mm

замена

Шайба пружины,8MM

Шайба пружины,8MM

Washer spring 8mm;

14

バネザガネ，10mm

バネザガネ，10mm

замена

Washer-spring,10mm

Washer-spring,10mm

Washer spring 10mm;

15

Bolt,hex head,10x369

Bolt,hex head,10x369

Bolt,hex head,10x369;

16

Bolt,hex head,10x3/3

Bolt,hex head,10x3/3

Bolt,hex head,10x3/3;

17

Bolt,hex head,10x305

Bolt,hex head,10x305

Bolt,hex head,10x305;

18

Bolt,hex head,10x287

Bolt,hex head,10x287

Bolt,hex head,10x287;

19

Bolt,engine bracket

Bolt,engine bracket

Bolt,engine bracket; 8 m m, 8 m m

20

Гайка,10MM

Гайка,10MM

Nut,10mm;
