Воздухоочиститель для мотоциклов Kawasaki KZ1300 Tourer (1980)

Москва и регионы России

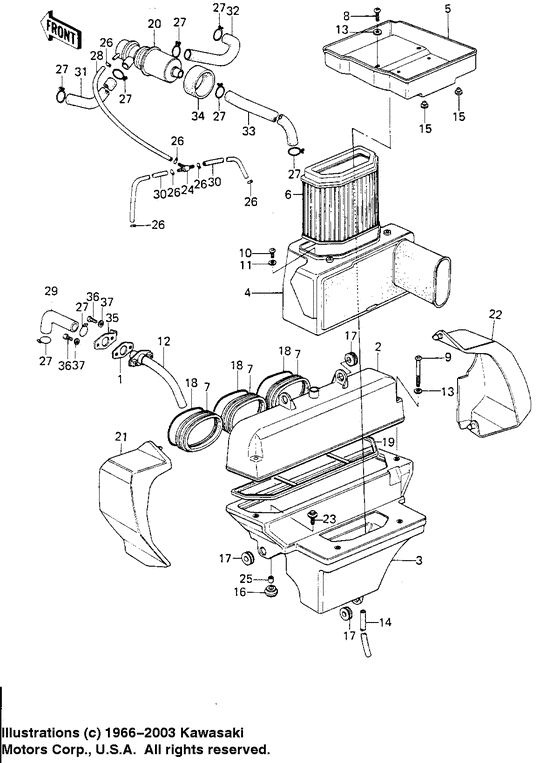

Воздухоочиститель

Kawasaki KZ1300 Tourer

Воздухоочиститель

Воздухоочиститель

1

2

3

4

5

6

7

7

7

8

9

10

10

11

12

13

13

14

15

15

16

17

17

17

18

18

18

19

20

21

22

23

24

25

26

26

26

26

26

26

27

27

27

27

27

27

27

27

28

29

30

30

31

32

33

34

35

36

36

37

37

#

oem код

название

цена

1

No longer available

No longer available

замена

Gasket,breather pipe

Gasket,breather pipe

Gasket,breather pipe;

2

Case,air cleaner,fr

Case,air cleaner,fr

Case,air cleaner,fr;

3

Case,air cleaner lowr

Case,air cleaner lowr

Case,air cleaner lowr;

4

Case,air cleaner,rear

Case,air cleaner,rear

Case,air cleaner,rear;

5

Cap,air cleaner

Cap,air cleaner

Cap,air cleaner;

6

Element,air cleaner

Element,air cleaner

Element,air clnr;

7

Duct,air cleaner

Duct,air cleaner

Duct,air cleaner;

8

ナベコネジ(+ジアナ)，6x20

ナベコネジ(+ジアナ)，6x20

замена

Screw-pan head,6x20

Screw-pan head,6x20

Screw pan head 6x20;

9

Screw-pan head,6x55

Screw-pan head,6x55

замена

Screw-pan head,6x55

Screw-pan head,6x55

10

Screw-pan+-

Screw-pan+-

10

ナベコネジ(+ジアナ)，6x12

ナベコネジ(+ジアナ)，6x12

замена

Screw-pan head,6x12

Screw-pan head,6x12

Screw pan head 6x12;

11

Шайба

Шайба

замена

Шайба обыкновенная,6MM

Шайба обыкновенная,6MM

Washer plain 6mm;

12

Трубка сапуна

Трубка сапуна

Pipe,breather;

13

ヒラザガネ(ミガキマル)，6.5x13x1

ヒラザガネ(ミガキマル)，6.5x13x1

замена

Шайба обыкновенная,6MM

Шайба обыкновенная,6MM

Washer plain 6mm;

14

Tube-vinyl,6x400

Tube-vinyl,6x400

замена

Superceded

Superceded

Tube, cleaner drain; Actual l = 6150 m/m

15

Plug,rubber

Plug,rubber

Plug,rubber;

16

Damper,air cleaner

Damper,air cleaner

Damper,air cleaner;

17

Дэмпфер

Дэмпфер

Damper,cleaner cover;

18

Spring,cleaner duct

Spring,cleaner duct

Spring,cleaner duct;

19

Seal,cleaner lwr case

Seal,cleaner lwr case

Seal,cleaner lwr case;

20

Valve assy,air switng

Valve assy,air switng

Valve assy,air switng;

21

Cover-side-sub,air cl

Cover-side-sub,air cl

Cover-side-sub,air cl;

22

Cover-side-sub,air cl

Cover-side-sub,air cl

Cover-side-sub,air cl;

23

Bolt,6x25,w/washer

Bolt,6x25,w/washer

Bolt,6x25,w/washer;

24

Fitting,tube

Fitting,tube

Fitting,tube;

25

Манжета

Манжета

Collar 6.8x10x10.5;

26

Clamp-pipe

Clamp-pipe

Clamp-pipe;

27

Зажим

Зажим

Clamp,breather tube;

28

Tube,4x9x935,white

Tube,4x9x935,white

замена

Tube, vacuum, long

Tube, vacuum, long

Tube,vacuum,long;

29

Tube,nreather pipe

Tube,nreather pipe

Tube,breather pipe;

30

Tube,4x9x935,white

Tube,4x9x935,white

замена

Труба,4X9X100

Труба,4X9X100

Tube,4x5x100,vacuum;

31

Tube,switch valve,lh

Tube,switch valve,lh

Tube,switch valve,l.h;

32

Tube,switch valve,r.h

Tube,switch valve,r.h

Tube,switch valve,r.h;

33

Tube,swith valve,clnr

Tube,swith valve,clnr

Tube,swith valve,clnr;

34

Damper,air switchng,v

Damper,air switchng,v

Damper,air switchng,v;

35

Bracket,fuel valve

Bracket,fuel valve

Bracket,fuel valve;

36

ボルト(アプセツト)，6x16

ボルト(アプセツト)，6x16

замена

Болт

Болт

Bolt-upset,6x16;

37

バネザガネ，6mm

バネザガネ，6mm

замена

Шайба пружины,6MM

Шайба пружины,6MM

Washer spring 6mm;
