Промежуточный вал для мотоциклов Kawasaki KZ1300 Tourer (1980)

Москва и регионы России

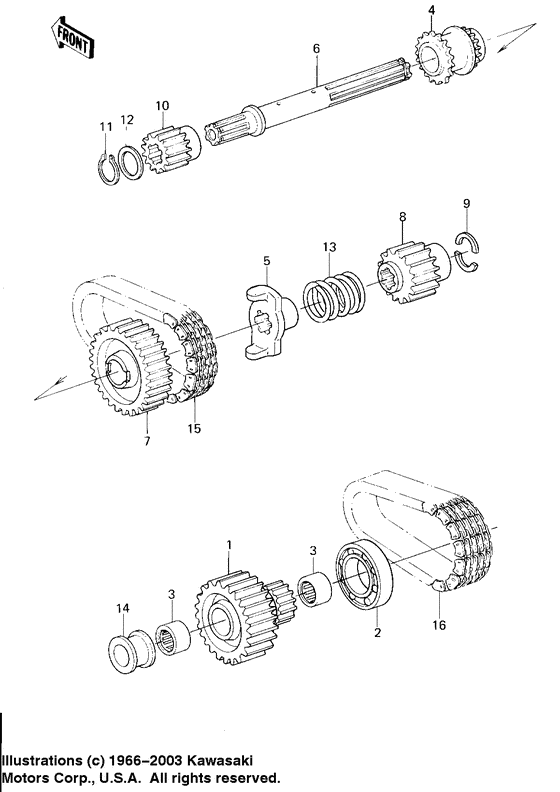

Промежуточный вал

Kawasaki KZ1300 Tourer

Промежуточный вал

Промежуточный вал

1

2

3

3

4

5

6

7

8

9

10

11

12

13

14

15

16

#

oem код

название

цена

1

Sprocket,second,drvn

Sprocket,second,drvn

Sprocket,second,drvn;

2

Bearing,ball,#6009

Bearing,ball,#6009

Bearing,ball,#6009;

3

Bearing,needle,hk2520

Bearing,needle,hk2520

Bearing,needle,hk2520;

4

Sprocket,timing,28,24

Sprocket,timing,28,24

Sprocket,timing,28,24;

5

Follower,cam

Follower,cam

Follower,cam;

6

Shaft,secondary

Shaft,secondary

Shaft,secondary;

7

Sprocket,primary,drvn

Sprocket,primary,drvn

Sprocket,primary,drvn;

8

Sprocket,second,drive

Sprocket,second,drive

Sprocket,second,drive;

9

Ring,position

Ring,position

Ring,positon;

10

Gear,oil pump drive

Gear,oil pump drive

Gear,oil pump drive;

11

Circlip,25m/m

Circlip,25m/m

Circlip,25m/m;

12

Washer,25.3x33x1.0

Washer,25.3x33x1.0

Washer,25.3x33x1.0;

13

Spring,cam follower

Spring,cam follower

Spring,cam follower;

14

Collar,25x40x26.1

Collar,25x40x26.1

Collar,25x40x26.1;

15

Цепь основная

Цепь основная

Chain,primary;

16

Chain,secondary

Chain,secondary

Chain,secondary;
