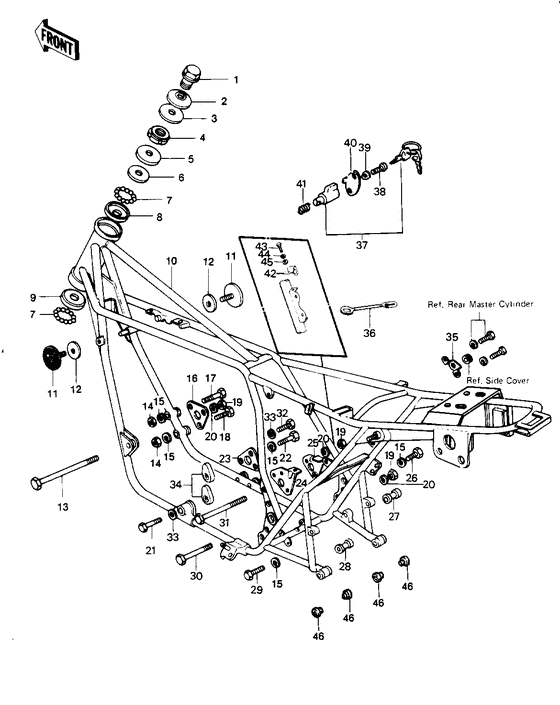

Frame/frame fittings

Kawasaki KZ1000 Z1 Classic

Frame/frame fittings

Frame/frame fittings

1

2

3

4

5

6

7

7

8

9

10

11

11

12

12

13

14

14

15

15

15

15

15

16

17

18

19

19

19

20

20

20

21

22

23

24

25

26

27

28

29

30

31

32

33

33

34

35

36

37

38

39

40

41

42

43

44

45

46

46

46

46

#

oem код

название

цена

1

Bolt-steerg stem head

Bolt-steerg stem head

Bolt,steerg stem head;

2

Washer,16x41x4.5

Washer,16x41x4.5

замена

Washer-steerg stm hd

Washer-steerg stm hd

Washer,steerg stm hd;

3

Washer-wave

Washer-wave

Washer,wave;

4

Nut-steering stem lck

Nut-steering stem lck

Nut steering stem lck;

5

Заглушка

Заглушка

Cap, steering stem;

6

Подшипник

Подшипник

Cone,strng stm brng;

7

Ball-steel,1/4`

Ball-steel,1/4`

Ball steel 1/4';

8

Race-strng bearin-ste

Race-strng bearin-ste

Race strng stem berng;

9

Race-strng stm brng

Race-strng stm brng

Race,strng stm brng;

10

Рама

Рама

11

Reflector reflex

Reflector reflex

Reflector,reflex;

12

Damper rubber-reflect

Damper rubber-reflect

Damper rubber,reflect;

13

Bolt,engine mounting

Bolt,engine mounting

Bolt,engine mounting; L = 310 mm

14

ロツカクナツト(コガタ)，8mm

ロツカクナツト(コガタ)，8mm

замена

Гайка,8MM

Гайка,8MM

Nut,8mm;

15

バネザガネ，8mm

バネザガネ，8mm

замена

Шайба пружины,8MM

Шайба пружины,8MM

Washer spring 8mm;

16

Plate,eng mount front

Plate,eng mount front

Plate,eng mount front;

17

Bolt,flanged,8x70

Bolt,flanged,8x70

замена

Bolt,flanged,8x65

Bolt,flanged,8x65

18

Bolt,flanged,8x60

Bolt,flanged,8x60

Bolt,flanged,8x60;

19

Гайка

Гайка

замена

Nut,lock,10m/m

Nut,lock,10m/m

Nut,lock,10mm;

20

バネザガネ，10mm

バネザガネ，10mm

замена

Washer-spring,10mm

Washer-spring,10mm

Washer spring 10mm;

21

Bolt,hex head,12x55

Bolt,hex head,12x55

Bolt,hex head,12x55;

22

ボルト(コガタアプセツト)，8x18

ボルト(コガタアプセツト)，8x18

замена

Bolt small-upset

Bolt small-upset

Bolt-small-upset,8x18;

23

Plate,eng mount lower

Plate,eng mount lower

Plate,eng mount lower;

24

Plate,rear engine,l.h

Plate,rear engine,l.h

Plate,rear engine,l.h;

25

Bracket,rear engine

Bracket,rear engine

Bracket,rear engine;

26

Болт,8X40

Болт,8X40

замена

Болт,8X40

Болт,8X40

27

Collar,eng mounting

Collar,eng mounting

Collar,eng mounting;

28

Collar,eng mounting

Collar,eng mounting

Collar,eng mounting;

29

Болт,8X35

Болт,8X35

Bolt,flanged,8x35;

30

Bolt,engine mounting

Bolt,engine mounting

Bolt,engine mounting; L = 165 mm

31

Bolt,engine mounting

Bolt,engine mounting

Bolt,engine mounting; L = 250 mm

32

Bolt,hex head,12x70

Bolt,hex head,12x70

Bolt,hex head,12x70;

33

バネザガネ，12mm

バネザガネ，12mm

замена

Washer-spring,12mm

Washer-spring,12mm

Washer spring 12mm;

34

Гайка,12MM

Гайка,12MM

Nut,12mm;

35

Bracket,side cov,r.h

Bracket,side cov,r.h

Bracket,side cov,r.h;

36

Clamp,over flow pipe

Clamp,over flow pipe

Clamp,over flow pipe;

37

Замок

Замок

замена

Superceded

Superceded

Lock,assy,steering;

38

Screw-tapping

Screw-tapping

Screw-tapping;

39

Шайба

Шайба

40

Заглушка

Заглушка

Cap,steering lock;

41

Пружина

Пружина

Spring-steering lock;

42

Bracket,side stand

Bracket,side stand

Bracket,side stand;

43

Болт

Болт

замена

Болт

Болт

Bolt-upset,6x12;

44

バネザガネ，6mm

バネザガネ，6mm

замена

Шайба пружины,6MM

Шайба пружины,6MM

Washer spring 6mm;

45

Шайба

Шайба

замена

Шайба обыкновенная,6MM

Шайба обыкновенная,6MM

Washer plain 6mm;

46

Втулка

Втулка

Bushing,muffler fitt;
