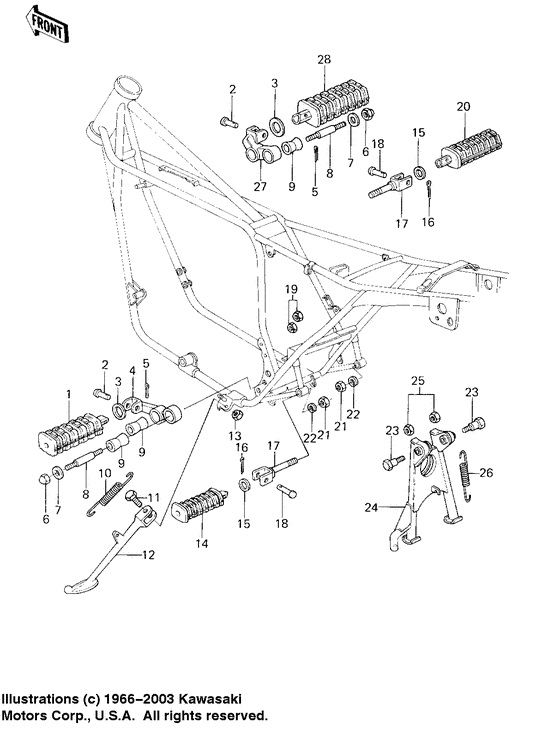

Footrests/stands для мотоциклов Kawasaki KZ1000 Z1-R (1978)

Москва и регионы России

Footrests/stands

Kawasaki KZ1000 Z1-R

Footrests/stands

Footrests/stands

1

2

2

3

3

4

5

5

6

6

7

7

8

8

9

9

9

10

11

12

13

14

15

15

16

16

17

17

18

18

19

20

21

21

22

22

23

23

24

25

26

27

28

#

oem код

название

цена

1

Step,footrest,front,l

Step,footrest,front,l

Step,footrest,front,;

2

Pin-footrest bar fit

Pin-footrest bar fit

Pin-footrest bar fit;

3

Шайба

Шайба

Washer,plain;

4

Bracket,footrest,l.h

Bracket,footrest,l.h

Bracket,footrest,l.h;

5

Pin cotter 2.5x16

Pin cotter 2.5x16

6

Nut,cap,lock,8mm

Nut,cap,lock,8mm

замена

Nut,cap and lock,8mm

Nut,cap and lock,8mm

Nut,cap and lock,8mm;

7

Cap,footrestbar

Cap,footrestbar

Cap,footrestbar;

8

Stud,footrest bar fit

Stud,footrest bar fit

Stud,footrest bar fi;

9

Damper rubber,footrst

Damper rubber,footrst

Damper rubber,footrs;

10

Spring,stand

Spring,stand

замена

Spring-side stand

Spring-side stand

Spring,side stand;

11

Bolt-side stand

Bolt-side stand

Bolt-side stand;

12

Стэнд боковой

Стэнд боковой

13

ロツカクナツト(コガタホソメ)，10mm

ロツカクナツト(コガタホソメ)，10mm

замена

Гайка,10MM

Гайка,10MM

Nut 10mm;

14

Step,footrest,rr,l.h

Step,footrest,rr,l.h

Step,footrest,rear,l;

15

Washer-plain

Washer-plain

Washer-plain;

16

ワリピン，2.0x12

ワリピン，2.0x12

замена

Pin-cotter|pin-cotter,2.0x12

Pin-cotter|pin-cotter,2.0x12

Pin,cotter,2.0x12;

17

Bracket,footrest bar

Bracket,footrest bar

Bracket,footrest bar;

18

Штифт

Штифт

19

ロツカクナツト(コガタホソメ)，10mm

ロツカクナツト(コガタホソメ)，10mm

замена

Гайка,10MM

Гайка,10MM

Nut 10mm;

20

Step,footrest,rr,r.h

Step,footrest,rr,r.h

Step,footrest,rear,r;

21

ロツカクナツト(コガタホソメ)，10mm

ロツカクナツト(コガタホソメ)，10mm

замена

Гайка,10MM

Гайка,10MM

Nut,10mm;

22

バネザガネ，10mm

バネザガネ，10mm

замена

Washer-spring,10mm

Washer-spring,10mm

Washer spring 10mm;

23

Shaft main stand

Shaft main stand

24

Stand-main

Stand-main

25

Nut-main stand fitt

Nut-main stand fitt

Nut,main stand fitt;

26

Пружина

Пружина

замена

Spring,main stand

Spring,main stand

Spring,main stand;

27

Bracket,footrest,r.h

Bracket,footrest,r.h

Bracket,footrest,r.h;

28

Step,footrest,front,r

Step,footrest,front,r

Step,footrest,front,;
