Carburetor assy для мотоциклов Kawasaki KZ1000 Z1-R (1980)

Москва и регионы России

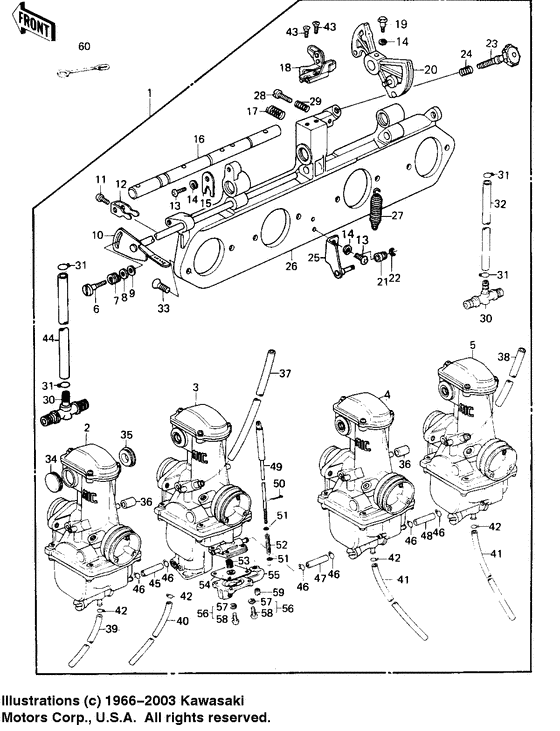

Carburetor assy

Kawasaki KZ1000 Z1-R

Carburetor assy

Carburetor assy

1

2

3

4

5

6

7

8

9

10

11

12

13

13

14

14

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

30

31

31

31

31

32

33

34

35

36

36

37

38

39

40

41

41

42

42

42

42

43

43

44

45

46

46

46

46

46

46

47

48

49

50

51

51

52

53

54

55

56

56

57

57

58

58

59

#

oem код

название

цена

1

Карбюратор

Карбюратор

2

Carburetor,l.h outsid

Carburetor,l.h outsid

Carburetor,l.h outsid;

3

Carburetor,l.h,inside

Carburetor,l.h,inside

Carburetor,l.h,inside; Includes ref #'s 53-58

4

Carburetor,r.h,inside

Carburetor,r.h,inside

Carburetor,r.h,inside;

5

Carburetor,r.h outsid

Carburetor,r.h outsid

Carburetor,r.h outsid;

6

Болт

Болт

7

Spring,f

Spring,f

Spring,f;

8

Шайба

Шайба

Washer,plain; Steel, steel

9

Washer-plain

Washer-plain

Washer,plain; Nylon

10

Shaft,starter plunger

Shaft,starter plunger

Shaft,starter plunger;

11

Screw,pan head,5x7

Screw,pan head,5x7

Screw,pan head,5x7;

12

Lever,starter plunger

Lever,starter plunger

Lever,starter plunger;

13

ナベコネジ(+ジアナ)，5x14

ナベコネジ(+ジアナ)，5x14

замена

Винт

Винт

14

Шайба пружины

Шайба пружины

замена

Шайба пружины,5MM

Шайба пружины,5MM

Washer spring 5mm;

15

Plate,shaft stopper

Plate,shaft stopper

Plate,shaft stopper;

16

Shaft,carb connection

Shaft,carb connection

Shaft,carb connection;

17

Пружина

Пружина

Spring,cable pully;

18

Bracket,throttle cabl

Bracket,throttle cabl

Bracket,throttle cabl;

19

Bolt,hex head,5x14

Bolt,hex head,5x14

Bolt,hex head,5x14;

20

Pulley,throttle cable

Pulley,throttle cable

Pulley,throttle cable;

21

Кольцо

Кольцо

22

Circlip 3mm

Circlip 3mm

23

Screw,throttle stop

Screw,throttle stop

Screw,throttle stop;

24

Spring,throttle stop

Spring,throttle stop

Spring,throttle stop;

25

Bracket,throttle cabl

Bracket,throttle cabl

Bracket,throttle cabl;

26

Держатель карбюратора

Держатель карбюратора

Holder,carburetor;

27

Spring,throttle pully

Spring,throttle pully

Spring,throttle pully;

28

Screw,adjuster

Screw,adjuster

Screw,adjuster;

29

Spring,throttle adjst

Spring,throttle adjst

Spring,throttle adjst;

30

Joint,fuel pipe

Joint,fuel pipe

Joint,fuel pipe;

31

Clamp,carb conect hos

Clamp,carb conect hos

Clamp,carb conect hos;

32

Hose,fuel,6.5ox11.5o

Hose,fuel,6.5ox11.5o

Hose,fuel,6.5ox11.5o;

33

Винт,6X14

Винт,6X14

Screw,6x14;

34

Cap,rubber

Cap,rubber

Cap,rubber;

35

Grommet,carburetor

Grommet,carburetor

Grommet,carburetor;

36

Hose,6x11.5x16

Hose,6x11.5x16

Hose,6x11.5x16;

37

Hose,air vent,5x8x550

Hose,air vent,5x8x550

Hose,air vent,5x8x550;

38

Hose,air vent,5x8x550

Hose,air vent,5x8x550

Hose,air vent,5x8x550;

39

Hose,fuel overflow

Hose,fuel overflow

Hose,fuel overflow;

40

Hose,fuel overflow

Hose,fuel overflow

замена

Superceded

Superceded

Hose,fuel overflow;

41

Hose,fuel overflow

Hose,fuel overflow

замена

Superceded

Superceded

Hose,fuel overflow;

42

Clamp,holder

Clamp,holder

замена

Clamp,carburetor hldr

Clamp,carburetor hldr

Clamp,carburetor hldr;

43

サラコネジ(+ジアナ)，5x10

サラコネジ(+ジアナ)，5x10

замена

Superceded

Superceded

44

Hose,6.50x11.50x100

Hose,6.50x11.50x100

Hose,6.50x11.50x100;

45

Tube,3.5x7.5x47.5

Tube,3.5x7.5x47.5

Tube,3.5x7.5x47.5;

46

Струбцина трубы

Струбцина трубы

Clamp,tube;

47

Tube,3.5x7.5x64.5

Tube,3.5x7.5x64.5

Tube,3.5x7.5x64.5;

48

Tube,3.5x7.5x47.5

Tube,3.5x7.5x47.5

Tube,3.5x7.5x47.5;

49

Rod assy,pump

Rod assy,pump

Rod assy,pump; Includes ref #50

50

Cotter pin,1.0x6

Cotter pin,1.0x6

Cotter pin,1.0x6;

51

Washer,pump rod

Washer,pump rod

Washer,pump rod;

52

Spring,pump rod

Spring,pump rod

Spring,pump rod;

53

Spring,pump diaphragm

Spring,pump diaphragm

Spring,pump diaphragm;

54

Diaphragm,pump

Diaphragm,pump

Diaphragm,pump;

55

Cover assy,pump

Cover assy,pump

Cover assy,pump;

56

ナベコネジ(バネツキ+ジアナ)，4x14

ナベコネジ(バネツキ+ジアナ)，4x14

замена

Винт

Винт

57

Шайба пружины

Шайба пружины

замена

Washer-spring,4mm

Washer-spring,4mm

Washer spring 4mm;

58

ナベコネジ(+ジアナ)，4x14

ナベコネジ(+ジアナ)，4x14

замена

Винт

Винт

59

Nut,pump rod

Nut,pump rod

Nut,pump rod;

60

Clamp,over flow pipe

Clamp,over flow pipe

Clamp,over flow pipe;
