Carburetor assy для мотоциклов Kawasaki KZ1000 Z1-R (1980)

Москва и регионы России

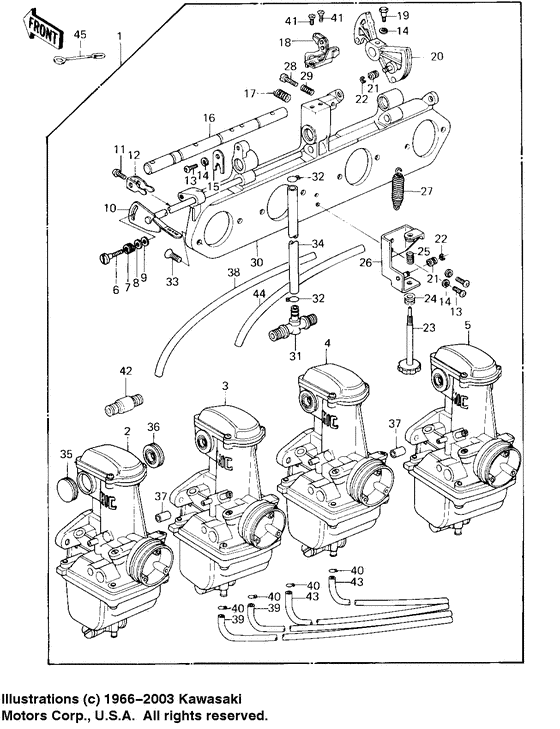

Carburetor assy

Kawasaki KZ1000 Z1-R

Carburetor assy

Carburetor assy

1

2

3

4

5

6

7

8

9

10

11

12

13

13

14

14

14

15

16

17

18

19

20

21

21

22

22

23

24

25

26

27

28

29

30

31

32

32

33

34

35

36

37

37

38

39

39

40

40

40

40

41

41

42

43

43

44

45

#

oem код

название

цена

1

Карбюратор

Карбюратор

2

Карбюратор, левый, внешний

Карбюратор, левый, внешний

Carburetor,lh,outsid;

3

Carburetor,l.h,inside

Carburetor,l.h,inside

Carburetor,l.h,insid;

4

Carburetor,r.h inside

Carburetor,r.h inside

Carburetor,r.h insid;

5

Карбюратор, правый, внешний

Карбюратор, правый, внешний

Carburetor,rh,outsid;

6

Болт

Болт

7

Spring,f

Spring,f

Spring,f;

8

Шайба

Шайба

Washer,plain; Steel, steel

9

Washer-plain

Washer-plain

Washer,plain; Nylon

10

Shaft,starter plunger

Shaft,starter plunger

Shaft,starter plunge;

11

Screw,pan head,5x7

Screw,pan head,5x7

Screw,pan head,5x7;

12

Lever,starter plunger

Lever,starter plunger

Lever,starter plunge;

13

ナベコネジ(+ジアナ)，5x14

ナベコネジ(+ジアナ)，5x14

замена

Винт

Винт

14

Шайба пружины

Шайба пружины

замена

Шайба пружины,5MM

Шайба пружины,5MM

Washer spring 5mm;

15

Plate,shaft stopper

Plate,shaft stopper

Plate,shaft stopper;

16

Shaft,carb connection

Shaft,carb connection

Shaft,carb connectio;

17

Пружина

Пружина

Spring,cable pully;

18

Bracket,throttle cabl

Bracket,throttle cabl

Bracket,throttle cab;

19

Bolt,hex head,5x14

Bolt,hex head,5x14

Bolt,hex head,5x14;

20

Pully,throttle cable

Pully,throttle cable

Pully,throttle cable;

21

Кольцо

Кольцо

22

Circlip 3mm

Circlip 3mm

23

Screw,throttle stop

Screw,throttle stop

Screw,throttle stop;

24

Втулка

Втулка

25

Spring,throttle stop

Spring,throttle stop

Spring,throttle stop;

26

Bracket,throttle cabl

Bracket,throttle cabl

Bracket,throttle cab;

27

Spring,throttle pully

Spring,throttle pully

Spring,throttle pull;

28

Screw,adjuster

Screw,adjuster

Screw,adjuster;

29

Spring,throttle adjst

Spring,throttle adjst

Spring,throttle adjs;

30

Holder,carb mounting

Holder,carb mounting

Holder,carb mounting;

31

Фитинг

Фитинг

32

Струбцина шланга

Струбцина шланга

замена

Струбцина шланга

Струбцина шланга

Clamp,hose;

33

Винт,6X14

Винт,6X14

Screw,6x14;

34

Tube,7.5x12.5x225

Tube,7.5x12.5x225

Tube,7.5x12.5x225;

35

Cap,rubber

Cap,rubber

Cap,rubber;

36

Grommet,carburetor

Grommet,carburetor

Grommet,carburetor;

37

Hose,6x11.5x16

Hose,6x11.5x16

Hose,6x11.5x16;

38

Hose,air vent,5x8x550

Hose,air vent,5x8x550

Hose,air vent,5x8x55;

39

Hose,fuel overflow

Hose,fuel overflow

Hose,fuel overflow;

40

Clamp,holder

Clamp,holder

замена

Clamp,carburetor hldr

Clamp,carburetor hldr

Clamp,carburetor hld;

41

サラコネジ(+ジアナ)，5x10

サラコネジ(+ジアナ)，5x10

замена

Superceded

Superceded

42

Фитинг

Фитинг

43

Hose,fuel overflow

Hose,fuel overflow

Hose,fuel overflow; Actual l = 500 m/m

44

Hose,air vent,5x8x550

Hose,air vent,5x8x550

Hose,air vent,5x8x55; Actual l = 530 m/m

45

Clamp,over flow pipe

Clamp,over flow pipe

Clamp,over flow pipe;
