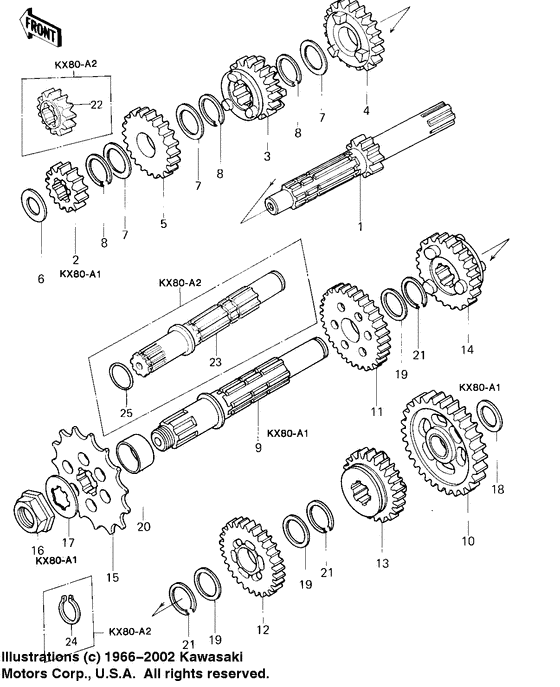

Трансмиссия для мотоциклов Kawasaki KX80 (1979)

Москва и регионы России

Трансмиссия

Kawasaki KX80

Трансмиссия

Трансмиссия

1

2

3

4

5

6

7

7

7

8

8

8

9

10

11

12

13

14

15

16

17

18

19

19

19

20

21

21

21

22

23

24

25

#

oem код

название

цена

1

Торсионный вал

Торсионный вал

Shaft,drive; Kx80-a1, kx80-a2~

2

2nd gear,drive shaft

2nd gear,drive shaft

2nd gear,drive shaft; Kx80-a1

3

3rd gear,drive shaft

3rd gear,drive shaft

3rd gear,drive shaft; Kx80-a1, kx80-a2~

4

4th gear,drive shaft

4th gear,drive shaft

4th gear,drive shaft;

5

Top gear,drive shaft

Top gear,drive shaft

Top gear,drive shaft;

6

Washer plain 12mm

Washer plain 12mm

Kx80-a1

7

Spacer,17.2x23x0.5

Spacer,17.2x23x0.5

Spacer,17.2x23x0.5;

8

Кольцо

Кольцо

Ring,snap;

9

Shaft,output

Shaft,output

Shaft,output; Kx80-a1

10

Low gear,output shaft

Low gear,output shaft

Low gear,output shaft; Kx80-a1, kx80-a2~

11

2nd gear,output shaft

2nd gear,output shaft

2nd gear,output shaft; Kx80-a1, kx80-a2~

12

3rd gear,output shaft

3rd gear,output shaft

3rd gear,output shaft;

13

4th gear,output shaft

4th gear,output shaft

4th gear,output shaft;

14

Top gear,output shaft

Top gear,output shaft

Top gear,output shaft;

15

Sprocket,engine,14t

Sprocket,engine,14t

Sprocket,engine,14t; Option, option

16

Nut,14m/m

Nut,14m/m

Nut,14m/m; Kx80-a1

17

Washer,spline

Washer,spline

Washer,spline; Kx80-a1

18

Spacer,15.3x22x1.0

Spacer,15.3x22x1.0

Spacer,15.3x22x1.0; Kx80-a1

19

Spacer,18.2x24x0.5

Spacer,18.2x24x0.5

Spacer,18.2x24x0.5;

20

Collar,eng sp rocket

Collar,eng sp rocket

Collar,eng sprocket;

21

Пружинное стопорное кольцо

Пружинное стопорное кольцо

Circlip;

22

2nd gear,drive shaft

2nd gear,drive shaft

2nd gear,drive shaft; Kx80-a2~

23

Shaft,output

Shaft,output

Shaft,output; Kx80-a2~

24

Circlip,20mm

Circlip,20mm

Circlip, 20mm; Kx80-a2~

25

Кольцо

Кольцо

"0" ring; Kx80-a2~
