Transmission/change drum для мотоциклов Kawasaki KX400 (1975)

Москва и регионы России

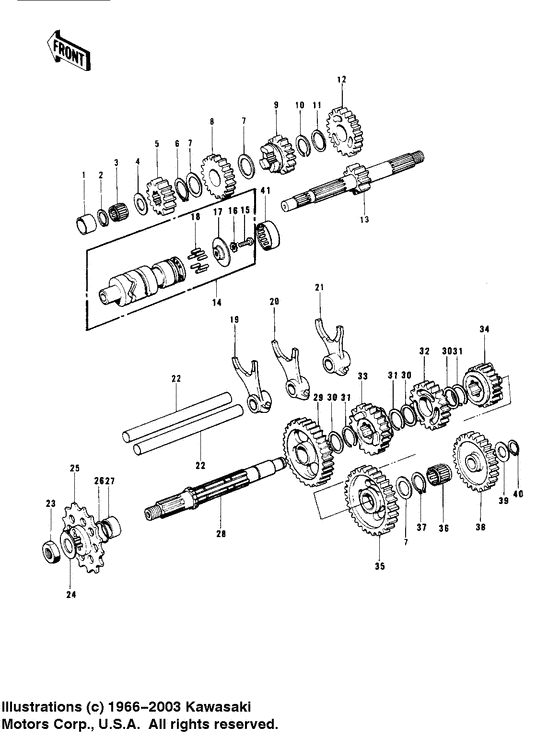

Transmission/change drum

Kawasaki KX400

Transmission/change drum

Transmission/change drum

1

2

3

4

5

6

7

7

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

22

23

24

25

26

27

28

29

30

30

30

31

31

31

32

33

34

35

36

37

38

39

40

41

#

oem код

название

цена

1

Втулка

Втулка

2

Circlip 17mm

Circlip 17mm

3

Bearing,ball,kt172313

Bearing,ball,kt172313

Bearing,ball,kt172313;

4

Шайба

Шайба

Washer,plain;

5

2nd gear,drive,13t

2nd gear,drive,13t

2nd gear,drive,13t;

6

Пружинное стопорное кольцо

Пружинное стопорное кольцо

Circlip;

7

Шайба

Шайба

8

4th gear,drive 16t

4th gear,drive 16t

4th gear,drive 16t;

9

3rd gear,drive,15t

3rd gear,drive,15t

3rd gear,drive,15t;

10

Пружинное стопорное кольцо

Пружинное стопорное кольцо

11

Шайба

Шайба

12

Top gear,drive,17t

Top gear,drive,17t

Top gear,drive,17t;

13

Shaft,drive,10t

Shaft,drive,10t

Shaft,drive,10t;

14

Капирный вал

Капирный вал

GEAR SHIFT Drum assy,gear shift;

15

ナベコネジ(+ジアナ)，6x14

ナベコネジ(+ジアナ)，6x14

замена

Screw-pan head,6x14

Screw-pan head,6x14

Screw pan head 6x14;

16

Washer lock 6mm

Washer lock 6mm

17

Держатель

Держатель

Holder,change drum;

18

Pin,gear change drum

Pin,gear change drum

Pin,chang drum;

19

Fork,selector

Fork,selector

Fork,selector;

20

Fork,selector

Fork,selector

Fork,selector;

21

Fork,selector,4th&top

Fork,selector,4th&top

Fork,selector,4th&top;

22

Тяга муфты

Тяга муфты

Rod,clutch release;

23

Гайка,18MM

Гайка,18MM

Nut 18mm;

24

Washer,lock,18mm

Washer,lock,18mm

Washer,lock,18mm;

25

Engine sprocket 15t

Engine sprocket 15t

Std

26

Кольцо

Кольцо

"o" ring;

27

Collar-eng sproket

Collar-eng sproket

28

Shaft,output

Shaft,output

Shaft,output;

29

2nd gear,output,23t

2nd gear,output,23t

2nd gear,output,23t;

30

Шайба

Шайба

31

Пружинное стопорное кольцо

Пружинное стопорное кольцо

Circlip;

32

3rd gear,output shaft

3rd gear,output shaft

3rd gear,output shaft;

33

4th gear,output 19t

4th gear,output 19t

4th gear,output 19t; Kx400, kx400-a2

34

Top gear,output,18t

Top gear,output,18t

Top gear,output,18t;

35

Low gear,output,25t

Low gear,output,25t

Low gear,output,25t;

36

Bearing-needle,kt2026

Bearing-needle,kt2026

Bearing-needle,kt2026;

37

Circlip,19mm

Circlip,19mm

Circlip,19mm;

38

Idle gear

Idle gear

39

Шайба - опора

Шайба - опора

40

Circlip,16mm

Circlip,16mm

Circlip 16mm;

41

Bearing,needle,344012

Bearing,needle,344012

Bearing,needle,344012;
