Rocker arms/valves для мотоциклов Kawasaki KL250 KLR250 (1979)

Москва и регионы России

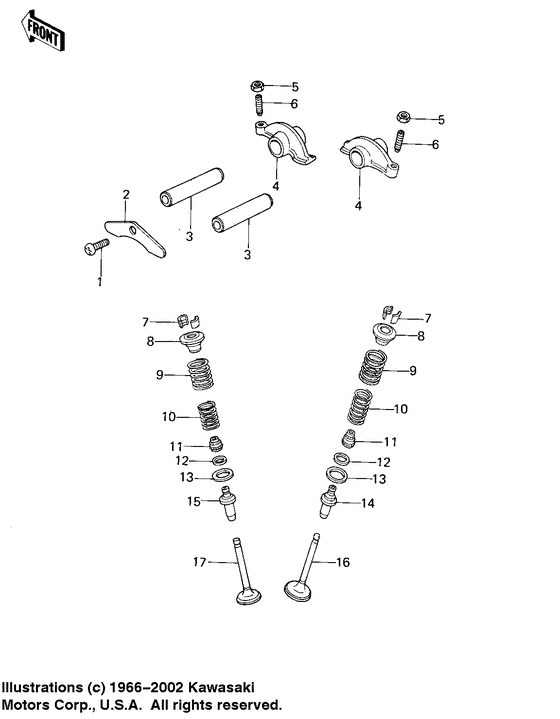

Rocker arms/valves

Kawasaki KL250 KLR250

Rocker arms/valves

Rocker arms/valves

1

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

15

16

17

#

oem код

название

цена

1

ナベコネジ(+ジアナ)，6x14

ナベコネジ(+ジアナ)，6x14

замена

Screw-pan head,6x14

Screw-pan head,6x14

Screw pan head 6x14;

2

Plate, positioning

Plate, positioning

Plate,positioning;

3

Вал

Вал

Shaft,rocker arm;

4

ア-ム

ア-ム

ロツカ

замена

Рычаг (локер)

Рычаг (локер)

Arm,rocker;

5

ナツト，6Mm

ナツト，6Mm

замена

Nut,rocker arm fiting

Nut,rocker arm fiting

Nut,rocker arm fittng;

6

Screw,slotted, rocker

Screw,slotted, rocker

Screw,slotted,rocker;

7

Конусный замок

Конусный замок

Split keeper;

8

Retainer,valve sprin

Retainer,valve sprin

Retainer,valve spring;

9

Spring,outer valve

Spring,outer valve

Spring,outer valve;

10

Spring,inner valve

Spring,inner valve

Spring,inner valve;

11

Oil seal,rv37129.5

Oil seal,rv37129.5

Oil seal,rv37129.5;

12

Seat,vlv inner spring

Seat,vlv inner spring

Seat,vlv inner spring; O.d.=23

13

Seat,valve outer spr

Seat,valve outer spr

Seat,vlv outer spring; O.d.=31

14

Guide,inlet valve

Guide,inlet valve

Guide,inlet valve;

15

Guide,exhaust valve

Guide,exhaust valve

Guide,exhaust valve;

16

Valve,inlet

Valve,inlet

Valve,inlet;

17

Клапан выхода

Клапан выхода

Valve,exhaust;
