Seat/chain cover для мотоциклов Kawasaki KE175 (1976)

Москва и регионы России

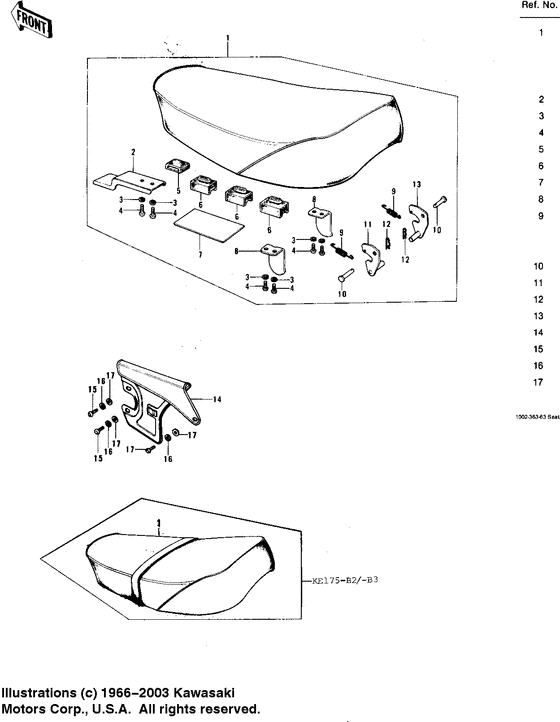

Seat/chain cover

Kawasaki KE175

Seat/chain cover

Seat/chain cover

1

1

2

3

3

3

3

3

4

4

4

4

4

5

6

6

6

7

8

8

9

9

10

10

11

12

12

13

14

15

15

16

16

16

17

17

17

17

#

oem код

название

цена

1

Seat assy,dual

Seat assy,dual

Seat assy,dual; Ke175-b1, ke175-b2/b3 whn exh use 53001-1033

2

Bracket,dual seat

Bracket,dual seat

Bracket,dual seat;

3

バネザガネ，6mm

バネザガネ，6mm

замена

Шайба пружины,6MM

Шайба пружины,6MM

Washer spring 6mm;

4

ナベコネジ(+ジアナ)，6x14

ナベコネジ(+ジアナ)，6x14

замена

Screw-pan head,6x14

Screw-pan head,6x14

Screw pan head 6x14;

5

Damper rubber,seat

Damper rubber,seat

Damper rubber,seat;

6

Damper rubber,seat

Damper rubber,seat

Damper rubber,seat;

7

Damper rubber,batery

Damper rubber,batery

Damper rubber,batery;

8

Стопор сидения

Стопор сидения

Stopper,seat;

9

Spring,hook

Spring,hook

Spring,hook; Whn exh use 53012-013

10

Pin dual seat pivot

Pin dual seat pivot

11

Hook,seat,l.h

Hook,seat,l.h

Hook,seat,l.h;

12

Pin-snap

Pin-snap

замена

Стопор

Стопор

13

Hook,seat,r.h

Hook,seat,r.h

Hook,seat,r.h;

14

Case-chain,fr black

Case-chain,fr black

Case-chain,fr black;

15

ナベコネジ(+ジアナ)，6x14

ナベコネジ(+ジアナ)，6x14

замена

Screw-pan head,6x14

Screw-pan head,6x14

Screw pan head 6x14;

16

バネザガネ，6mm

バネザガネ，6mm

замена

Шайба пружины,6MM

Шайба пружины,6MM

Washer spring 6mm;

17

Washer-plain

Washer-plain

Washer plain;
