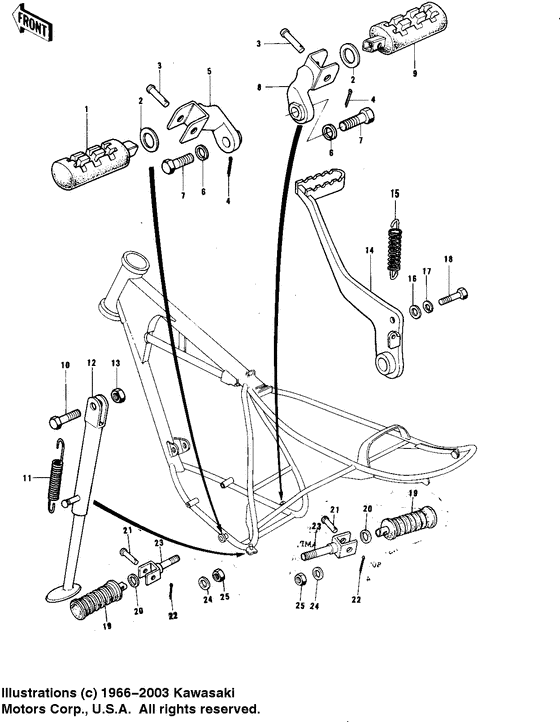

Footrests/stand/brake pedal

Kawasaki KE175

Footrests/stand/brake pedal

Footrests/stand/brake pedal

1

2

2

3

3

4

4

5

6

6

7

7

8

9

10

11

12

13

14

15

16

17

18

19

19

20

20

21

21

21

22

22

23

23

24

24

25

#

oem код

название

цена

1

Step-assy,fr,lh

Step-assy,fr,lh

Step-assy,fr,lh;

2

Шайба

Шайба

Washer,plain;

3

Pin-footrest bar fit

Pin-footrest bar fit

Pin-footrest bar fit;

4

Pin cotter 2.5x16

Pin cotter 2.5x16

5

Bracket,l.h.footrest

Bracket,l.h.footrest

Bracket,l.h.footrest;

6

Washer-spring,14mm

Washer-spring,14mm

7

Bolt-hex head,14x32

Bolt-hex head,14x32

Bolt-hex head,14x32;

8

Bracket,r.h footrest

Bracket,r.h footrest

Bracket,r.h footrest;

9

Step-assy,fr,rh

Step-assy,fr,rh

Step-assy,fr,rh;

10

Bolt,hex head 10x35

Bolt,hex head 10x35

Bolt,hex head 10x35;

11

Пружина

Пружина

Spring,side stand;

12

Стэнд боковой

Стэнд боковой

13

ロツカクナツト(コガタホソメ)，10mm

ロツカクナツト(コガタホソメ)，10mm

замена

Гайка,10MM

Гайка,10MM

Nut,10mm;

14

Pedal,brake

Pedal,brake

Pedal,brake;

15

Spring brake pedal

Spring brake pedal

16

Washer-plain

Washer-plain

Washer-plain;

17

バネザガネ，6mm

バネザガネ，6mm

замена

Шайба пружины,6MM

Шайба пружины,6MM

Washer spring 6mm;

18

Screw-pan head,6x10

Screw-pan head,6x10

19

Rubber,footrest

Rubber,footrest

Rubber,footrest; Ke175-b2/-b3

20

Washer-plain (opt)

Washer-plain (opt)

Washer-plain (opt); Ke175-b2/-b3

21

Штифт

Штифт

Ke175-b2/-b3

22

ワリピン，2.0x12

ワリピン，2.0x12

замена

Pin-cotter|pin-cotter,2.0x12

Pin-cotter|pin-cotter,2.0x12

Pin,cotter,2.0x12; Ke175-b2/-b3

23

Bracket,rear footrest

Bracket,rear footrest

Bracket,rear footrest; Ke175-b2/-b3

24

バネザガネ，10mm

バネザガネ，10mm

замена

Washer-spring,10mm

Washer-spring,10mm

Washer spring 10mm; Ke175-b2/-b3

25

ロツカクナツト(コガタホソメ)，10mm

ロツカクナツト(コガタホソメ)，10mm

замена

Гайка,10MM

Гайка,10MM

Nut,10mm; Ke175-b2/-b3
