Rear hub/brake/chain для мотоциклов Kawasaki KE175 (1978)

Москва и регионы России

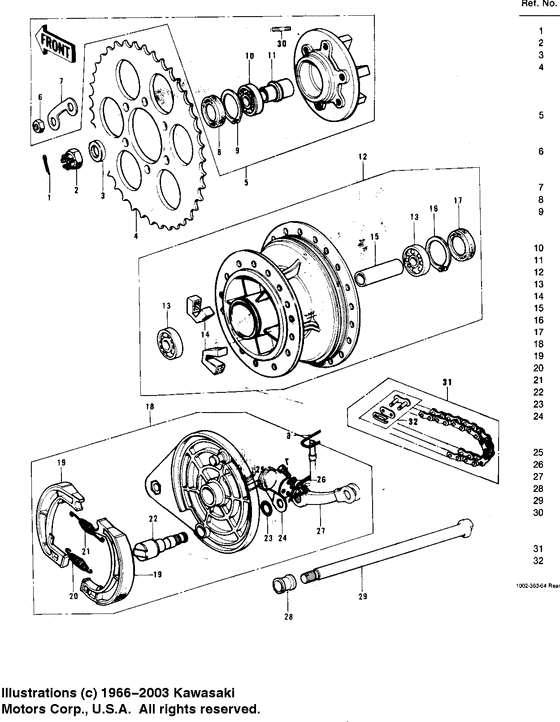

Rear hub/brake/chain

Kawasaki KE175

Rear hub/brake/chain

Rear hub/brake/chain

1

2

3

4

5

6

7

8

9

10

11

12

13

13

14

15

16

17

18

19

19

20

21

22

23

24

24

25

26

27

28

29

30

31

32

#

oem код

название

цена

1

ワリピン，4.0x35

ワリピン，4.0x35

замена

Шпонка,4.0X35

Шпонка,4.0X35

Pin-cotter,4.0x35;

2

Гайка,14MM

Гайка,14MM

Nut castle 14mm;

3

Collar,rr axle,l.h

Collar,rr axle,l.h

Collar,rr axle,l.h;

4

Rear sprocket,48t

Rear sprocket,48t

Rear sprocket,48t; Std, opt, opt, opt

5

Coupling assy,rr hub

Coupling assy,rr hub

Coupling assy,rr hub; Ke175-b1 whn exh use 42008-031, ke175-b2/b3

6

ロツカクナツト(コガタ)，8mm

ロツカクナツト(コガタ)，8mm

замена

Гайка,8MM

Гайка,8MM

Nut,8mm; Whn exh use 311b0800

7

Washer,sprocket lock

Washer,sprocket lock

Washer,sprocket lock;

8

Сальник

Сальник

Oil seal,rr hub brng;

9

Circlip,42mm

Circlip,42mm

Circlip,42mm; Whn exh use 92033-1041

10

Ball bearing,#6004c3

Ball bearing,#6004c3

Bearing ball #6004;

11

Sleeve,rr hub couplng

Sleeve,rr hub couplng

Sleeve,rr hub couplng;

12

Drum asy,rr brk,buff

Drum asy,rr brk,buff

Drum asy,rr brk,buff;

13

Ball bearing,#6202c3

Ball bearing,#6202c3

Bearing ball #6202;

14

Damper,rear hub shock

Damper,rear hub shock

Damper,rear hub shock;

15

Spacer,rr hub bearing

Spacer,rr hub bearing

Spacer,rr hub bearing;

16

Circlip,35mm

Circlip,35mm

Circlip,35mm;

17

Сальник

Сальник

замена

Сальник

Сальник

Oil seal,tcy22358;

18

Panel-asy,rr brk,buff

Panel-asy,rr brk,buff

Panel-asy,rr brk,buff;

19

Башмак

Башмак

замена

Superceded

Superceded

Shoe,brake;

20

Spring,brake shoe

Spring,brake shoe

Spring,brake shoe;

21

Spring,brake shoe

Spring,brake shoe

Spring,brake shoe;

22

Cam shaft,rear brake

Cam shaft,rear brake

Cam shaft,rear brake;

23

Кольцо

Кольцо

"0" ring,11mm;

24

Indicator,fr bk shoe

Indicator,fr bk shoe

24

Indicator,bk shoe

Indicator,bk shoe

замена

Indicator,brake shoe

Indicator,brake shoe

Indicator,fr brk pnl; Whn exh use 41085-002

25

Болт

Болт

замена

Болт

Болт

Bolt 6x22;

26

Шайба

Шайба

замена

Шайба обыкновенная,6MM

Шайба обыкновенная,6MM

Washer plain 6mm;

27

Lever,rear brake cam

Lever,rear brake cam

Lever,rear brake cam;

28

Collar,rr axle,r.h

Collar,rr axle,r.h

Collar,rr axle,r.h;

29

Axle,rear

Axle,rear

Axle,rear;

30

Stud,8x17

Stud,8x17

Stud,8x17; Whn exh use 92004-1015

31

Dr chain 428x120h

Dr chain 428x120h

Ek 428sh-g

32

Joint-chain

Joint-chain
