Carburetor assy для мотоциклов Kawasaki KE175 (1980)

Москва и регионы России

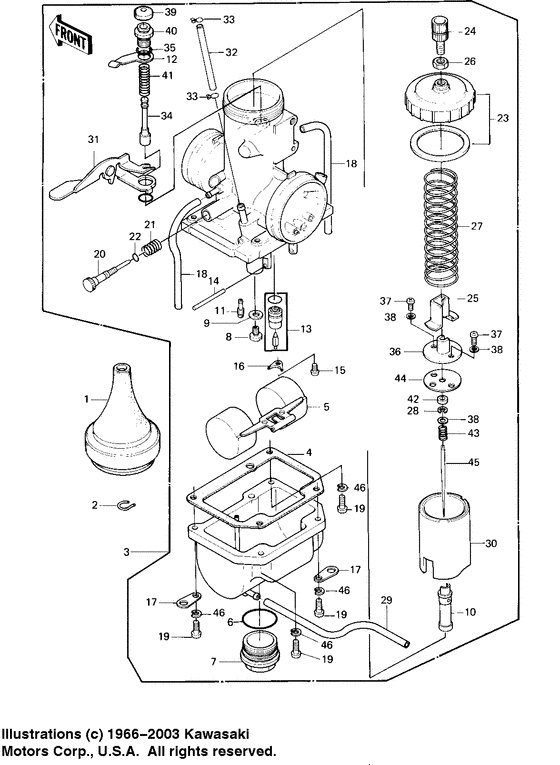

Carburetor assy

Kawasaki KE175

Carburetor assy

Carburetor assy

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

17

18

18

19

19

19

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

33

34

35

36

37

37

38

38

38

39

40

41

42

43

44

45

46

46

46

46

#

oem код

название

цена

1

Boot,carburetor

Boot,carburetor

Boot,carburetor;

2

Пружинное стопорное кольцо

Пружинное стопорное кольцо

Circlip;

3

Карбюратор

Карбюратор

4

Прокладка

Прокладка

замена

Superceded

Superceded

Gasket,float chamber;

5

Поплавок

Поплавок

6

Кольцо

Кольцо

"0" ring;

7

Cover,float chamber

Cover,float chamber

Cover,float chamber;

8

Main jet.#102.5r

Main jet.#102.5r

Main jet,#a102.5; (racing use only), (racing use only), (racing use only), (racing use only)

9

Шайба

Шайба

Washer main jet;

10

Жиклер

Жиклер

11

Pilot jet,#22.5

Pilot jet,#22.5

Pilot jet,#22.5;

12

Spring plate,starter

Spring plate,starter

Spring plate,starter;

13

Valve assy,float

Valve assy,float

Valve assy,float;

14

Поплавок

Поплавок

замена

Поплавок

Поплавок

Float pin;

15

ナベコネジ(+ジアナ)，4x8

ナベコネジ(+ジアナ)，4x8

замена

Винт

Винт

Screw pan head 4x8;

16

Ключ-чека

Ключ-чека

Plate, lock;

17

Plate,tube

Plate,tube

замена

Плата

Плата

Plate,tube clamp;

18

Tube,3x5x300

Tube,3x5x300

замена

Tube,3x5x100

Tube,3x5x100

Tube,3x5x100;

19

ナベコネジ(+ジアナ)，4x16

ナベコネジ(+ジアナ)，4x16

замена

Винт

Винт

Screw pan head 4x16;

20

Screw,throttle adjst

Screw,throttle adjst

Screw,throttle adjst;

21

Пружина

Пружина

Spring,throttle adjst;

22

Кольцо

Кольцо

"0" ring;

23

Cap-mixing chamber

Cap-mixing chamber

24

Adjuster,cable

Adjuster,cable

Adjuster,cable;

25

Cover,throttle valve

Cover,throttle valve

Cover,throttle valve;

26

Гайка

Гайка

Nut-cable adjust lock;

27

Spring,throttle valv

Spring,throttle valv

Spring,throttle valv;

28

Пружинное стопорное кольцо

Пружинное стопорное кольцо

Circlip;

29

Tube,3x5x300

Tube,3x5x300

Tube,3x5x300;

30

Valve,throttle ca2.0

Valve,throttle ca2.0

Valve,throttle ca2.0;

31

Lever,starter plunger

Lever,starter plunger

Lever,starter plunger;

32

Pipe,fuel

Pipe,fuel

Pipe,fuel;

33

Clamp-pipe

Clamp-pipe

Clamp-pipe;

34

Плунжер,стартер

Плунжер,стартер

Plunger,starter;

35

`o` ring,9mm

`o` ring,9mm

"o" ring,9mm;

36

Connector,throttle

Connector,throttle

Connector,throttle;

37

Screw,pan head,3x14

Screw,pan head,3x14

Screw,pan head,3x14;

38

Washer,throttle valve

Washer,throttle valve

Washer,throttle valve;

39

Cap,starter plunger

Cap,starter plunger

Cap,starter plunger;

40

Cap,starter plunger

Cap,starter plunger

Cap,starter plunger;

41

Spring,starter plung

Spring,starter plung

Spring,strtr plunger;

42

Ring,jet needle

Ring,jet needle

Ring,jet needle;

43

Spring,jet needle

Spring,jet needle

Spring,jet needle;

44

Plate,throttle valve

Plate,throttle valve

Plate,throttle valve;

45

Jet needle, 5ct34

Jet needle, 5ct34

Jet needle, 5ct34;

46

Шайба пружины

Шайба пружины

замена

Washer-spring,4mm

Washer-spring,4mm

Washer spring 4mm;
