Meters/ignition switch/headlight для мотоциклов Kawasaki KE125 (1979)

Москва и регионы России

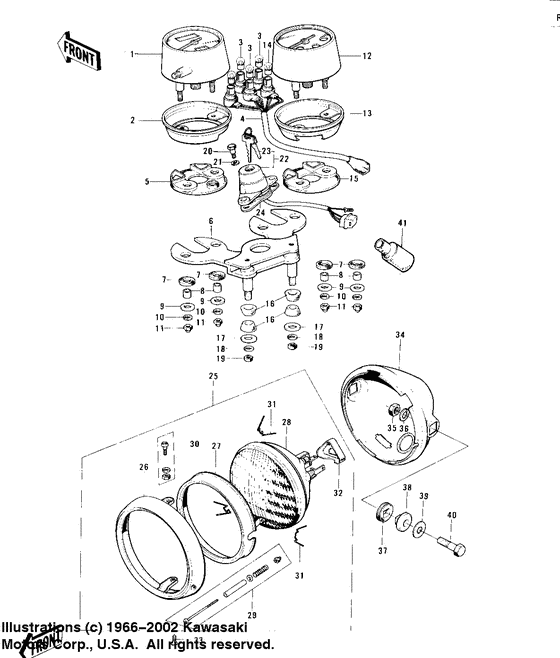

Meters/ignition switch/headlight

Kawasaki KE125

Meters/ignition switch/headlight

Meters/ignition switch/headlight

1

2

3

3

3

4

5

6

7

7

7

8

8

9

9

9

11

11

11

12

13

14

15

16

16

17

17

18

18

19

19

20

21

22

23

23

24

25

26

27

28

29

30

31

31

32

34

35

36

37

38

39

40

41

#

oem код

название

цена

1

Speedometer assy,mph

Speedometer assy,mph

Speedometer assy,mph;

2

Cover-speedometer

Cover-speedometer

3

Bulb 6v 3w

Bulb 6v 3w

замена

Bulb 6v 1.5w

Bulb 6v 1.5w

Bulb 6v 1.5w;

4

Socket,speedometer

Socket,speedometer

Socket,speedometer;

5

Shock damper,meter

Shock damper,meter

Shock damper,meter;

6

Кронштейн измерителя

Кронштейн измерителя

Bracket,meter;

7

Damper rubber,meter

Damper rubber,meter

Damper rubber,meter;

8

Collar,meter fitting

Collar,meter fitting

Collar,meter fitting;

9

Washer,plain,5m/m

Washer,plain,5m/m

Washer pl 5.2x18x1.2;

11

Nut-cap,5mm

Nut-cap,5mm

Nut-cap,5mm;

12

Тахометр

Тахометр

13

Cover,tachometer

Cover,tachometer

Cover,tachometer;

14

Bulb 6v 3w

Bulb 6v 3w

Bulb-6v 3w;

15

Damper rubber,meter

Damper rubber,meter

Damper rubber,meter;

16

Damper rubber,meter

Damper rubber,meter

Damper rubber,meter;

17

Washer-plain

Washer-plain

Washer 6.5x22x1.6t;

18

バネザガネ，6mm

バネザガネ，6mm

замена

Шайба пружины,6MM

Шайба пружины,6MM

Washer spring 6mm;

19

ロツカクナツト，6mm

ロツカクナツト，6mm

замена

Гайка,6MM

Гайка,6MM

Nut 6mm;

20

Bolt-hex head,6mm

Bolt-hex head,6mm

Bolt-hex head,6mm;

21

ヒラザガネ(コガタマル)，8mm

ヒラザガネ(コガタマル)，8mm

замена

Washer-plain,8mm

Washer-plain,8mm

Washer plain 8mm;

22

Switch assy.ignition

Switch assy.ignition

Ke125-a6, use for canadian market

23

Key set #431

Key set #431

Ke125-a3/a4/a5, ke125-a3/a4/a5, ke125-a6, ke125-a6, ke125-a6, ke125-a6

24

Дэмпфер

Дэмпфер

25

Lamp unit,head

Lamp unit,head

Lamp unit,head;

26

Rim,head lamp

Rim,head lamp

Rim,head lamp;

27

Retainer,seald beam

Retainer,seald beam

Retainer,sealed beam;

28

Фара

Фара

Sealed beam unit;

29

Screw assy,focus ajst

Screw assy,focus ajst

Screw assy,focus ajst;

30

Screw set,lens unit

Screw set,lens unit

Screw set,lens unit;

31

Clamp,head lamp lens

Clamp,head lamp lens

Clamp,head lamp lens;

32

Cover,hd lamp socket

Cover,hd lamp socket

Cover,hd lamp socket;

33

スクリユ-，5x14

スクリユ-，5x14

33

ナベコネジ(+ジアナ)，5x12

ナベコネジ(+ジアナ)，5x12

замена

Screw,pan head,5x14

Screw,pan head,5x14

Screw,pan head,5x14;

34

Body,head lamp,f.blak

Body,head lamp,f.blak

Body,head lamp,f.blak;

35

ロツカクナツト(コガタホソメ)，10mm

ロツカクナツト(コガタホソメ)，10mm

замена

Гайка,10MM

Гайка,10MM

Nut,10mm;

36

バネザガネ，10mm

バネザガネ，10mm

замена

Washer-spring,10mm

Washer-spring,10mm

Washer spring 10mm;

37

Дэмпфер

Дэмпфер

38

Манжета

Манжета

39

Шайба

Шайба

замена

Washer-plain,10mm

Washer-plain,10mm

Washer-plain,10mm;

40

Bolt,hex head,10x30

Bolt,hex head,10x30

Bolt,hex head,10x30;

41

Cover,wiring harness

Cover,wiring harness

Cover,wiring harness;
