Front hub/brake для мотоциклов Kawasaki KDX80 (1980)

Москва и регионы России

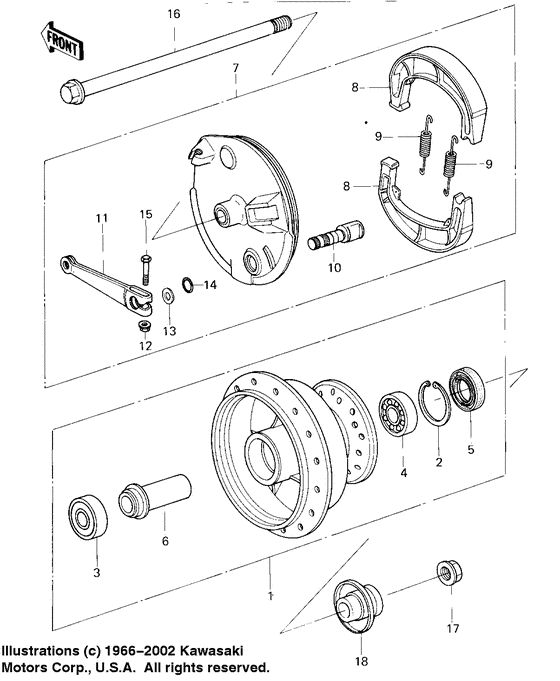

Front hub/brake

Kawasaki KDX80

Front hub/brake

Front hub/brake

1

2

3

4

5

6

7

8

8

9

9

10

11

12

13

14

15

16

17

18

#

oem код

название

цена

1

Drum-assy,fr brk

Drum-assy,fr brk

Drum-assy,fr brk;

2

Circlip,35mm

Circlip,35mm

Circlip,35mm;

3

Bearing,ball,#6200u

Bearing,ball,#6200u

Bearing,ball,#6200u;

4

Bearing,ball,#6300

Bearing,ball,#6300

Bearing,ball,#6300;

5

Oil seal,20x35x7

Oil seal,20x35x7

Oil seal,20x35x7;

6

Collar,front brake

Collar,front brake

Collar,front brake;

7

Panel-asy,fr brk

Panel-asy,fr brk

Panel-asy,fr brk;

8

Shoe-brake

Shoe-brake

замена

superceded

superceded

Shoe,brake;

9

Spring,brake shoe

Spring,brake shoe

Spring,brake shoe;

10

Cam,brake,front

Cam,brake,front

Cam,brake,front;

11

Lever,brake cam,front

Lever,brake cam,front

Lever,brake cam,front;

12

Гайка,6MM

Гайка,6MM

Nut,6mm;

13

Шайба

Шайба

14

`o` ring,12mm

`o` ring,12mm

"o" ring,12mm;

15

Bolt,hex head,6x30

Bolt,hex head,6x30

Bolt,hex head,6x30;

16

Axle,front

Axle,front

Axle,front;

17

Гайка,10MM

Гайка,10MM

Nut,10mm;

18

Collar,front axle

Collar,front axle

Collar,front axle;
