Вилка передней оси для мотоциклов Kawasaki KD80 (1976)

Москва и регионы России

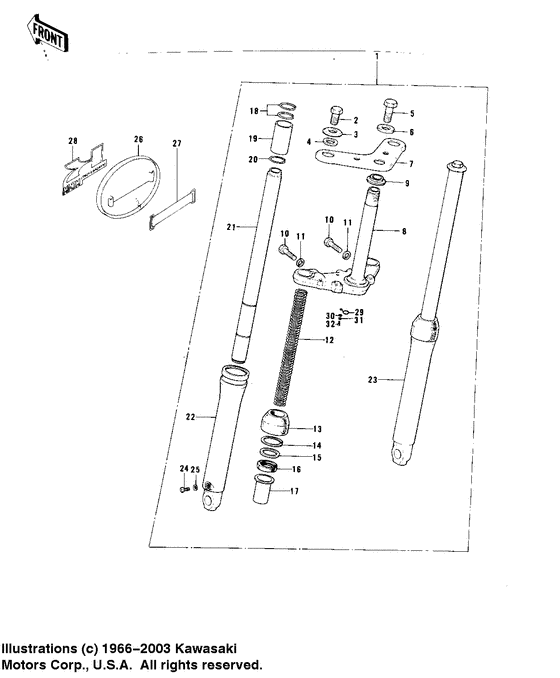

Вилка передней оси

Kawasaki KD80

Вилка передней оси

Вилка передней оси

1

2

3

4

5

6

7

8

9

10

10

11

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

#

oem код

название

цена

1

Fork-front

Fork-front

2

Болт

Болт

3

Шайба

Шайба

4

Gasket,fork top bolt

Gasket,fork top bolt

Gasket,fork top bolt;

5

Bolt-upset,10x30

Bolt-upset,10x30

Bolt-upset,10x30;

6

Шайба

Шайба

7

Head,steering

Head,steering

Head,steering;

8

Stem,steering

Stem,steering

Stem,steering;

9

Cone-lower bearing

Cone-lower bearing

Cone lower bearing;

10

Bolt,hex head 10x35

Bolt,hex head 10x35

Bolt,hex head 10x35;

11

バネザガネ，10mm

バネザガネ，10mm

замена

Washer-spring,10mm

Washer-spring,10mm

Washer spring 10mm;

12

Spring,fork inner

Spring,fork inner

Spring,fork inner;

13

Seal,outer tube

Seal,outer tube

замена

Superceded

Superceded

Dust shield,fork;

14

Circlip,40mm

Circlip,40mm

Circlip,40mm;

15

Washer,fork outer tub

Washer,fork outer tub

Washer,fork outer tub;

16

Seal-oil,outer tube

Seal-oil,outer tube

Seal-oil,outer tube;

17

Guide,fork inner tube

Guide,fork inner tube

Guide,fork inner tube;

18

Ring,inner tube guide

Ring,inner tube guide

Ring,inner tube guide;

19

Piston,fork

Piston,fork

Piston,fork;

20

Circlip,fork piston

Circlip,fork piston

Circlip,fork piston;

21

Tube,fork inner

Tube,fork inner

Tube,fork inner;

22

Tube,lh,fork outer

Tube,lh,fork outer

Tube,lh,fork outer;

23

Tube,rh,fork outer

Tube,rh,fork outer

Tube,rh,fork outer;

24

ナベコネジ(+ジアナ)，4x6

ナベコネジ(+ジアナ)，4x6

замена

Screw-pan-cros,4x6

Screw-pan-cros,4x6

Screw pan head 4x6;

25

Gasket,fork drain plg

Gasket,fork drain plg

Gasket,fork drain plg;

26

Plate,front number

Plate,front number

Plate,front number;

27

Band-battery

Band-battery

Band battery;

28

Emblem,number plate

Emblem,number plate

Emblem,number plate; Kd80-a2

29

Clamp-cable

Clamp-cable

Clamp-cable; Kd80-a2

30

ヒラザガネ(ミガキマル)，6.5x13x1

ヒラザガネ(ミガキマル)，6.5x13x1

замена

Шайба обыкновенная,6MM

Шайба обыкновенная,6MM

Washer plain 6mm; Kd80-a2

31

バネザガネ，6mm

バネザガネ，6mm

замена

Шайба пружины,6MM

Шайба пружины,6MM

Washer spring 6mm; Kd80-a2

32

Болт

Болт

замена

Болт

Болт

Bolt-upset,6x12; Kd80-a2
