Crankshaft/piston/rotary valve для мотоциклов Kawasaki KD175 (1979)

Москва и регионы России

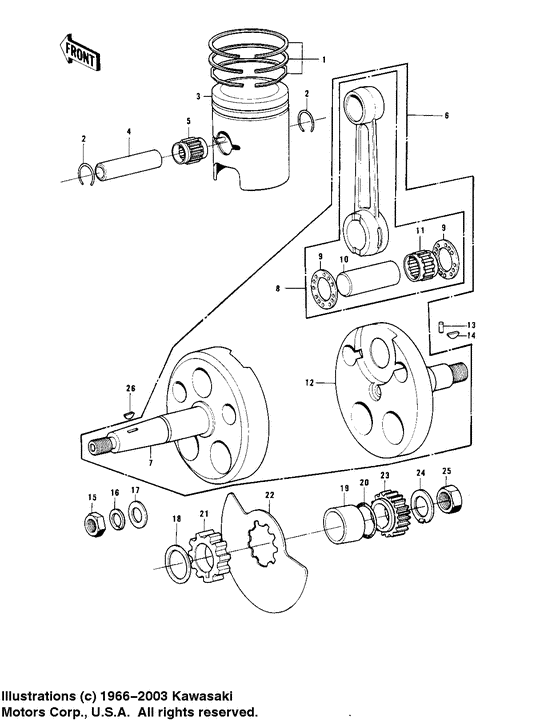

Crankshaft/piston/rotary valve

Kawasaki KD175

Crankshaft/piston/rotary valve

Crankshaft/piston/rotary valve

1

2

2

3

4

5

6

7

8

9

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

#

oem код

название

цена

1

Ring set,std

Ring set,std

Ring set,std;

2

Circlip-piston pin

Circlip-piston pin

Circlip piston pin;

3

Piston,std

Piston,std

Piston,std;

4

Палец поршня

Палец поршня

5

Bearing,small end

Bearing,small end

Bearing,small end;

6

Вал коленчатый

Вал коленчатый

7

Crankshaft,l.h

Crankshaft,l.h

Crankshaft,l.h;

8

Connecting rod set

Connecting rod set

9

Washer-side

Washer-side

Washer side;

10

Crank pin

Crank pin

11

Bearing,big end

Bearing,big end

Bearing,big end;

12

Crank - conrod assy

Crank - conrod assy

замена

Crankshaft,r.h

Crankshaft,r.h

Crankshaft,r.h;

13

Pin-dowel,4x10

Pin-dowel,4x10

Pin dowel 4x10;

14

Ключ

Ключ

Woodruff key pry pini;

15

Гайка 14MM

Гайка 14MM

16

Washer-spring,14mm

Washer-spring,14mm

17

Washer-plain,14mm

Washer-plain,14mm

Washer-plain,14mm;

18

Collar-crankshaft

Collar-crankshaft

19

Collar,25x32x10.5

Collar,25x32x10.5

Collar,25x32x10.5;

20

"0" ring,22mm

"0" ring,22mm

"0" ring,22mm;

21

Collar,crankshaft

Collar,crankshaft

замена

Superceded

Superceded

Collar,disc vlv;

22

Valve,rotary disc

Valve,rotary disc

Valve,rotary disc;

23

Pinion,primary

Pinion,primary

Pinion,primary;

24

Washer,lock,18mm

Washer,lock,18mm

Washer,lock,18mm;

25

Гайка,18MM

Гайка,18MM

Nut 18mm;

26

Ключ

Ключ

Woodruff key;
