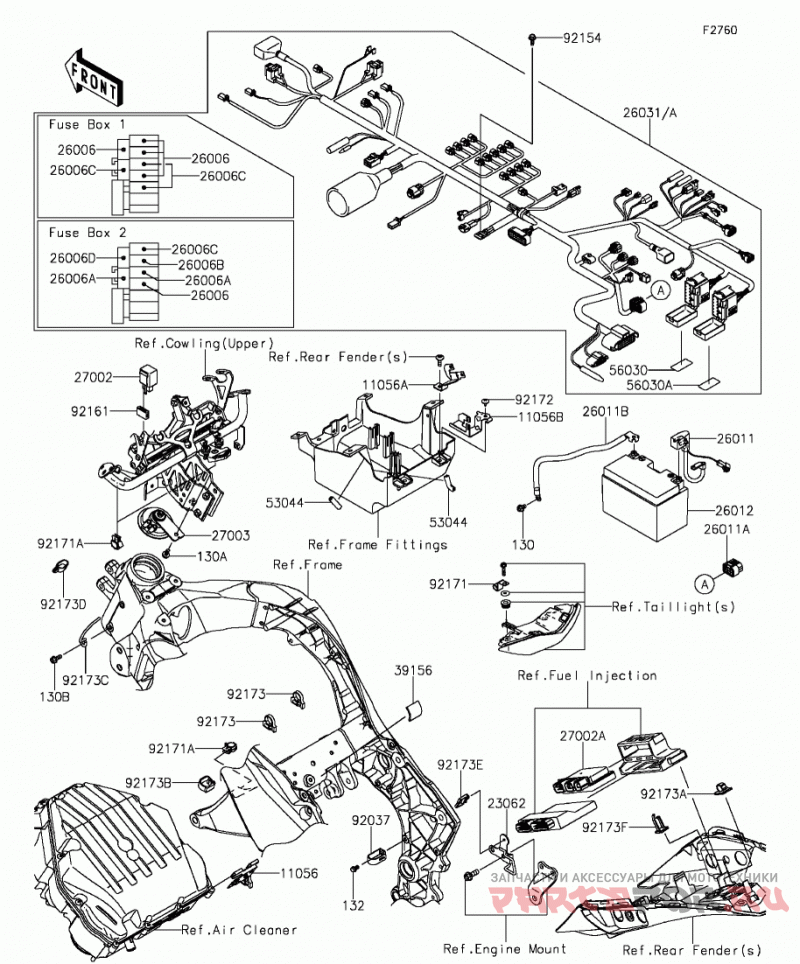

Chassis electrical equipment(1 / 2)

Kawasaki (Америка) Ninja 1000 ABS

Kawasaki (Америка)
#oem кодцена
11056
11056-2434
BRACKET,SPEED SENSOR
11056A
11056-2992
BRACKET,RR SIGNAL
11056B
11056-3924
BRACKET,BATTERY(+)
130
130BA0610
BOLT-FLANGED,6X10
130A
130BB0614
BOLT-FLANGED,6X14
130B
130BB0616
BOLT-FLANGED,6X16
23062
23062-0811
BRACKET-COMP,CABLE GUIDE
26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
26006A
26006-0020
FUSE,MINI BLADE,25A,NATURAL
26006B
26006-0052
FUSE,MINI BLADE,2A,GRAY
26006C
26006-0055
FUSE,MINI BLADE,7.5A,BROWN
26006D
26006-1080
FUSE,MINI BLADE,30A,GREEN
26011
26011-0252
WIRE-LEAD,BATTERY(+)
26011A
26011-0275
WIRE-LEAD,CONNECTOR COVER
26011B
26011-0822
WIRE-LEAD,BATTERY(-)
26012
26012-0556
BATTERY,YT12A-BS,12V
26031
26031-1704
HARNESS,MAIN
26031A
26031-1705
HARNESS,MAIN
27002
27002-0006
RELAY-ASSY,SIGNAL LAMP
27002A
27002-0025
Реле
27003
27003-0075
Сигнал
39156
39156-1766
PAD,30X30X3
53044
53044-0001
TRIM,L=30
56030
56030-0830
LABEL,FUSE BOX1
56030A
56030-0832
LABEL,FUSE BOX2
92037
92037-2014
CLAMP,CABLE,STEEL SHEET
92154
92154-0551
BOLT,FLANGED,6X16
92161
92161-0283
DAMPER,SIGNAL RELAY
92171
92171-0652
CLAMP,L=60
92171A
92171-1722
CLAMP,EDGE CLIP
92172
92172-0003
SCREW,TAPPING,6X12
92173
92173-0970
CLAMP,SNAPPER
92173A
92173-1055
CLAMP,DRAIN
92173B
92173-1156
CLAMP,HARNESS
92173C
92173-1199
CLAMP,IRON WIRE
92173D
92173-1229
CLAMP,RUBBER PLATE
92173E
92173-1242
CLAMP,CABLE CLIP
92173F
92173-1269
CLAMP,LOCKING WIRE SADDLE
