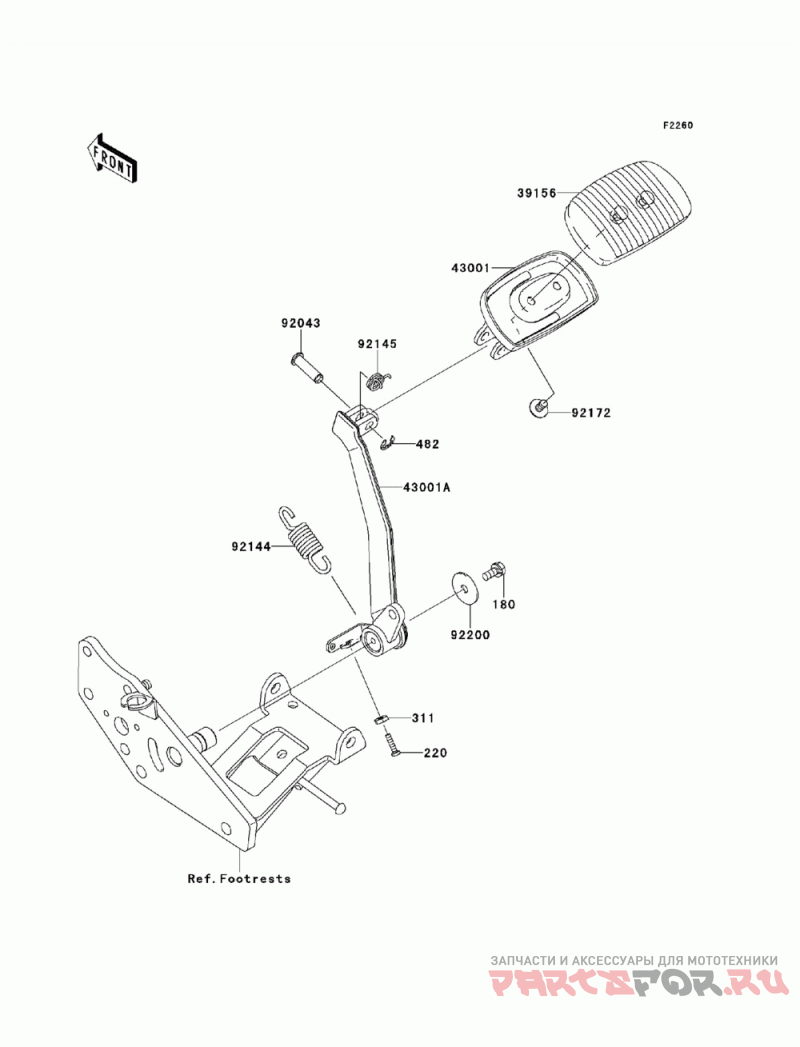

Педаль тормоза
Kawasaki (Америка) Vulcan 1700 Nomad (VN1700-CDF)
| # | oem код | название | цена |
|---|---|---|---|
180 | 180BA0614 Bolt-upset-ws, 6x14 | Bolt-upset-ws, 6x14 | |
220 | 220AB0416 Screw-pan-cross | Screw-pan-cross | |
311 | 311AB0400 Nut-hex | Nut-hex | |
482 | 482EA7000 Circlip-type-e | Circlip-type-e | |
39156 | 39156-0045 Pad, Brake Pedal | Pad, Brake Pedal | |
43001 | 43001-0023 Рычаг тормоза | Рычаг тормоза | |
92043 | 92043-0047 Pin, 8x24.5 | Pin, 8x24.5 | |
92144 | 92144-1169 Spring, Brake Pedal Re | Spring, Brake Pedal Re | |
92145 | 92145-0168 Пружина | Пружина | |
92172 | 92172-0098 Винт | Винт | |
92200 | 92200-0279 Washer, 7x28x1.6 | Washer, 7x28x1.6 | |
43001A | 43001-0102 Lever-brake, Pedal | Lever-brake, Pedal |
