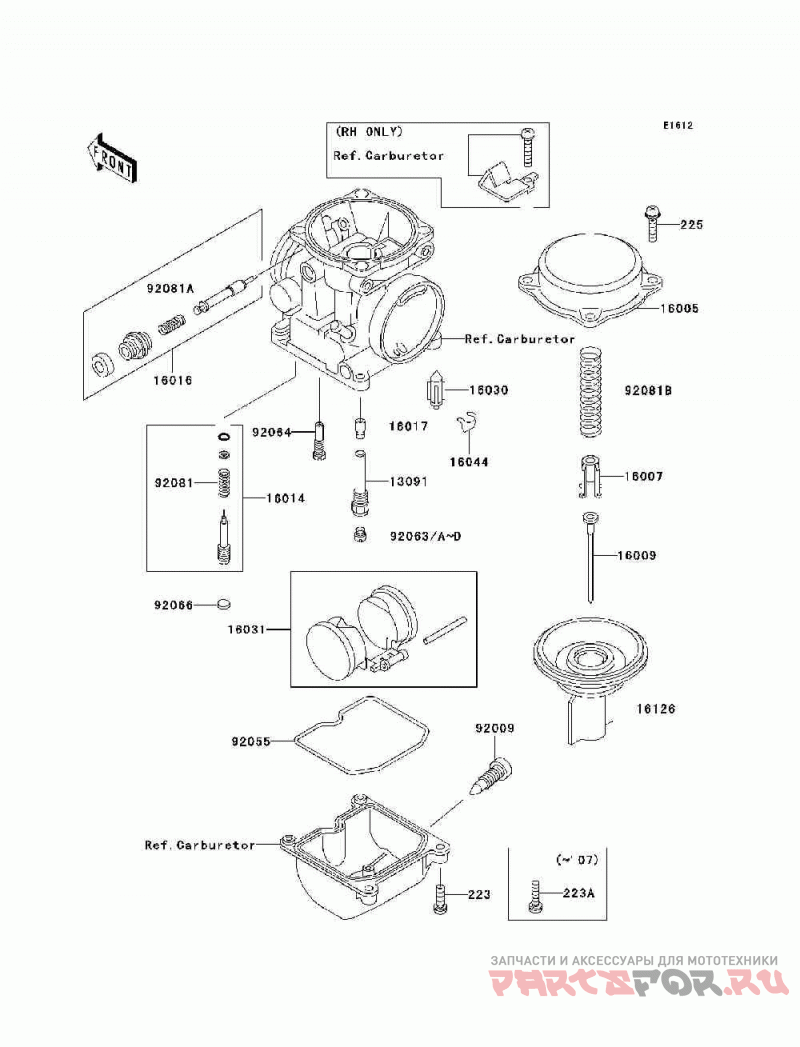

Карбюратор в разборе

Kawasaki (Америка) Ninja 500R (EX500-D8F)

Kawasaki (Америка)
#oem кодцена
223
223AA0414
Screw-pan-ws-cros
225
225AB0418
Винт
13091
13091-1406
Держатель
16005
16005-1057
Top-chamber, Mixing
16007
16007-1117
Seat-spring, Throttle
16009
16009-1342
Needle-jet, N36n
16014
16014-1081
Screw-pilot Air
16016
16016-1090
Плунжер
16017
16017-1059
Needle Jet
16030
16030-1007
Float Valve
16031
16031-1077
Поплавок
16044
16044-007
Clip, Float Valve
16126
16126-1173
Valve, Vacuum
92009
92009-1551
Винт
92055
92055-1222
Ring-o, Float Chamber
92063C
92063-1075
Main Jet, 2nd, #130
92064
92064-1101
Jet-pilot, #35
92066
92066-1051
Plug, Pilot Screw
92081
92081-1002
Spring, Pirot Adj Scrw
92081A
92081-1761
Spring, Starter Plunge
92081B
92081-1874
Spring, Vacuum Valve
92063
92063-1014
Main Jet, #135 (option)
92063A
92063-1069
Main Jet, 2nd, #125 (option)
92063B
92063-1074
Main Jet, 2nd, #128 (option)
92063D
92063-1076
Jet-main, #132 (option)
