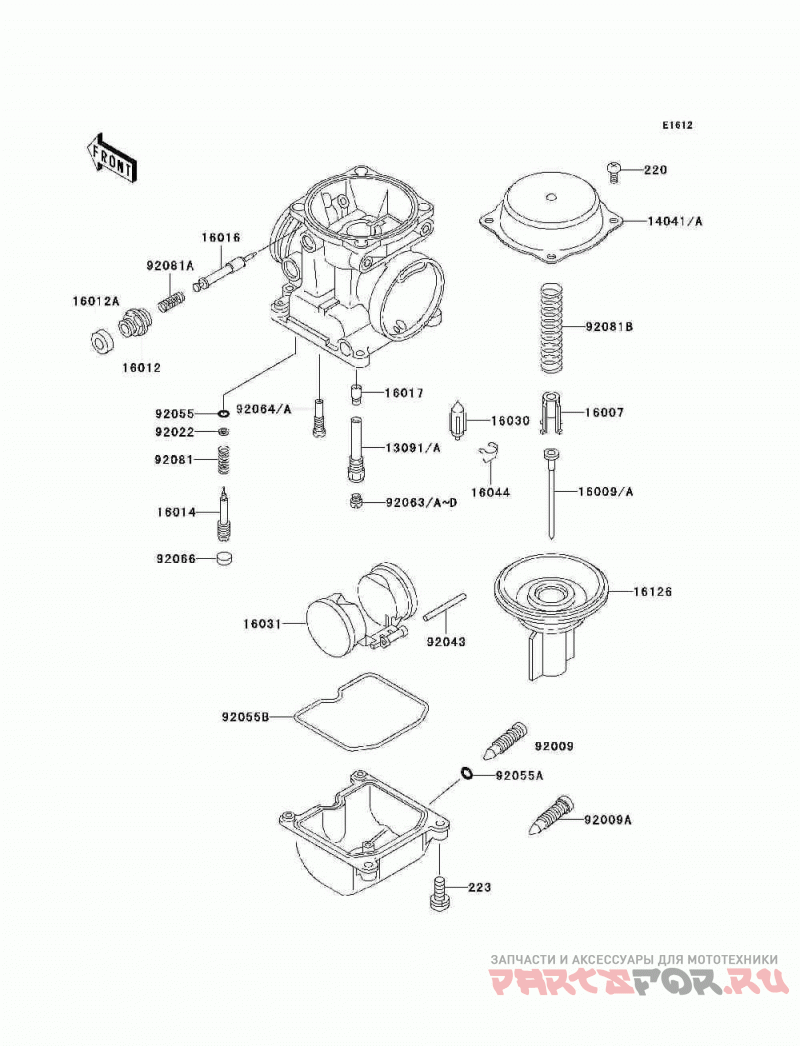

Карбюратор в разборе

Kawasaki (Америка) Voyager XII (ZG1200-B17)

Kawasaki (Америка)
#oem кодцена
13091
13091-1259
Holder, Needle Jet Cnus
13091A
13091-1463
Holder, Needle Jet Ca
14041
14041-1076
Top-chamber
16007
16007-1120
Седло пружины
16009
16009-1316
Needle-jet, N36g Cnus
16009A
16009-1561
Needle-jet, N77c Ca
16012
16012-1051
Cap-starter Plunger
16012A
16012-1052
Cap-starter Plunger
16014
16014-1054
Screw-pilot Air
16016
16016-1061
Плунжер
16017
16017-1316
Jet-needle
16030
16030-1007
Float Valve
16031
16031-1056
Поплавок
16044
16044-007
Clip, Float Valve
16126
16126-1159
Valve, Vacuum
92009
92009-1095
Винт
92009A
92009-1551
Винт
92022
92022-1003
Шайба
92043
92043-1148
Палец
92055
92055-1002
O Ring, Pilot Adj
92055A
92055-1053
"o" Ring, Dr
92055B
92055-1222
Ring-o, Float Chamber
92063
92063-1114
Jet-main #110 (racing Use Only)
92063A
92063-1009
Main Jet, #105 (racing Use Only)
92063B
92063-1115
Jet-main, #102 (racing Use Only)
92063C
92063-1116
Jet-main #108
92063D
92063-1117
Jet-main #112 (racing Use Only)
92064
92064-1101
Jet-pilot, #35 (racing Use Only)
92064A
92064-1119
Jet-pilot
92066
92066-1051
Plug, Pilot Screw
92081
92081-1002
Spring, Pirot Adj Scrw
220
220AA0408
Винт
223
223AB0416
Screw-pan-ws-cros
92081A
92081-1761
Spring, Starter Plunge
92081B
92081-1925
Spring, Vacuum Valve
