1. Главная
  2. Запчасти для мотоциклов
  3. Kawasaki (Америка)
  4. 1991
  5. KE100 (KE100-B10)

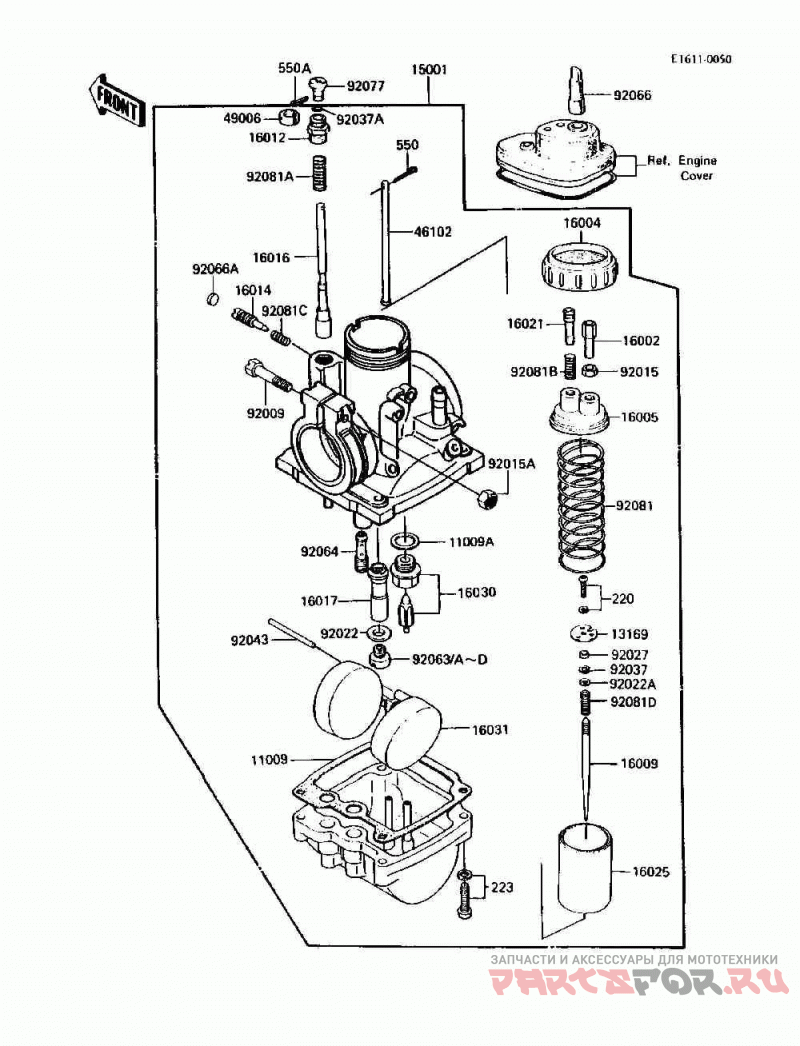

Карбюратор

Kawasaki (Америка) KE100 (KE100-B10)

Kawasaki (Америка)
#oem кодцена
11009
16019-021
Прокладка
11009A
16029-002
Washer Valve Seat
13169
13169-1676
Пластина
15001
15001-1220
Carburetor-assy
16002
16002-017
Adjuster, Cable
16004
16004-010
Cap Mixing Chamber
16005
16005-005
Top Mixing Chamber
16009
16009-1289
Needle-jet, 4ej39
16012
16012-021
Крышка
16014
16014-002
Screw Pilot Air Adjst
16016
16016-012
Плунжер
16017
16017-1299
Jet-needle, O-1
16021
16021-002
Винт
16025
16025-1013
Valv, Throttle, Ca2.0
16030
16030-001
Float Valve Assy
16031
16031-015
Поплавок
46102
16024-012
Rod, Throttle Vlv Stp
49006
16036-012
Крышка
92009
16010-004
Screw Clamp
92015
16003-004
Nut Cable Adjust Lock
92015A
92015-1026
Nut, 6m/m
92022
16034-001
Washer Main Jet
92022A
92022-1024
Washer, Throttle Valve
92027
92027-1103
Ring, Jet Needle
92037
16008-010
Пружинное стопорное кольцо
92037A
92037-1077
Пружинное стопорное кольцо
92043
16032-008
Палец
92063
92063-1030
Main Jet, #a80
92063A
92063-1032
Main Jet, #77.5r (racing Use Only)
92063B
92063-1111
Jet-main, #a75 (racing Use Only)
92063C
92063-1322
Jet-main, #a82, 5r (racing Use Only)
92063D
92063-1323
Jet-main, #a85r (racing Use Only)
92064
92064-1018
Pilot Jet, #a15
92066
16147-001
Plug, Carburetor Cap
92066A
92066-1051
Plug, Pilot Screw
92077
92077-022
Knob, Carburetor
92081
16006-013
Spring Throttle Valve
92081A
16013-010
Spring, Starter Plungr
92081B
16022-005
Spring Thr Stop Screw
92081C
16022-007
Spring-thr Stop Screw
92081D
92081-1072
Spring, Jet Needle
220
220AA0308
Винт
223
223B0418
Screw-pan-ws-cros
550
550D1210
Pin Cotter 1.2x10
550A
550D1615
Pin Cotter 1.6x15
