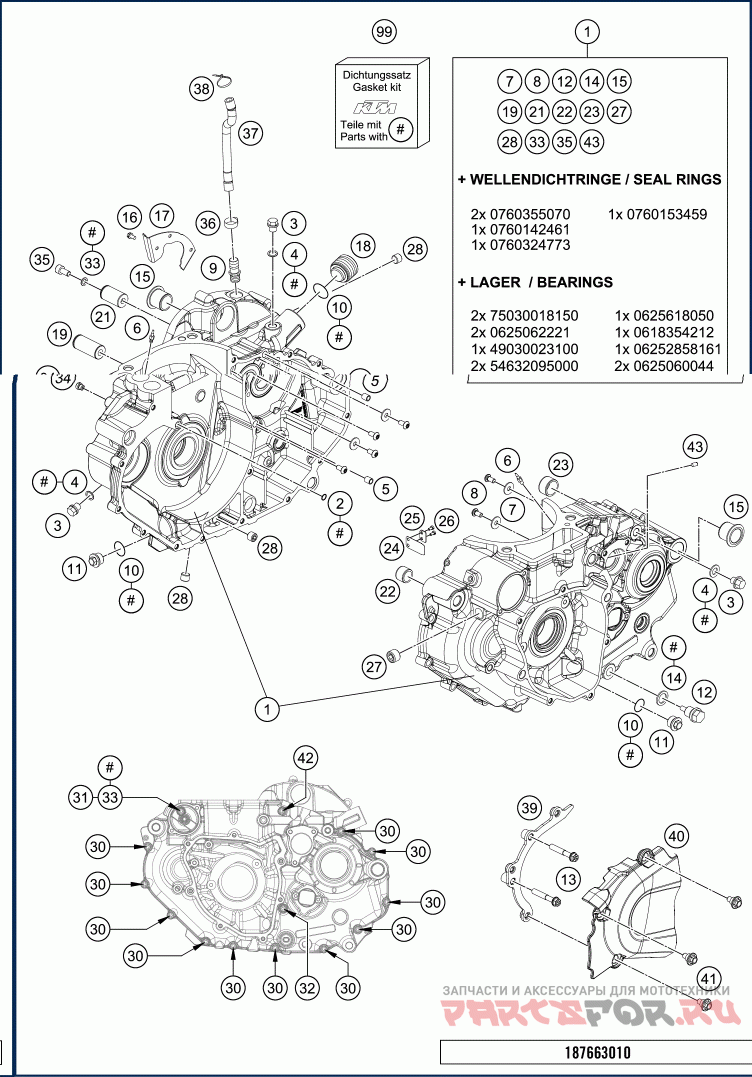

Картер двигателя

Husqvarna 2020 VITPILEN 701 ENGINE

Husqvarna
#oem кодцена
1
76630100144C1
Engine case cmpl.
10
0770180020
o-ring 18.00x2.00 NBR70
11
59038017100
PLUG M20X1,5 WS=13
12
58030021100
OILDRAIN PLUG W.MAG. M 12X1,5
13
0025060356
HH collar screw M6x35 TX30
14
58038022000
CU-SEAL RING DIN7603-12X18X1,5
15
75030010000
CASE BUSH
16
073801050105S
AH SCREW DIN7984 M5X10 A2
17
75030042000
Крышка
18
75038048100
LOCK PIECE
19
54633018400
BUSHING PIN
2
0770060018
O-RING 6,07X1,78 FPM75
21
59040028000
BUSHING PIN
22
51030026100
DOWEL 17 X 13 X 12
23
54830027000
DOWEL 21X12 03
24
75030003051
MEMBRANE 07
25
75030003050
STOP SHEET MEMBRANE 07
26
0458030080
CYLIND.SCREW M3X8 ISO 14580 SS
27
0906140150
PLUG SCREW DIN0906 - M14X1,5
28
0906100100
pipe plug DIN 906 M10x1
3
0910100003
PLUG DIN0910-M 10X1
30
0025060306
HH collar screw M6x30 TX30
31
0025060256
HH collar screw M6x25 TX30
32
0025060706
HH COLLAR SCREW M6X70 TX30
33
0603061001
CU-SEAL RING DIN7603-6X10X1
34
75030058160
JET 160
35
0025060126
AH SCREW DIN0912-M 6X12
36
00049220121
CLAMP STD DN22
37
76030086000
ENGINE EXHAUST RETURN FLOW
38
44011076200
CABLE TIE 200/3,6MM BLACK
39
75030047000
SECURING GUIDE 07
4
0603100141
sealing ring DIN 7603 10x14x1
40
75030060100
CHAIN GUARD
41
59001092050
SPECIAL SCREW M6X12,5 WS=8
42
0025060806
HH COLLAR SCREW M6X80 TX30
43
76638029030
Jet screw M4x8
5
59030023000
dowel sleeve 6x8x11.5
6
60030064050
OIL JET 50 M6X0,75 WS8 05
7
0021050003
washer DIN 9021 A - 5.3
8
073800501002
PAN HEAD SCREW M5X10 TX25
9
60030022000
VENTILATION CONNECTOR M16X1,5
99
76630099100
Gasket kit 690 Duke 18
