Рама для мотоциклов Husqvarna 2020 VITPILEN 701 CHASSIS (2020)

Москва и регионы России

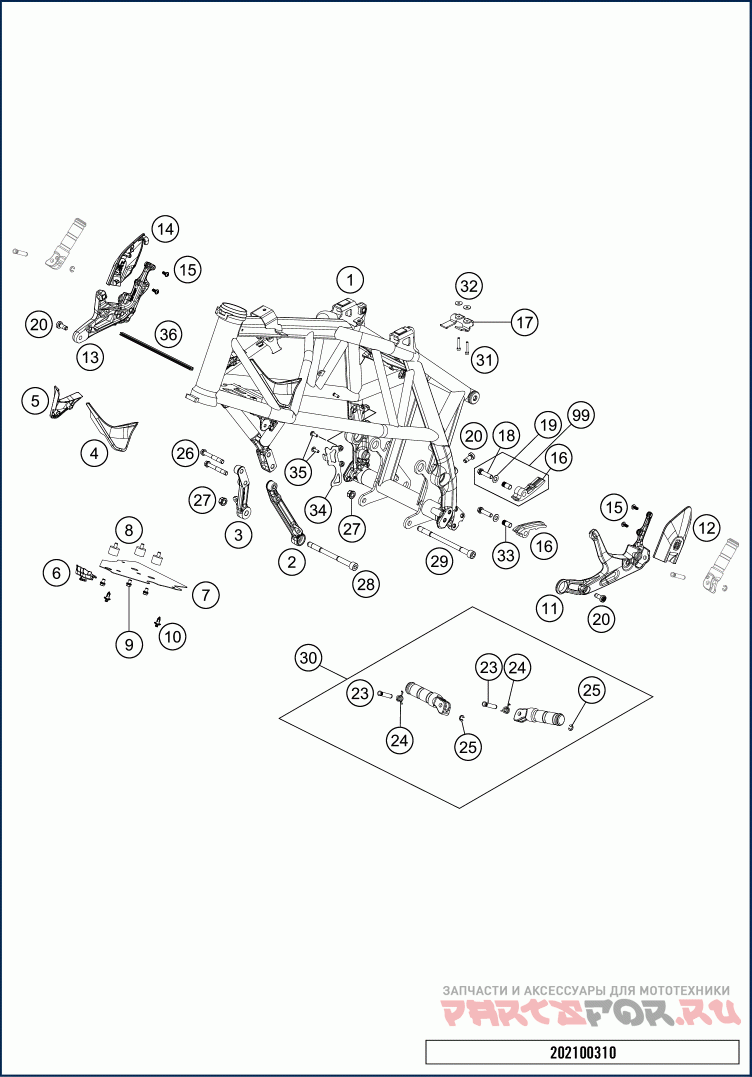

Рама

Husqvarna 2020 VITPILEN 701 CHASSIS

Рама

#

oem код

название

цена

1

Frame 210RA

Frame 210RA

10

EXPANDING RIVET CPL.

EXPANDING RIVET CPL.

11

Front footpeg bracket left

Front footpeg bracket left

12

Heelguard left

Heelguard left

13

Front footpeg bracket right

Front footpeg bracket right

14

Heelguard right

Heelguard right

15

EJOT PT screw K50x12

EJOT PT screw K50x12

16

CHAIN SLIDING PIECE 03

CHAIN SLIDING PIECE 03

17

Bracket Purge Valve

Bracket Purge Valve

18

HH COLLAR SCREW M8X30 TX40

HH COLLAR SCREW M8X30 TX40

19

washer DIN 125 A -8.4

washer DIN 125 A -8.4

2

CONNECTION BRACKET ENG. L/S 07

CONNECTION BRACKET ENG. L/S 07

20

SHCS M8x20 TX45

SHCS M8x20 TX45

23

BOLT FOR FOOTREST REAR 03

BOLT FOR FOOTREST REAR 03

24

SPRING FOOTREST FRONT 05

SPRING FOOTREST FRONT 05

25

retaining washer DIN 6799 - 6

retaining washer DIN 6799 - 6

26

CYL. SCREW DIN14579 M8X50 SS

CYL. SCREW DIN14579 M8X50 SS

27

COLLAR NUT M10 WS=13

COLLAR NUT M10 WS=13

28

SPECIAL SCREW M10X129 HEX8 08

SPECIAL SCREW M10X129 HEX8 08

29

SPECIAL SCREW M10X152 ISK8 07

SPECIAL SCREW M10X152 ISK8 07

3

CONNECTION BRACKET ENG. R/S 07

CONNECTION BRACKET ENG. R/S 07

30

Footpeg kit

Footpeg kit

31

AH SCREW DIN0912-M 4X25

AH SCREW DIN0912-M 4X25

32

SHIM 4,3X15X1,25MM GALVANIZED

SHIM 4,3X15X1,25MM GALVANIZED

33

BUSHING 8,2X10X20

BUSHING 8,2X10X20

35

SCREW M5X14 TORX 25 07

SCREW M5X14 TORX 25 07

4

Front frame cover left 2

Front frame cover left 2

5

Front frame cover right 2

Front frame cover right 2

6

Splash guard head-tube

Splash guard head-tube

7

Splash protection, head tube

Splash protection, head tube

8

silentbloc 20x15-M6x10-(1)

silentbloc 20x15-M6x10-(1)

9

HH collar screw M6x8 TX30

HH collar screw M6x8 TX30

99

CHAIN SLIDING KIT UPPER CPL.

CHAIN SLIDING KIT UPPER CPL.
