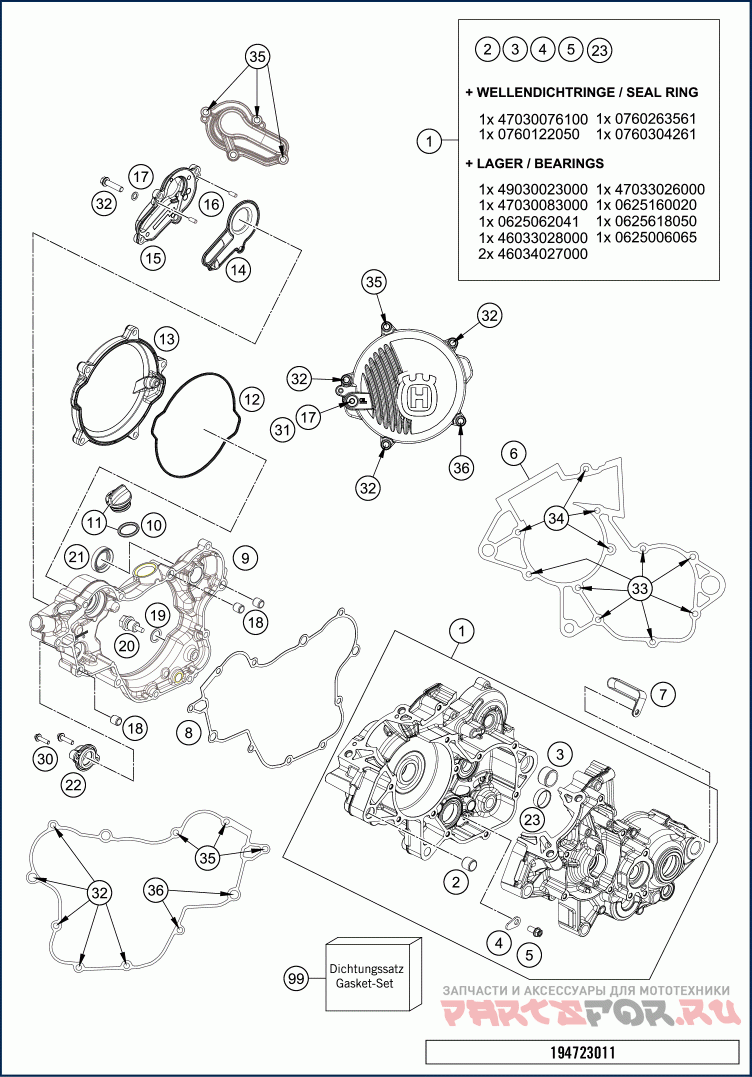

Картер двигателя

Husqvarna 2020 TC 85 ENGINE

Husqvarna
#oem кодцена
1
47230000144
Engine case cpl.
10
0770191015
O-RING 19,00X3,00 NBR
11
79430020033
OIL FILLER CAP M24x3 WITH O-R
12
47230027000
Clutchcover gasket
13
47230626100JA
Clutch cover cpl.
14
47235053000
Gasket with supportheet
15
47235052000
Waterpump cover
16
0402040980
NEEDLE ROL.DIN5402 NRB 4X9,8
17
0603061001
CU-SEAL RING DIN7603-6X10X1
18
49030090100
DOWEL 9,8 X7X10
19
58038022000
CU-SEAL RING DIN7603-12X18X1,5
2
54630027000
DOWEL BUSHING 13,8X11X12
20
58030021100
oildrain plug with magnet
21
0760193070
SHAFT SEAL RING 19X30X7 B
23
50433024050
BUSHING IDLER GEAR
3
54830027000
DOWEL 21X12 03
30
0014050203
HH COLLAR SCREW M 5X20 WS=6
31
0025060106
HH collar screw M6x10 TX30
32
0025060256
HH collar screw M6x25 TX30
33
0025060456
HH COLLAR SCREW M6X45 TX30
34
0025060506
HH collar screw M6x50 TX30
35
0025060606
HH collar screw M6x60 TX30
36
0025060556
HH collar screw M6x55 TX30
4
54634049000
RETAINING PLATE
5
0025060126
HH collar screw M6x12 TX30
6
47230039000
Crankcase cover gasket
7
55430090000
Bracket for bleeding tube
8
47230025000
Gasket inner clutch cover
9
47230001100
Inner clutch cover
99
47230099000
Gasket set 85 SX 2018
