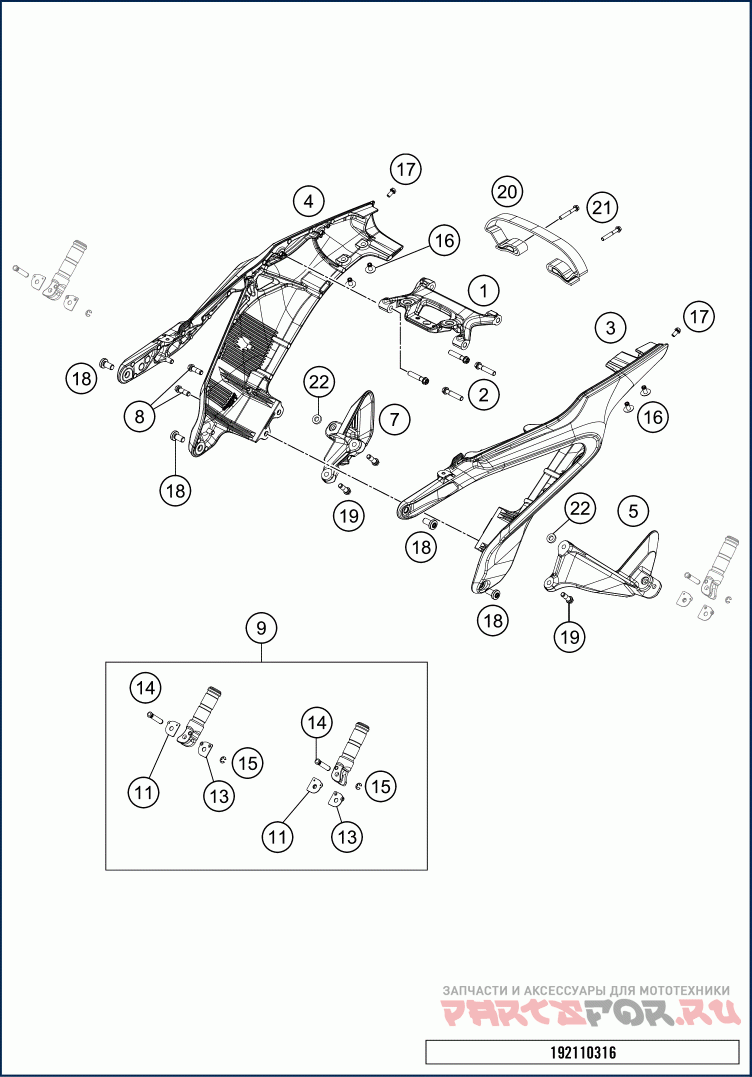

Subframe

Husqvarna 2020 SVARTPILEN 701 CHASSIS

Subframe

#

oem код

название

цена

1

Tail braceing

Tail braceing

11

ENGAGE PANEL FOOTREST L/S 03

ENGAGE PANEL FOOTREST L/S 03

13

ENGAGE PANEL FOOTREST R/S 03

ENGAGE PANEL FOOTREST R/S 03

14

BOLT FOR FOOTREST REAR 03

BOLT FOR FOOTREST REAR 03

15

retaining washer DIN 6799 - 6

retaining washer DIN 6799 - 6

16

Заглушка

Заглушка

17

HH collar screw M6x12 TX30

HH collar screw M6x12 TX30

18

AH-COLLAR SCREW M10X20 ISA45

AH-COLLAR SCREW M10X20 ISA45

19

AH-COLLAR SCREW M8X30 ISA45

AH-COLLAR SCREW M8X30 ISA45

2

HH COLLAR SCREW M8X40 TX40

HH COLLAR SCREW M8X40 TX40

20

Seat pulling strap

Seat pulling strap

21

HH collar screw M6x40 TX30

HH collar screw M6x40 TX30

22

Регулировочная прокладка

Регулировочная прокладка

3

Subframe left

Subframe left

4

Subframe right

Subframe right

5

Rear footpeg bracket left

Rear footpeg bracket left

7

Rear footpeg bracket right

Rear footpeg bracket right

8

HH COLLAR SCREW M8X25 WS=10

HH COLLAR SCREW M8X25 WS=10

9

Footpeg set

Footpeg set
