Передняя вилка

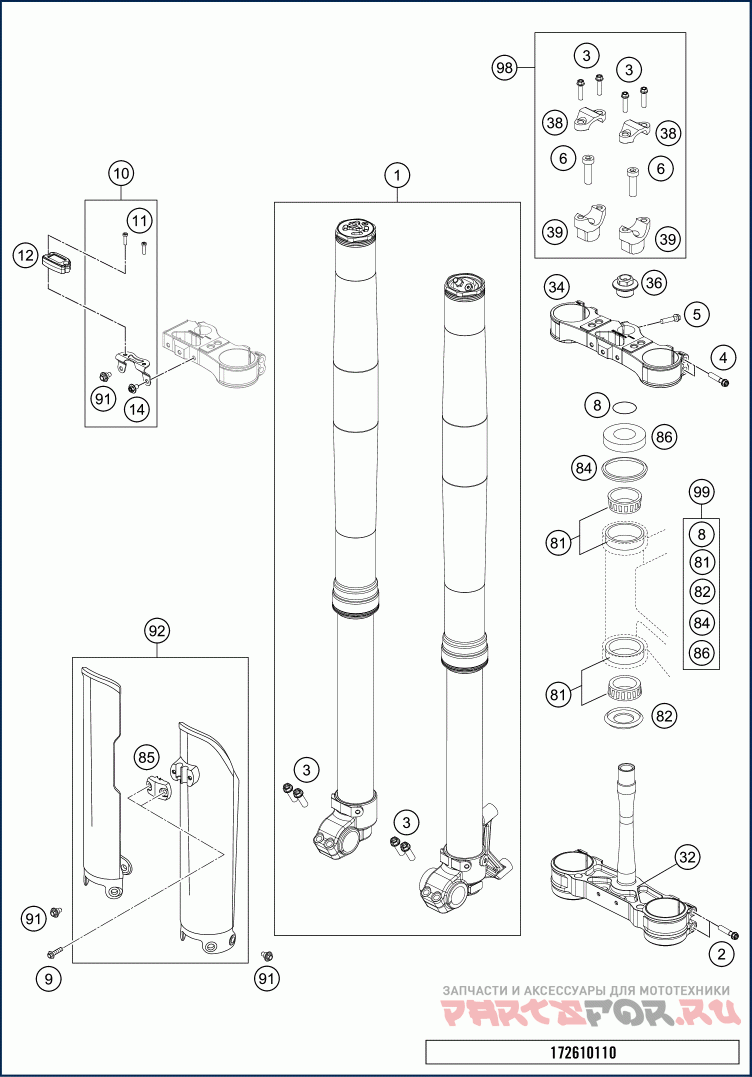

Husqvarna 2020 FS 450 CHASSIS

Husqvarna
#oem кодцена
1
34158T0801
Fork HQV FS 450 2020
10
78112920044
HOURMETER BRACKET TTV
11
0912040163
AH SCREW DIN0912-M 4X16
12
81312920000
HOURMETER
14
0024060106
HH COLLAR SCREW M6X10 TX30
2
0025080506
HH collar screw M8x50 TX40
3
0025080256
HH collar screw M8x25
32
2610103201630
LOWER TRIPLE CLAMP CPL. BLACK
34
7890103411630
TOP TRIPLE CLAMP SMR X=16MM
36
70009082000
AXLESCREW M20X1.5 SW17
38
77201038000
HANDLEBAR CLAMP 28MM
39
59401039032
HANDLEB.SUPP. D=28MM H=32MM 05
39
59401039037
HANDLEB.SUPP. D=28MM H=37MM 05
39
59401039042
HANDLEB.SUPP. D=28MM H=42MM 05
39
59401039047
HANDLEB.SUPP. D=28MM H=47MM 05
4
0025080406
HH COLLAR SCREW M8X40 TX40
5
0025080256S
HH COLLAR SCREW M8X25 TX40
6
0032100356S
AH-COLLAR SCREW M10X35 ISA45
8
0770025035
O-RING 25X3,55 NBR70 05
81
54201081100
TAPERED ROLLER BEARING CPL. 06
82
77701084000
O-RING SUPPORT W. SEALING LIP
84
54601184000
STEARING HEAD GASKET TOP
85
59001085100DB
Clamp for brake tube
86
78101086000
STEERING HEAD COVER
9
0017060206
SCREW F. PLASTIC K60X20AL SW6
91
59001092050
SPECIAL SCREW M6X12,5 WS=8
92
59001094100DB
Fork protection set yellow
98
00050000921
HANDLEBAR SUPPORT KIT D28/H37
99
00050000930
STEARING HEAD REP. KIT 06-15
