Тормозной цилиндр задний для мотоциклов Husqvarna 2020 FE 501s CHASSIS (2020)

Москва и регионы России

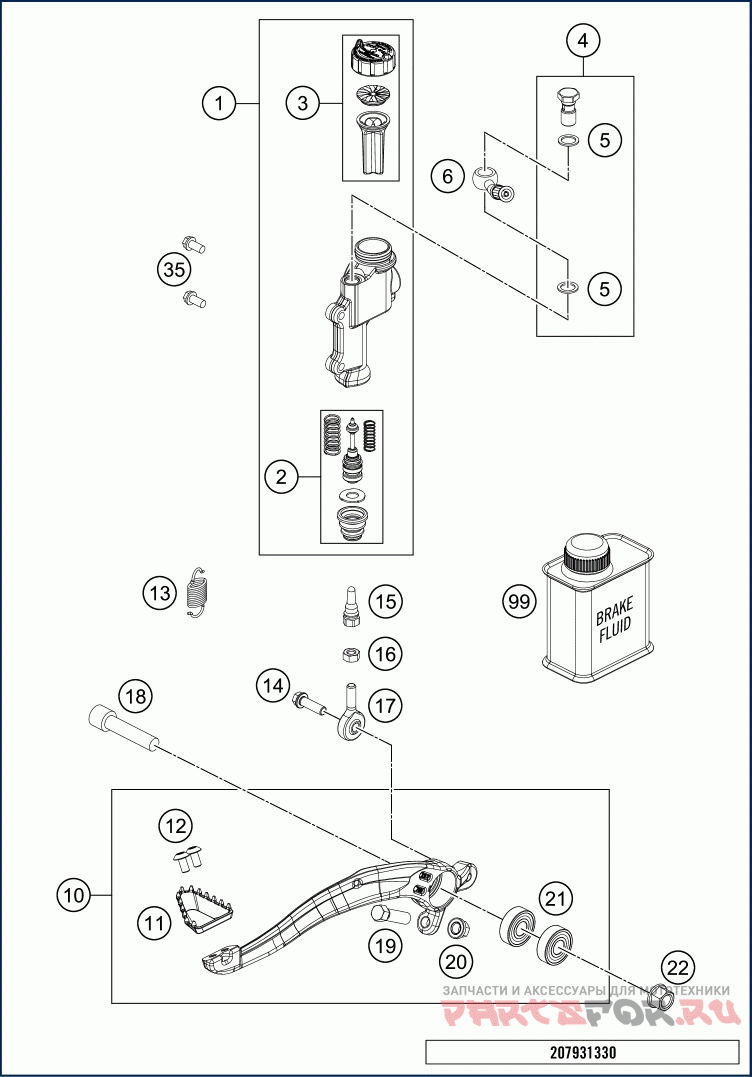

Тормозной цилиндр задний

Husqvarna 2020 FE 501s CHASSIS

Тормозной цилиндр задний

#

oem код

название

цена

1

Foot brake cylinder cpl.

Foot brake cylinder cpl.

10

FOOT BRAKE LEVER CPL.

FOOT BRAKE LEVER CPL.

11

STEP BRAKE LEVER 16

STEP BRAKE LEVER 16

12

SCREW TORX M5X10

SCREW TORX M5X10

13

RETURN SPRING F. BRAKE LEVER

RETURN SPRING F. BRAKE LEVER

14

HH collar screw M6x20 TX30

HH collar screw M6x20 TX30

15

PUSH ROD L=28MM 03

PUSH ROD L=28MM 03

16

hex nut DIN 934 M6

hex nut DIN 934 M6

17

SWIVEL HEAD KA6 03

SWIVEL HEAD KA6 03

18

AH-COLLAR SCREW M10X35 ISA45

AH-COLLAR SCREW M10X35 ISA45

19

SPECIAL SCREW M8X26 WS=10

SPECIAL SCREW M8X26 WS=10

2

Piston kit

Piston kit

20

flanged nut M8 WS10

flanged nut M8 WS10

21

deep groove ball bearing SKF 6000-2RS1

deep groove ball bearing SKF 6000-2RS1

22

COLLAR NUT M10 WS=13

COLLAR NUT M10 WS=13

3

Cover brake cylinder cpl.

Cover brake cylinder cpl.

35

HH collar screw M6x12 TX30

HH collar screw M6x12 TX30

4

Banjo bolt cpl.

Banjo bolt cpl.

5

COPPER GASKET

COPPER GASKET

6

Brake hose rear

Brake hose rear

99

BRAKE FLUID DOT5.1 0,25L

BRAKE FLUID DOT5.1 0,25L
