Рама

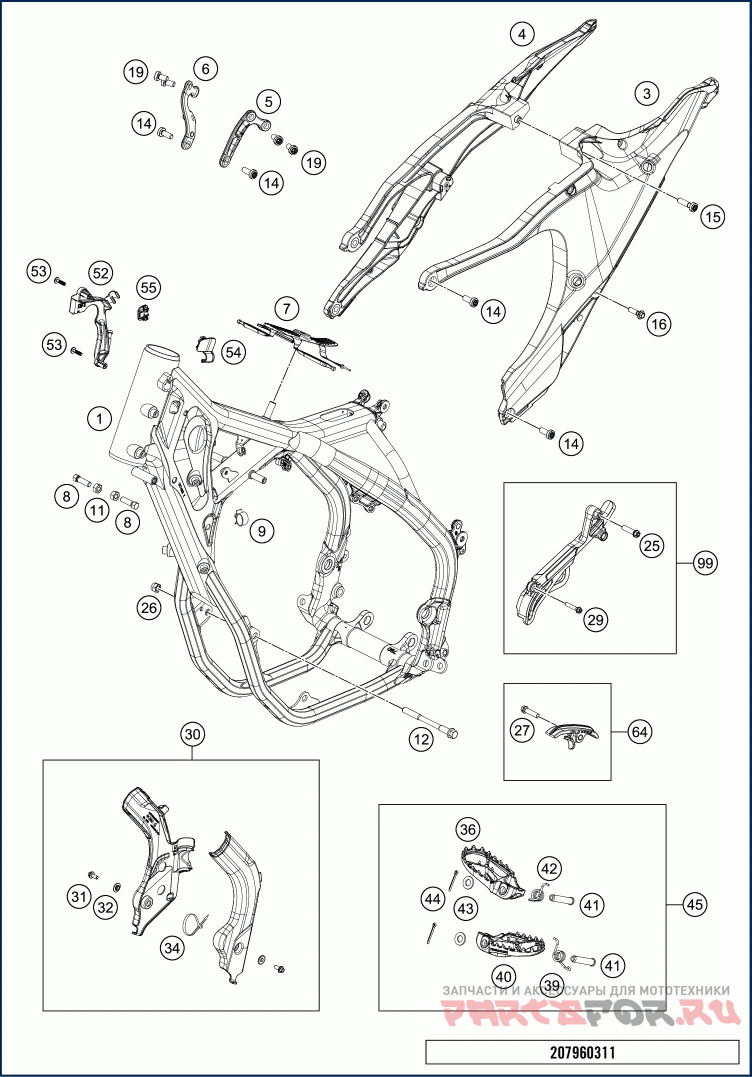

Husqvarna 2020 FE 501 CHASSIS

Husqvarna
#oem кодцена
1
2660310100069
Frame 266T2
11
0934080003
HEXAGON NUT DIN0934-M 8
12
59003013000
ENGINEBRAC.SCREW M10X123 WS=13
14
0035080206S
SHCS M8x20 TX45
15
0035080306S
AH-COLLAR SCREW M8X30 ISA45
16
0016070253
PLASTIC SCREW K7X25 PT1447
19
0035080156S
AH-COLLAR SCREW M8X15 TORX45
25
0025080356
HH collar screw M8x35 TX40
26
54310086100
SELF LOCKING NUT M10 CU WS=14
27
0025080306
HH collar screw M8x30
29
0025060356
HH collar screw M6x35 TX30
3
25103002144
Subframe left
30
2510309400030
Frame protection set
31
0014050123
HH COLLAR SCREW M 5X12 WS=6
32
54803092060
BUSH F . FRAME PROTECTION 03
34
44011076140
CABLE TIE 140/2,5MM BLACK
34
44011076305
CABLE TIE 300/4,8MM BLACK
36
79603041000
Foot grid right EXC 2017
39
79003044000
FOOTREST SPRING R/S 2016
4
25103002244
Subframe right
40
79603040000
Foot grid left EXC 2017
41
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
42
79003045000
FOOTREST SPRING L/S 2016
43
0125100003
washer DIN 125 A 10.5
44
0094032253
PIN DIN0094-3,2X25 STEEL
45
79603040033
Footrest-Set
5
7970311300001S
Engine brace left
52
79711013000
Cable holder throttle cable guide
53
0081050181
SCREW FOR PLASTIC K50X18 T20
54
79111014010
Cable holder
55
79111013010
Cover control head sheet
6
7970311400001S
Engine brace right
64
79003053010
CHAIN SLIDING KIT BELOW CPL.16
7
79607012000
TANK REST RUBBER
8
59001037000
SPECIAL SCREW M8X26 WS=10
9
58111076000
CABLE SUPPORT KHS NR.150-47610
99
79403096010
SPROCKET COVER KIT
