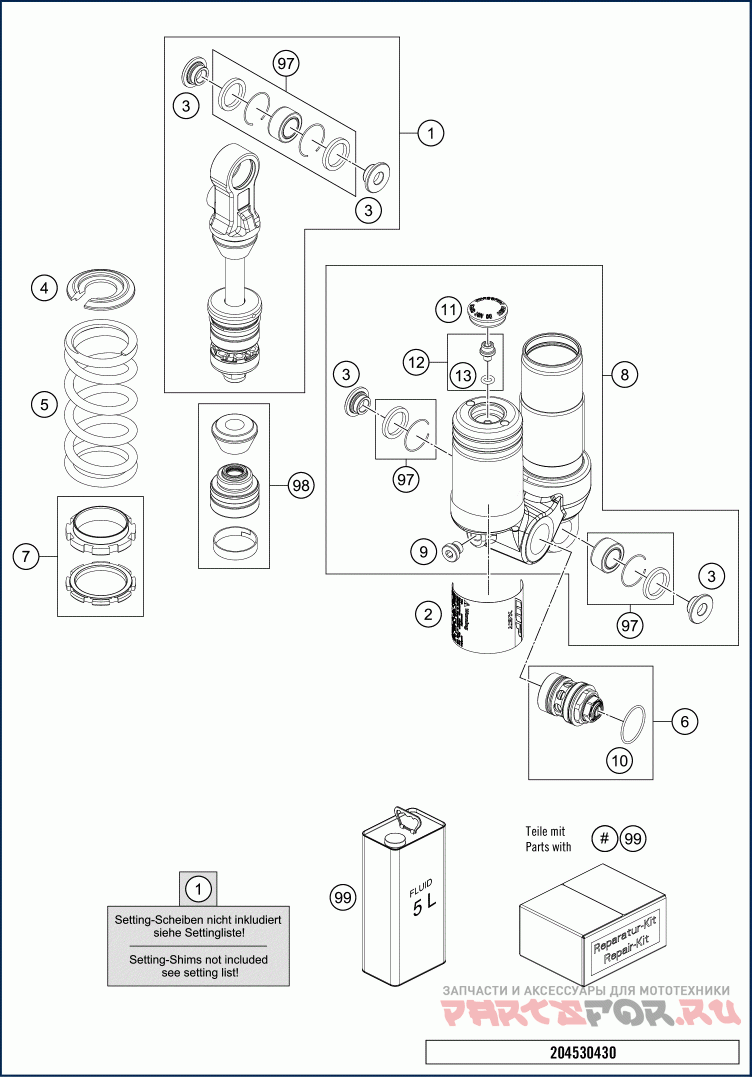

Амортизатор в разборе для мотоциклов Husqvarna 2020 EE 5 CHASSIS (2020)

Москва и регионы России

Амортизатор в разборе

Husqvarna 2020 EE 5 CHASSIS

Амортизатор в разборе

#

oem код

название

цена

1

bottom part cpl. Setting-Shims not included

bottom part cpl. Setting-Shims not included

10

O-ring 27x1,5 Viton70 green ISO 3601-3S

O-ring 27x1,5 Viton70 green ISO 3601-3S

11

Rubber cap do not open 22x5,5 NBR

Rubber cap do not open 22x5,5 NBR

12

PLUG SCREW M5X6 CPL.

PLUG SCREW M5X6 CPL.

13

O-ring 5,28x1,78 NBR70 black

O-ring 5,28x1,78 NBR70 black

2

sticker XACT 90x40

sticker XACT 90x40

3

Distance bush 10x15/18/24,5x9,5

Distance bush 10x15/18/24,5x9,5

4

Spring retainer 27x57x2

Spring retainer 27x57x2

5

SHOCK SPRING 30N/MM - 130MM WH

SHOCK SPRING 30N/MM - 130MM WH

5

SHOCK SPRING 35N/MM - 130MM WH

SHOCK SPRING 35N/MM - 130MM WH

5

SHOCK SPRING 40N/MM - 130MM WH

SHOCK SPRING 40N/MM - 130MM WH

6

compression cpl.

compression cpl.

7

ADJUSTING NUT CPL.

ADJUSTING NUT CPL.

8

Top part cmpl.

Top part cmpl.

9

HS cylinder-head screw R1/8 l8

HS cylinder-head screw R1/8 l8

97

Ball joint bearing kit top 12mm

Ball joint bearing kit top 12mm

98

REP . KIT MONOSHOCK MINI 17

REP . KIT MONOSHOCK MINI 17

99

SHOCK ABSORBER FLUID 5 LT

SHOCK ABSORBER FLUID 5 LT
