Глушитель

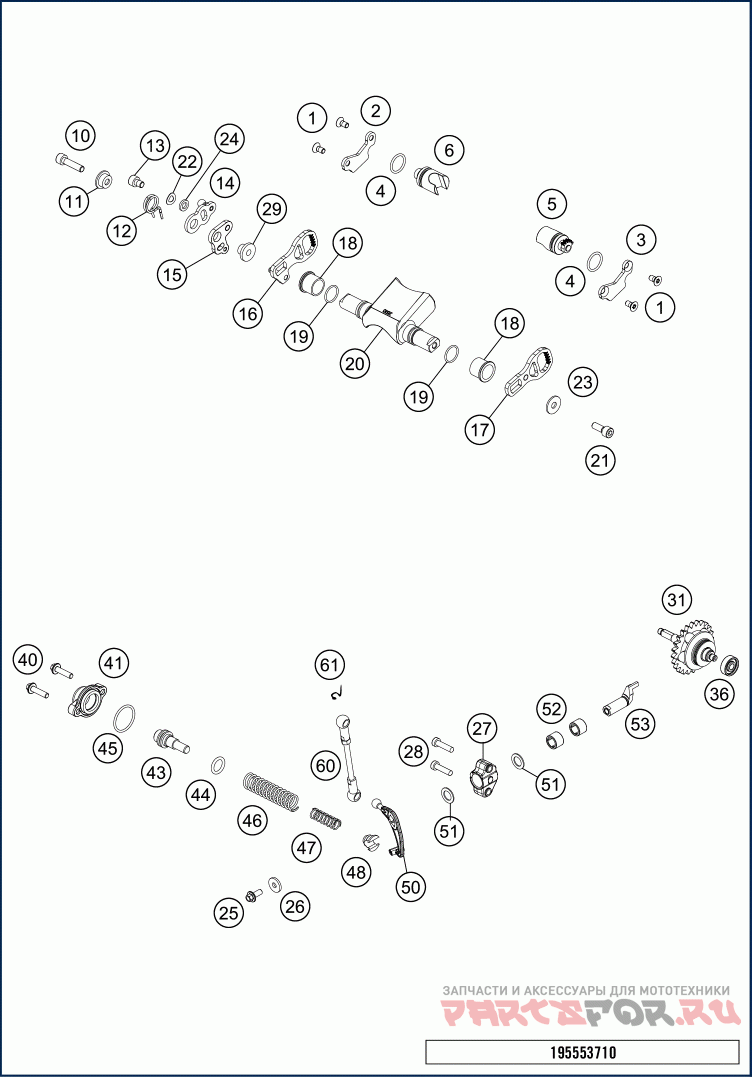

Husqvarna 2019 TX 300 ENGINE

Husqvarna
#oem кодцена
1
0019050106S
hex lobe countersunc screw M5x10 - 10.9
2
54837062000
RET AINING PLATE R/S 07
3
54837063000
RET AINING PLATE L/S 07
4
0770160021
O-RING 16,00X2,00 VITON
5
55437061044
CONTR.VAL VE 250 LEFT KPL.
6
55437062044
CONTR.VAL VE 250 RIGHT KPL.
10*
014580060256
CYL. SCREW DIN14580 M 6X25
11
54637067000
SPRING SLEEVE
12*
55537066000
Overload spring
13*
014580060106
Cap head screw M6x10
14*
55537065000
Adjusting lever cmpl.
15*
55537080000
Post mount cmpl.
16*
55537064044
Gear segment right cmpl.
17
54837064150
GEAR SEGMENT L/S 250 07
18*
50437023100
exaust flap bushing
19
0770150151
O-RING 15,00X1,50 VITON
20*
55537020000
Control hatch 250
21*
014580060166
SHCS ISO 14580 M6x16
22*
0137060003
spring washer DIN 137 B - 6
23*
0021060003
WASHER DIN9021-A 6,4
24*
54637056100
WASHER 6,5X11X2
25
0014050123
HH COLLAR SCREW M 5X12 WS=6
26
0349000050
WASHER DIN7349-5X15 X2
27
55437058000
BEARING SUPPORT
28*
0025050256S
HH COLLAR SCREW M5X25 ISA30
29*
55537068000
Bearing sleeve
31*
55537050244
Centrifugal force governor cmpl.
36
54637098100
BALL BEARING 626LLBC3/5K
40
0014050203
HH COLLAR SCREW M 5X20 WS=6
43
54837075000
SPRING GUIDE 250/300
44
0770021120
O-RING 12,37X2,62 NBR70
45
0770240020
O-RING 24,00X2,00 NBR70
46
54837069000
ADJUST . SPRING 2003
47
54837072000
AUXILIARY SPRING SOFT , RED
47
54637072300
AUXILIARY SPRING MID., YELLOW
47
54837072100
AUXILIARY SPRING HARD, GREEN
48
54637071200
SPRING INSERT
50
47237056000
angle lever
51
0988101610
SHIM WASHER DIN988 10X16X1
52
0618101410
needle sleeve HK 1010 10x14x10
53
55437057100
ADJUSTING LEVER 250/300
60*
55537095044
Linkage cmpl.
61
50237195055
SECURING DIN-71805-S -8
