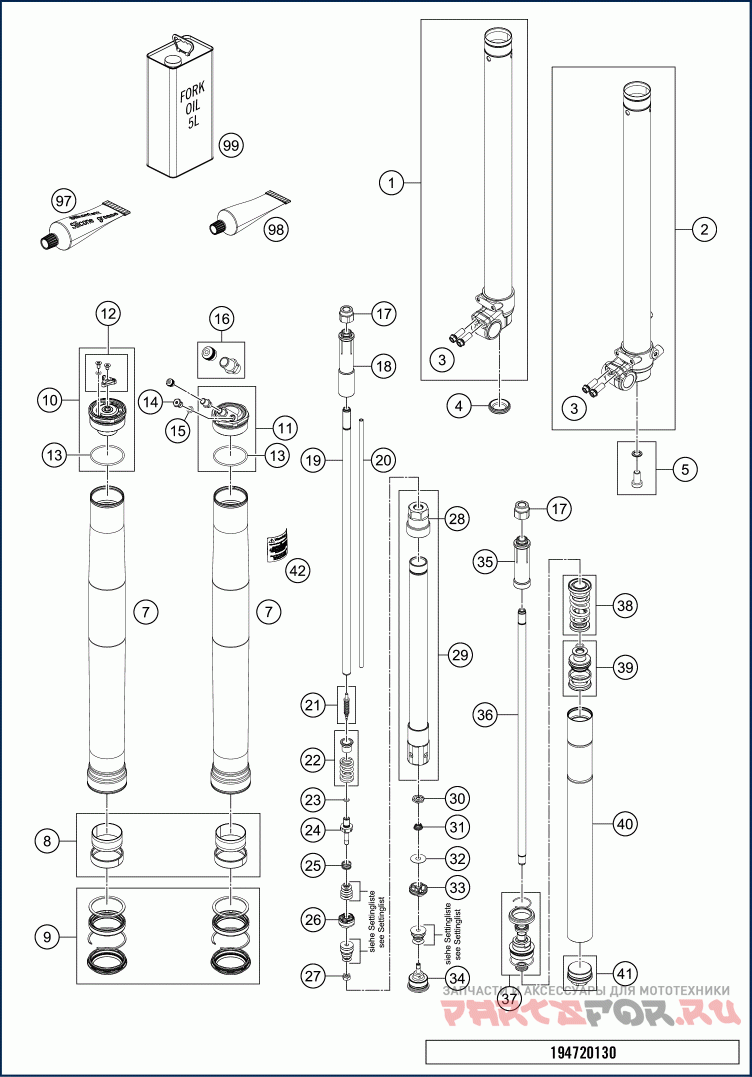

Передняя вилка

Husqvarna 2019 TC 85 17_14 CHASSIS

Husqvarna
#oem кодцена
1
43570818S1
Axle clamp right + tube 85SX cpl.
2
43570817S1
Axle clamp left + tube 85SX cpl.
3
0025080206
HH collar screw M8x20 TX40
4
48600141
RUBBER CAP D=35MM
5
00501020S1
AH SCREW M10X20 SET
7
43570614E
OUTER TUBE L510 D49/53
8
R14042
GUIDE BUSHING SET
9
R516
Gasket Set 43mm HD+ red
10
43570807S
Screw cap M46x1,5 cpl.
11
43570814S
Screw cap M46x1,5 ?49 cpl.
12
RP10016
Adjuster Kit rebound
13
43570023
O-RING NBR 41X2
14
48601495
PLUG SCREW M8X1 BN44
15
48600044
O-RING NBR 6X1,5
16
48601494S
VALVE M8X1 INCL. SCREW CAP
17
43570859
Counternut M12x1 HEX22
18
43570856
Stop l=115
20
48601812
EiAdjustment tube l 445,1 D6
21
48600277S
ADJUSTING NEEDLE CPL.
22
48600578S
SPRING REBOUND + SPRING GUIDE
23
48600299
O-RING 6X1,2 NBR
24
48600576
PISTON ROD REBOUND
25
35480377
SPRING CHECK VALVE D=0,5
26*
48601817S
Kolben 6x22,7x13 Zugstufe kpl.
27
40540486
NUT M6X0,5 REBOUND
29*
48600870S7
Cartridge Rohr kpl.
30
48600163
CHECK VALVE NUT M6X0,5 D=2
31
48600202
SPRING CHECK VALVE D=0,7
32
48600061
CHECK VALVE 8X24X0,4
33*
48601934S
Kolben 6x27,3x9 Druckstufe
34
48600586E
TAP COMPRESSION CPL. 07
35
43570819
Stop l=78,5
36
48601501
SPINDEL D12 M12X1 M11,5X1
37
48601452S1
SCREW SLEEVE AIR CPL.
38
48601820S1
Rebound spring cpl.
39
43570844S
Main piston ?34 AER43
41
43570845S
Adapter M35,5x0,8 M10 cpl.
97
T14034
Fuchs grease IPR (250g)
99
48601166S1
FORK OIL SAE4 5L
