Рама для мотоциклов Husqvarna 2019 TC 250 CHASSIS (2019)

Москва и регионы России

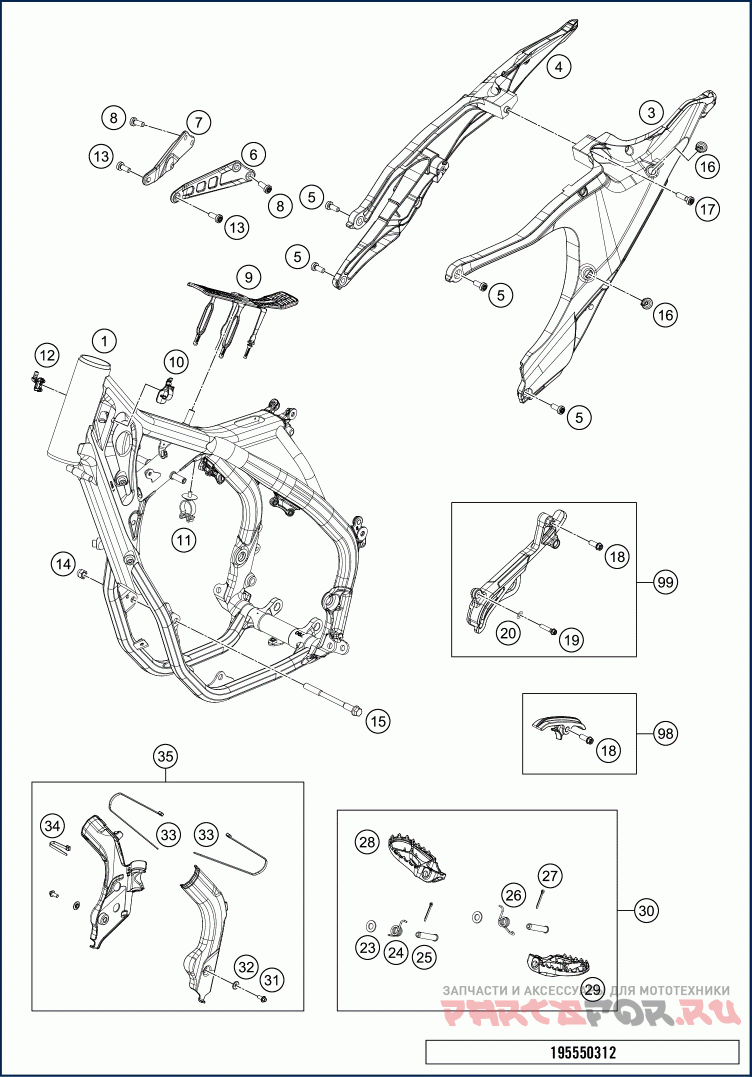

Рама

Husqvarna 2019 TC 250 CHASSIS

Рама

#

oem код

название

цена

1*

Frame 555S3 250 SX

Frame 555S3 250 SX

3*

Subframe left with Decal

Subframe left with Decal

4*

Subframe right with Decal

Subframe right with Decal

5

SHCS M8x20 TX45

SHCS M8x20 TX45

6*

Engine brace, left KTM 250 SX

Engine brace, left KTM 250 SX

7*

Engine brace, right KTM 250 SX

Engine brace, right KTM 250 SX

8

AH-COLLAR SCREW M8X15 TORX45

AH-COLLAR SCREW M8X15 TORX45

9*

TANK REST RUBBER

TANK REST RUBBER

10*

wire holder le 19

wire holder le 19

11*

CABLE SUPPORT 07

CABLE SUPPORT 07

12*

wire holder / fuel ventilation

wire holder / fuel ventilation

13

SHCS M8x20 TX45

SHCS M8x20 TX45

14

SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

15

engine brac.scr. M10x115

engine brac.scr. M10x115

16

quick release rubber grommet

quick release rubber grommet

17

AH-COLLAR SCREW M8X30 ISA45

AH-COLLAR SCREW M8X30 ISA45

18

HH collar screw M8x30 TX40

HH collar screw M8x30 TX40

19

HH collar screw M6x40 TX30

HH collar screw M6x40 TX30

20

WASHER DIN0125-A 6,4

WASHER DIN0125-A 6,4

23

washer DIN 125 A 10.5

washer DIN 125 A 10.5

24

FOOTREST SPRING R/S 2016

FOOTREST SPRING R/S 2016

25

Footpeg bolt

Footpeg bolt

26

FOOTREST SPRING L/S 2016

FOOTREST SPRING L/S 2016

27

PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

28

Foot grid right 2016

Foot grid right 2016

29

Foot grid left 2016

Foot grid left 2016

30

Footpegs left+right cpl. 16

Footpegs left+right cpl. 16

31*

HH COLLAR SCREW M 5X12 WS=6

HH COLLAR SCREW M 5X12 WS=6

32

BUSH F . FRAME PROTECTION 03

BUSH F . FRAME PROTECTION 03

33

CABLE TIE 300/4,8MM BLACK

CABLE TIE 300/4,8MM BLACK

34

CABLE TIE 200MM

CABLE TIE 200MM

35*

Frame protection set, black

Frame protection set, black

98

SPROCKET COVER KIT

SPROCKET COVER KIT

99

CHAIN SLIDING KIT BELOW CPL.16

CHAIN SLIDING KIT BELOW CPL.16
