Рама

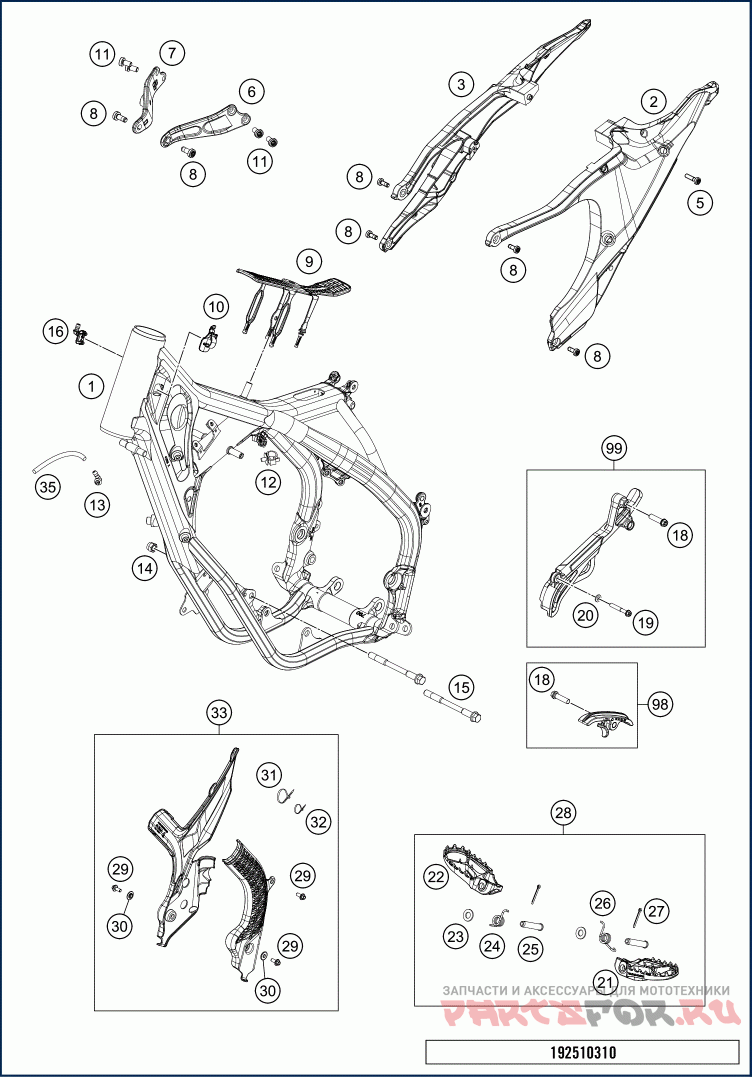

Husqvarna 2019 TC 125 CHASSIS

Рама

#

oem код

название

цена

1*

Frame 505S3

Frame 505S3

2*

Subframe left

Subframe left

3*

Subframe right

Subframe right

5*

AH-COLLAR SCREW M8X30 ISA45

AH-COLLAR SCREW M8X30 ISA45

6*

Engine brace, left

Engine brace, left

7*

Engine brace, right

Engine brace, right

8

SHCS M8x20 TX45

SHCS M8x20 TX45

9*

TANK REST RUBBER

TANK REST RUBBER

10*

wire holder le 19

wire holder le 19

11*

AH-COLLAR SCREW M8X15 TORX45

AH-COLLAR SCREW M8X15 TORX45

12

CABLE SUPPORT KHS NR.150-47610

CABLE SUPPORT KHS NR.150-47610

14

SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

15

engine brac.scr. M10x115

engine brac.scr. M10x115

16*

wire holder / fuel ventilation

wire holder / fuel ventilation

18

HH collar screw M8x30 TX40

HH collar screw M8x30 TX40

19

HH collar screw M6x40 TX30

HH collar screw M6x40 TX30

20

WASHER DIN0125-A 6,4

WASHER DIN0125-A 6,4

21

FOOTREST L/S 2016

FOOTREST L/S 2016

22

FOOTREST R/S 2016

FOOTREST R/S 2016

23

washer DIN 125 A 10.5

washer DIN 125 A 10.5

24

FOOTREST SPRING R/S 2016

FOOTREST SPRING R/S 2016

25

PIN FOR FOOT PED 51.5X9.8 MM

PIN FOR FOOT PED 51.5X9.8 MM

26

FOOTREST SPRING L/S 2016

FOOTREST SPRING L/S 2016

27

PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

28

FOOT PEGS SET CPL. 2016

FOOT PEGS SET CPL. 2016

29

HH COLLAR SCREW M 5X12 WS=6

HH COLLAR SCREW M 5X12 WS=6

30

BUSH F . FRAME PROTECTION 03

BUSH F . FRAME PROTECTION 03

31

CABLE TIE 300/4,8MM BLACK

CABLE TIE 300/4,8MM BLACK

32

CABLE TIE 140/2,5MM BLACK

CABLE TIE 140/2,5MM BLACK

33*

Frame protection set, black

Frame protection set, black

35

PVC-HOSE 6X9

PVC-HOSE 6X9

98

CHAIN SLIDING KIT BELOW CPL.16

CHAIN SLIDING KIT BELOW CPL.16

99

SPROCKET COVER KIT

SPROCKET COVER KIT
