Рама

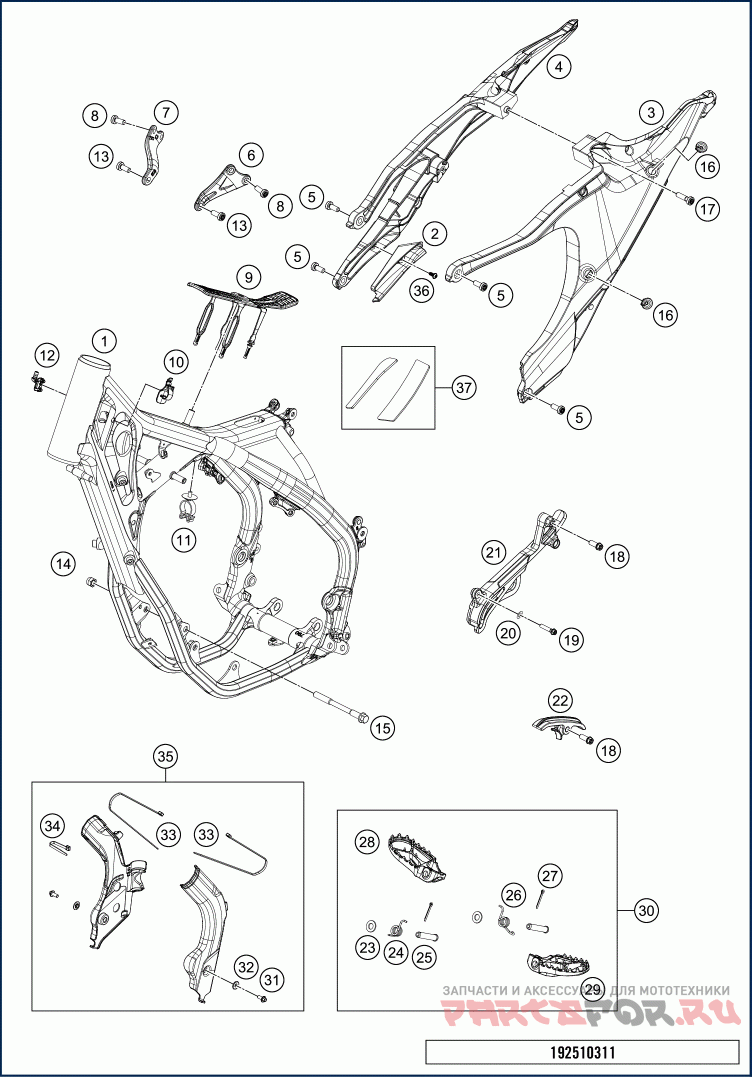

Husqvarna 2019 FX 350 CHASSIS

Husqvarna
#oem кодцена
1*
7910300110069
Frame 791S4 250/350 XC-F
2
25105090000
heat protection subframe
3*
2510300211033A
Subframe left with Decal
4*
2510300212033A
Subframe right with Decal
5
0035080206S
SHCS M8x20 TX45
6*
7910301300001S
Engine brace, left
7*
7910301400001S
Engine brace, right
8*
0035080156S
AH-COLLAR SCREW M8X15 TORX45
9
79607012000
TANK REST RUBBER
10
79111093000
wire holder le 19
11
61111041000
CABLE SUPPORT 07
12*
79107013010
wire holder / fuel ventilation
13
0035080206S
SHCS M8x20 TX45
14
54310086100
SELF LOCKING NUT M10 CU WS=14
15
77203014000
engine brac.scr. M10x115
16
47106003160
quick release rubber grommet
17
0035080306S
AH-COLLAR SCREW M8X30 ISA45
18
0025080306
HH collar screw M8x30 TX40
19*
0025060406
HH collar screw M6x40 TX30
20
0125060003
WASHER DIN0125-A 6,4
21
79003096000
ENGINE SPROCKET COVER 250/350
22
79003053000
CHAIN SLIDER LOWER PAR T CPL.
23
0125100003
washer DIN 125 A 10.5
24
79003044000
FOOTREST SPRING R/S 2016
25
54803044000
Footpeg bolt
26
79003045000
FOOTREST SPRING L/S 2016
27
0094032253
PIN DIN0094-3,2X25 STEEL
28
79003041000
Foot grid right 2016
29
79003040000
Foot grid left 2016
30
79003040033
Footpegs left+right cpl. 16
31
0014050123
HH COLLAR SCREW M 5X12 WS=6
32
54803092060
BUSH F . FRAME PROTECTION 03
33
44011076305
CABLE TIE 300/4,8MM BLACK
34
76311093200
CABLE TIE 200MM
35*
2510309400033
Frame protection set, black
36
0081050121
EJOT PT screw K50x12
37*
25105090044
Heat Protector set
