Глушитель

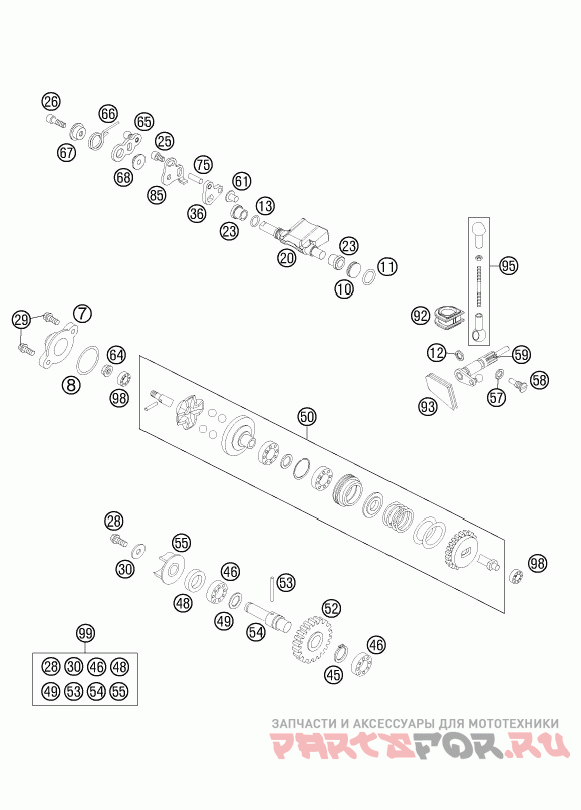

Husqvarna TC 85 ENGINE

Husqvarna
#oem кодцена
7
54637070200
CLOSING COVER 2003
8
0770020200
O-RING 21,95X1,78 NBR
10
47037010000
CLOSING COVER 85 SX 2003
11
0770120020
O-RING 12,00X2,00 NBR 70
12
54632090000
Сальник 12x16x3
13
0770008015
O-RING 8,00X1,5
20
47137020000
CONTROL FLAP
23
47037023000
BEARING SLEEVE 85 SX 2003
25
0912050063
AH SCREW DIN 912 M 5X6
26
0912050163
AH SCREW DIN0912-M 5X16
28
0025050126
HH collar screw M5x12 TX30
29
0025050206
HH collar screw M5x20 TX30
30
0349000050
WASHER DIN7349-5X15X2
36
47037036000
DRIVER SHEET 85 SX 2003
45
0471100010
CIRCLIP DIN0471-10X1
46
0625006087
GROOVED BALL BEAR. 608 2RS C3
48
0760082472
SHAFT SEAL RING 8X24X7 A DUO
49
54334015000
WASHER 10X14X0,5 STEEL
50
47037050044
CENTRIFUGAL TIMER CPL. 03
52
47035054026
WATER PUMP GEAR 2003
53
47035058000
PIN 2X22
54
47035054000
WATER PUMP SHAFT 85 SX 2003
55
47035055000
WATER PUMP WHEEL 85 SX 2003
57
0603040801
COPPER GASKET DIN7603- A4X8X1
58
47037058000
LOCK SCREW CONTROL SHAFT 03
59
47037057100
CONTROL SHAFT 85 SX 06
61
47035061000
SCREW M6X8
64
56509064100
SELF LOCKING NUT M6 10.9
65
47037065000
CONTROL LEVER 85 SX 2003
66
54637066000
OVERLOAD SPRING
67
47037067000
SPRING SLEEVE 85 SX 2003
68
47037068000
BEARING SLEEVE 85 SX 2003
75
0007050180
CYLINDER PIN DIN 7-5X18(M6)
85
47137086000
STOP PLATE
92
47137091000
GASKET RUBBER
93
47037093000
GASKET RUBBER BOTTOM 85 SX
95
47037095044
CONNECT. ROD CPL. 85 SX 03
98
54637098100
BALL BEARING 626LLBC3/5K
99
47035055010
WATER PUMP REP. KIT 85 SX
