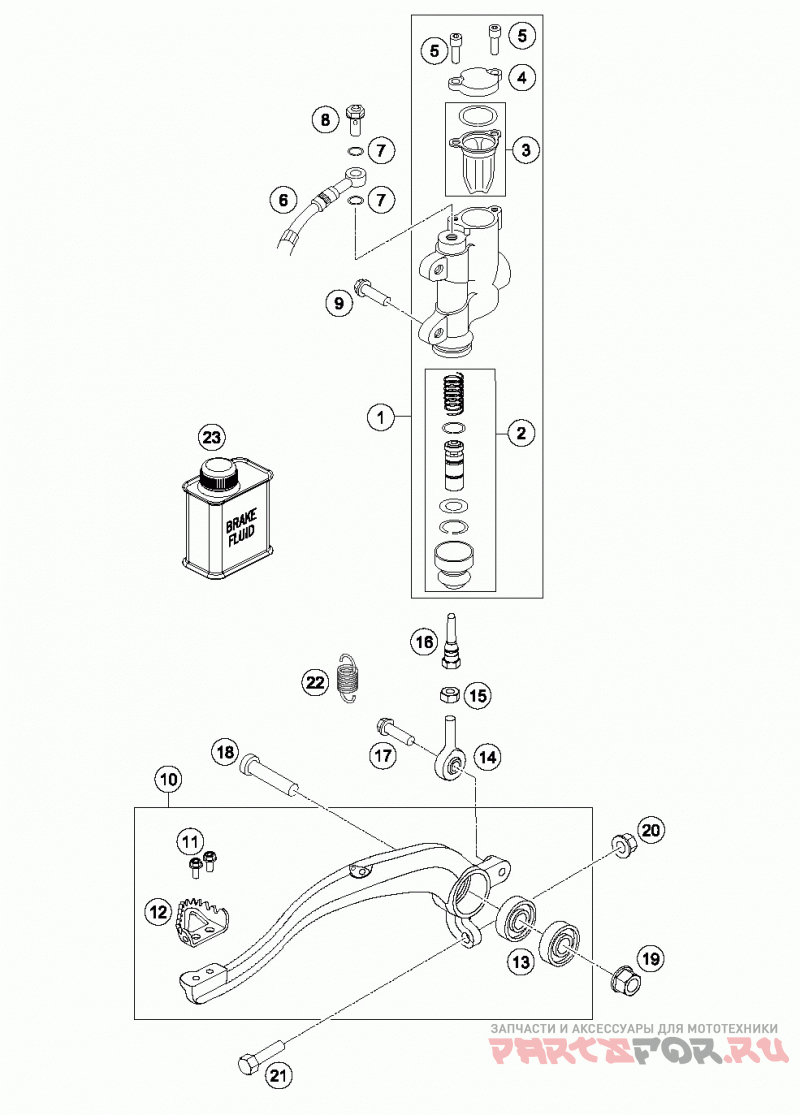

Тормозной цилиндр задний

Husqvarna TC 85 19_16 CHASSIS

Husqvarna
#oem кодцена
1
4701306030001S
FOOT BRAKE CYL. REAR CPL. D=12
2
47013061100
REP. SET PISTON REAR D=12 2004
3
47013063000
GASKET CYLINDER COVER REAR 03
4
47013062000
CYLINDER COVER REAR 85 SX 03
5
0912040103
AH.SCREW DIN0912-M 4X10
6
47013070000
BRAKE HOSE REAR 85 SX 03
7
0770080019
O-RING 8,00X1,00 FORMULA
8
47013025000
HOLLOW SCREW BRAKE CYLINDER 03
9
0025060126
HH collar screw M6x12 TX30
10
47013050044
FOOT BRAKE LEVER CPL. 85 SX 03
11
0025050126
HH collar screw M5x12 TX30
12
54813051000
STEP PLATE FOR BRAKE LEVER
13
0625060002
deep groove ball bearing SKF 6000-2RS1
14
54813055100
Joint head CMP6
15
0934060003
hex nut DIN 934 M6
16
47013056100
PRESSURE ROD 85 SX 06
17
0025060206
HH collar screw M6x20 TX30
18
0032100406S
AH-COLLAR SCREW M10X40 ISA45
19
54630044000
COLLAR NUT M10 WS=13
20
46030045000
flanged nut M8 WS10
21
59001037000
SPECIAL SCREW M8X26 WS=10
22*
54603062100
RETURN SPRING FOR BRAKE LEVER
23
00062030000
BRAKE FLUID DOT5.1 0,25L
