Электрика

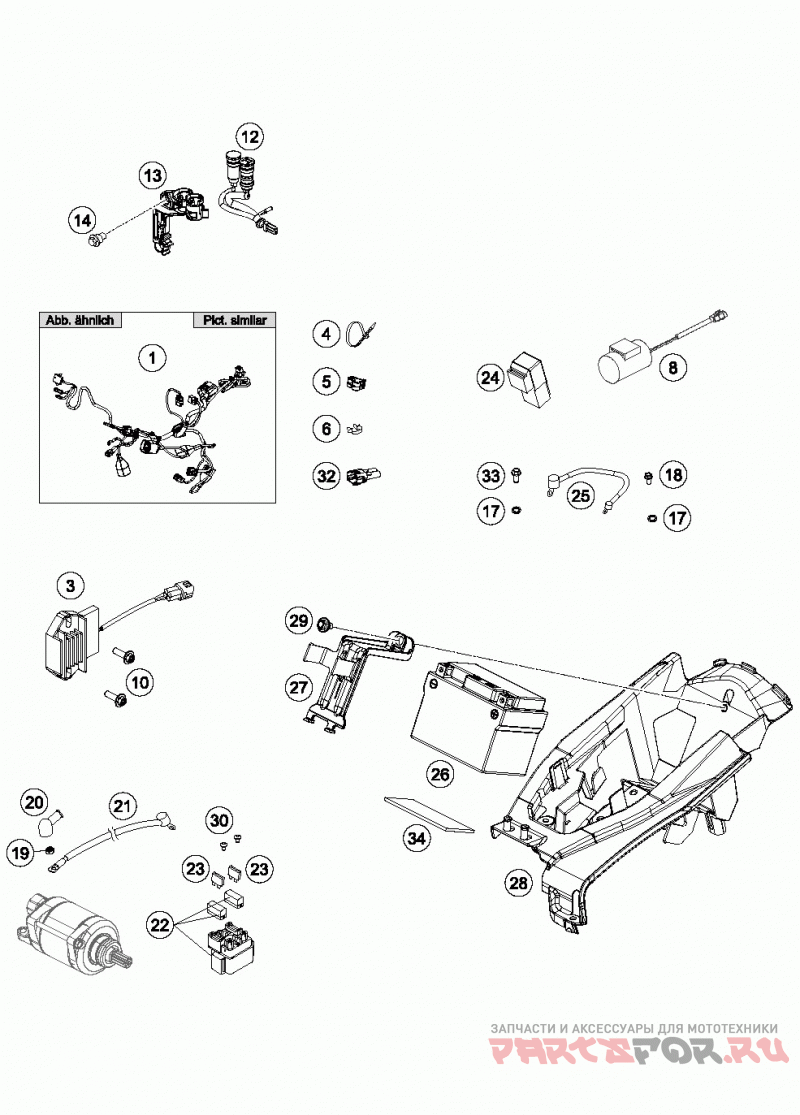

Husqvarna FX 350 CHASSIS

Husqvarna
#oem кодцена
1
79211075300
MAIN WIRING HARNESS 2017
3
77211034000
VOLTAGE REGULATOR 09
4
44011076140
CABLE TIE 140/2,5MM BLACK
4
44011076200
CABLE TIE 200/3,6MM BLACK
4
44011076305
CABLE TIE 300/4,8MM BLACK
5
83013026000
CABLE GUIDE
6
58111076000
CABLE SUPPORT KHS NR.150-47610
8
77711035000
CONDENSATOR
10
0024060206
HH collar screw M6x20 TX30
12
77714081000
INDICATOR LIGHT EFI+RES CPL.14
13
77214098100
SUPPORT INDICATOR LIGHT XC
14
59001092050
SPECIAL SCREW M6X12,5 WS=8
17
58411098100
CONTACT WASHER M6 VSV-K6
18
0009050106
EJOT SPIRAL SCREW SF M5X10-K
19
0985060003
SELF LOCK. NUT DIN0985-M 6
20
77240099000
PROTECTION CAP F. STARTER ENG.
23
58011109110
FUSE 10 A 2000
24
61111057000
RELAY CM1A-R-12V-H80 07
26
79111053000
battery 12V/24Wh
27
79011056100
BATTERY BOX SUPPORT
28
25011055100
BATTERY BOX
29
59001092050
SPECIAL SCREW M6X12,5 WS=8
30
0902060083
AH OVAL SCREW ISO 7380 M 6X8
32
69011040000
END PLUG CAN-BUS 08
33
0025050126
HH collar screw M5x12 TX30
34
59003001099
METAMOLL 90X45X3MM 03
